D-Pillar Trim Panel - Installation

INSTALLATION

Compass

Right Side

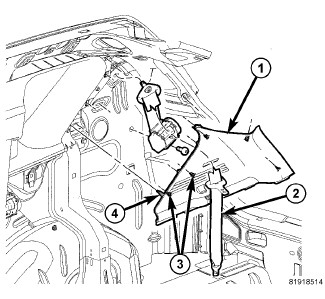

1. Pull the seat belt through the hole in the trim (1) and position the trim onto the body while inserting the alignment pin (4) into the C-pillar trim.
2. Seat the retaining clips (3) fully.





3. Access and buckle the second row center seat belt lower anchor latch plate (1) to the unique, keyed lower anchor buckle (2).

Left Side





1. position the trim (1) onto the body while inserting the alignment pin (3) into the C-pillar trim.
2. Seat the retaining clips (2) fully.

Patriot

Right Side

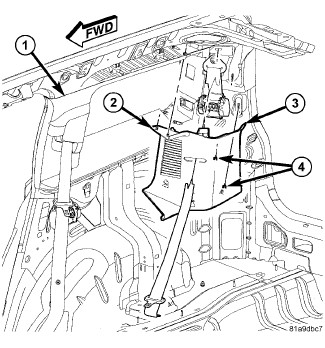

1. Pull the seat belt through the hole in the trim and position the trim onto the body while inserting the alignment pin (2) into the C-pillar trim (1).
2. Seat the retaining clips (4) fully.

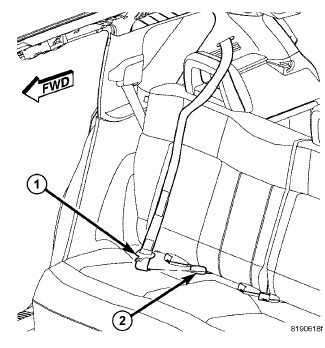

3. Access and buckle the second row center seat belt lower anchor latch plate (1) to the unique, keyed lower anchor buckle (2).

Left Side

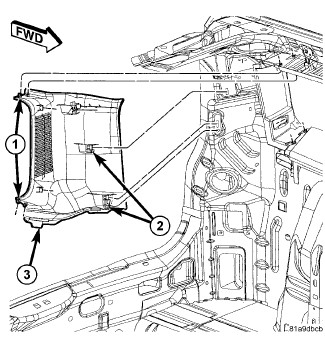

1. position the trim (3) onto the body while inserting the alignment pin (1) into the C-pillar trim.
2. Seat the retaining clips (2) fully.

Compass and Patriot





1. Install the quarter trim panel (2), Quarter Trim Panel - Installation.
