Left Front Fender: Removal

  1. Disconnect the negative terminal on the battery. (Refer to ELECTRICAL/BATTERY SYSTEM/CABLES - REMOVAL) .
  2. Remove the windshield washer reservoir.
  3. Remove horns. (Refer to ELECTRICAL/HORN/HORN - REMOVAL) .
  4. Remove EVAP canister.
  5. Remove the bolts attaching the ABS Hydraulic Control Unit (HCU) to the support tray.
  6. Secure the HCU.
  7. Remove the HCU tray.
  8. Disengage the front end lighting wire harness retainers on the fender.
  9. Disengage the headlamp wire connector.
  10. Route the fog lamp (if equipped), park lamp and side marker wire harness through the access hole in the fender well.
  11. Remove the bolts attaching the fender to the cowl. See Fig 1.

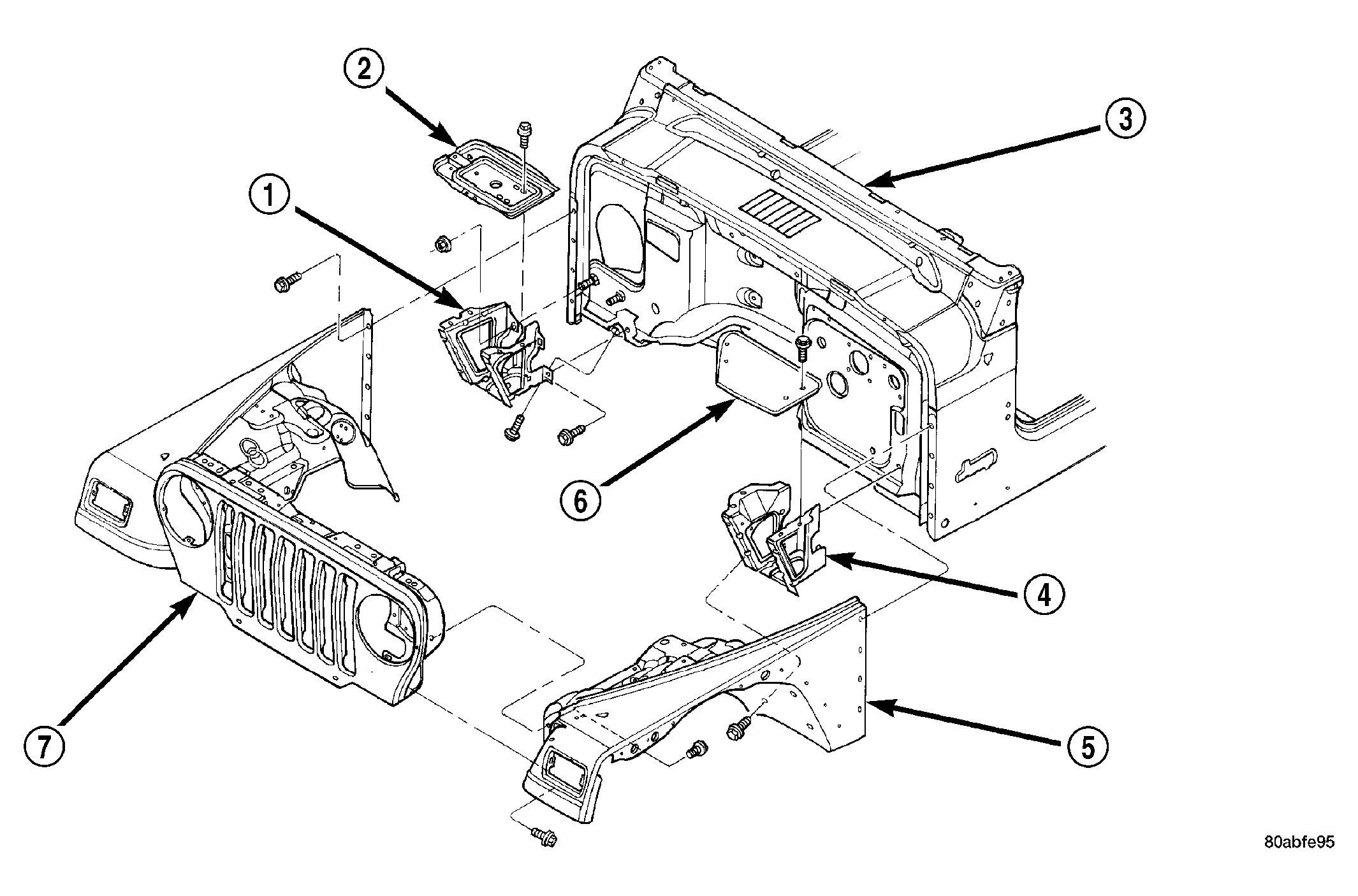

    Fig 1: Front Fender
    GC0030594Courtesy of DAIMLERCHRYSLER CORP.
    1 - REINFORCEMENT
    2 - BATTERY TRAY
    3 - BODY
    4 - REINFORCEMENT
    5 - FENDER
    6 - TRAY
    7 - RADIATOR GRILLE PANEL
  12. Remove the bolts attaching the fender to the HCU tray reinforcement bracket.
  13. Remove the bolts attaching the fender to the grille.
  14. Separate the fender from the vehicle.
