Horn System: Horn: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Disconnect the wire harness connector from the horn. See Fig 1.

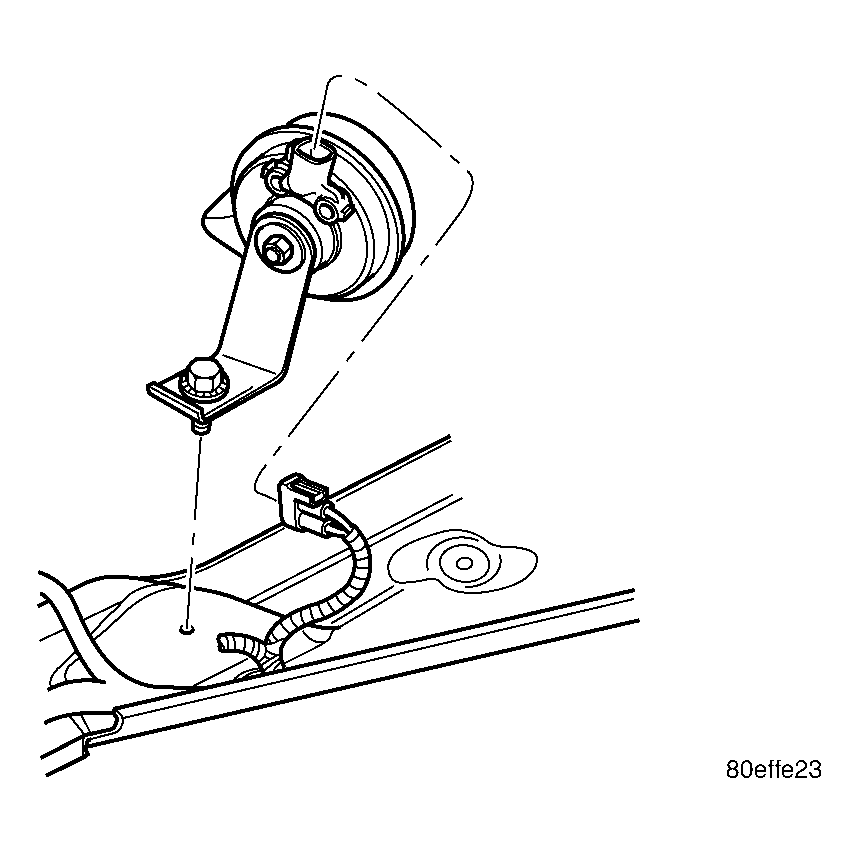

    Fig 1: Horn, Mounting Bracket & Connector
    GC0030491Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the screw that secures the horn and mounting bracket to the left front inner fender shield.
  4. Remove the horn and mounting bracket from the left front inner fender shield.
