Door - Front: Glass: Removal
Courtesy of DAIMLERCHRYSLER CORP.
- Using the regulator move the front door glass up or down as required to access the two window regulator glass clamp bolts.
- Remove the watershield from the inside of the front door. (Refer to BODY/DOOR - FRONT/WATERSHIELD - REMOVAL)
Courtesy of DAIMLERCHRYSLER CORP.

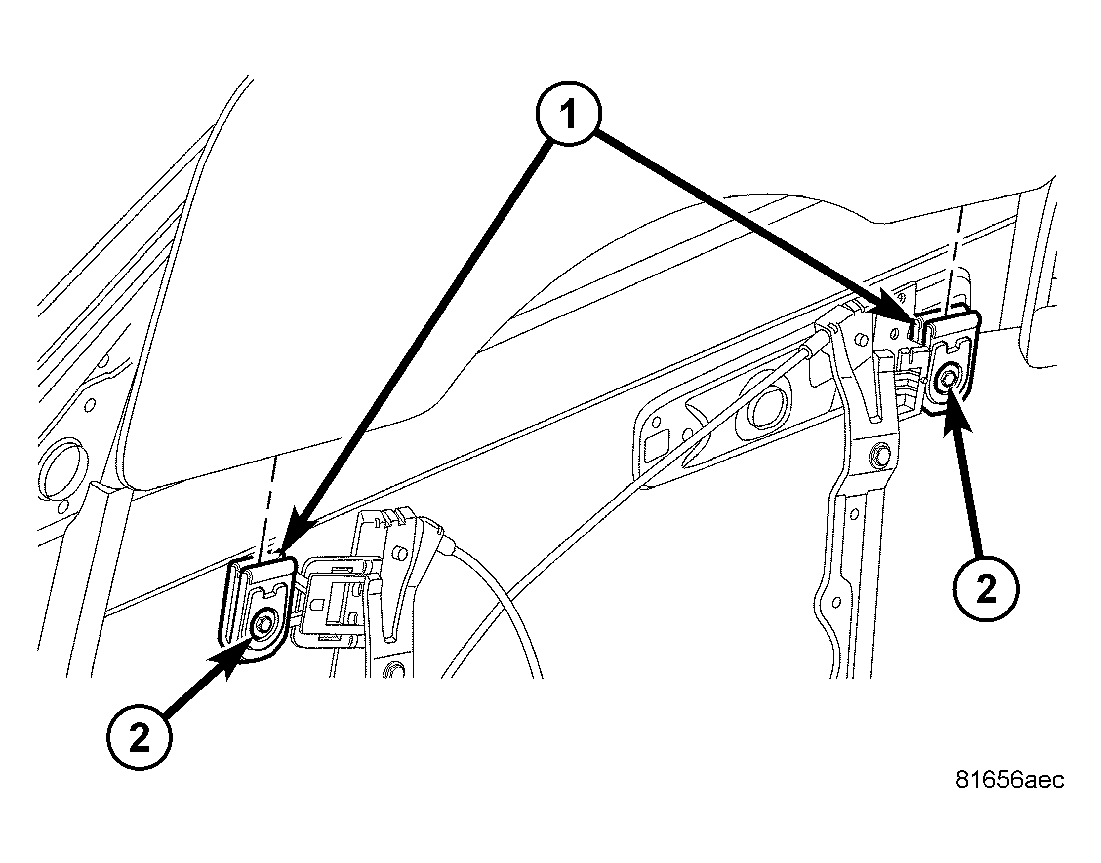

- Loosen the bolt (2) in each of the window regulator glass clamps (1) just far enough to release the door glass from the clamps. Do not loosen completely.
Courtesy of DAIMLERCHRYSLER CORP.
- Disengage the door glass from the window regulator glass clamps by lowering the regulator down as required for access to remove the door glass.
- Carefully rotate the door glass within the window opening and remove the glass from the door through the window opening.
