Door - Front: WATERSHIELD: Removal

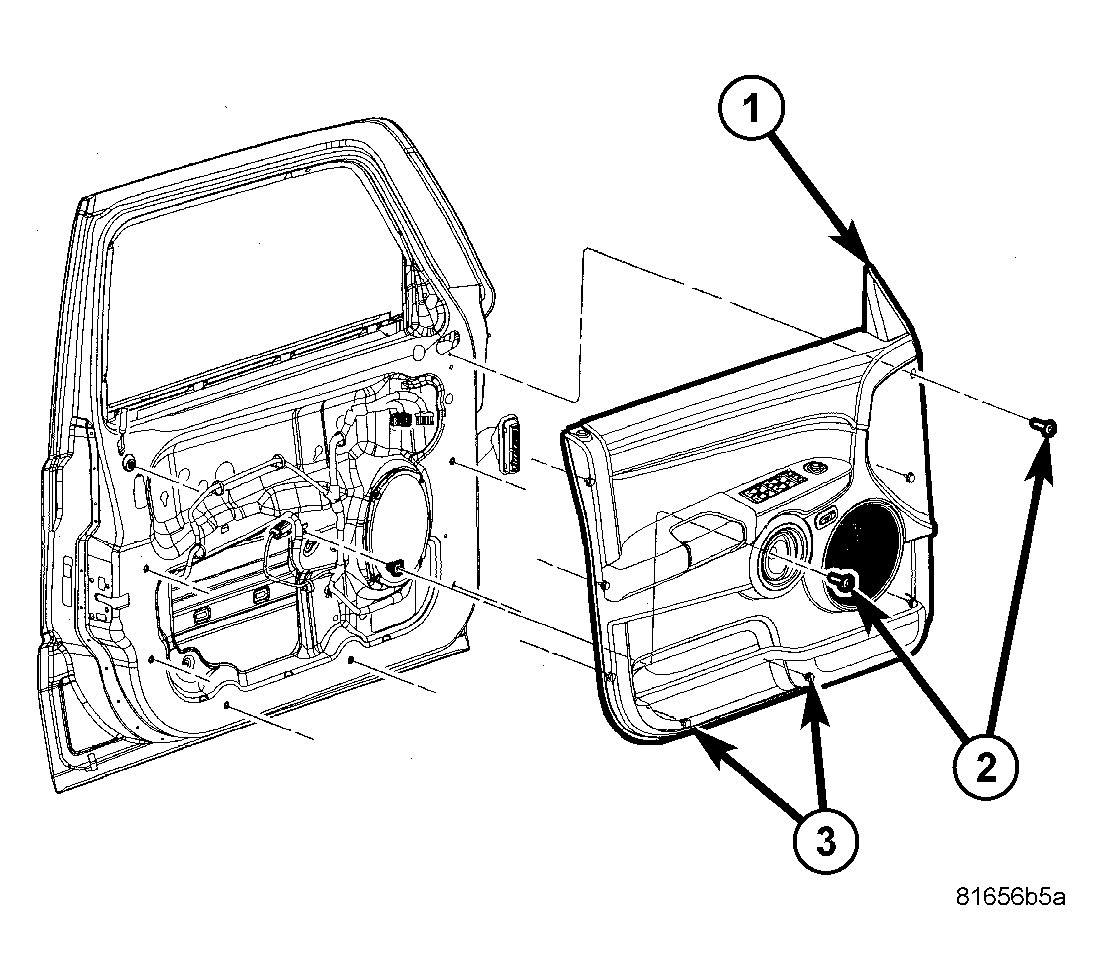

Fig 1: Remove/Install Trim Panel
GC0044911Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the trim panel (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL) .

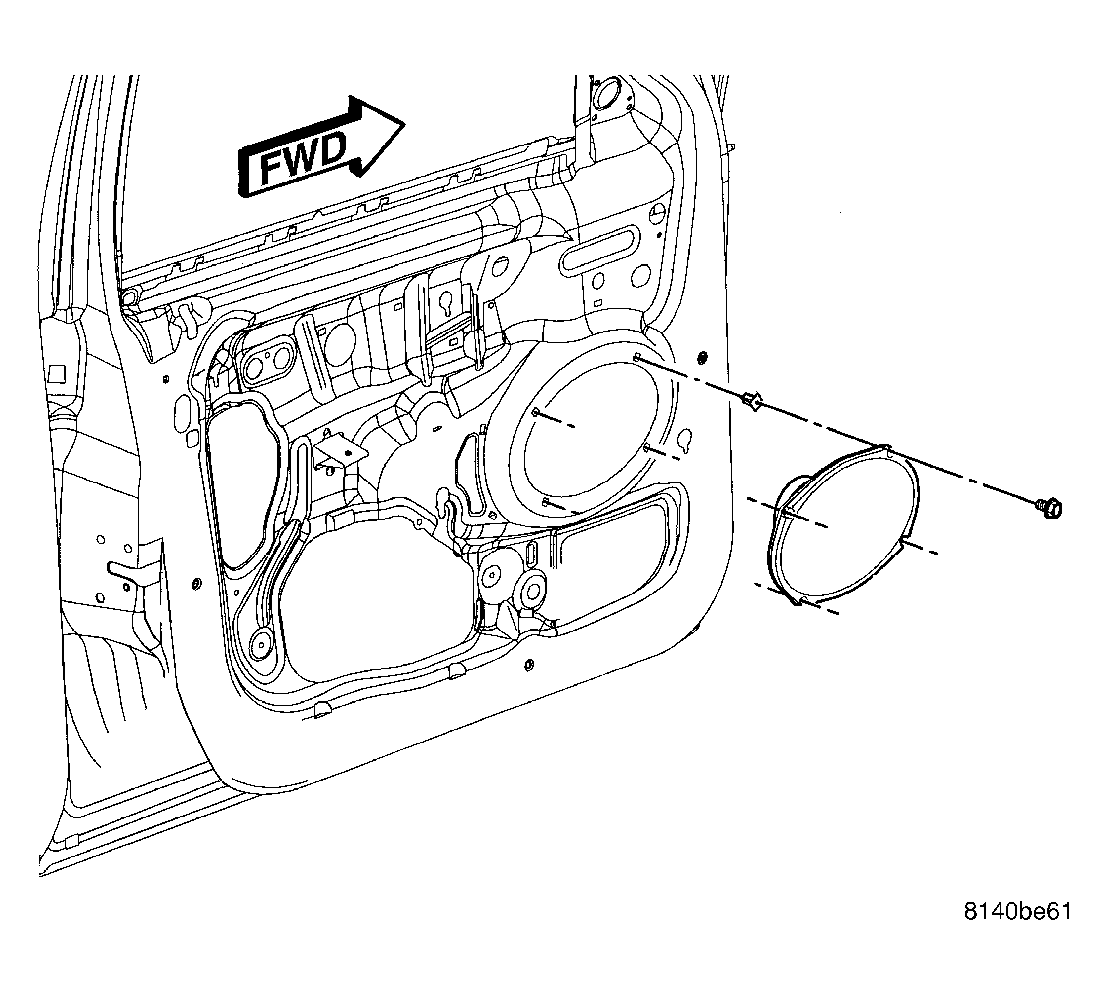

    Fig 2: Remove/Install Front Door Speaker
    GC0044914Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove the speaker mounting fasteners.

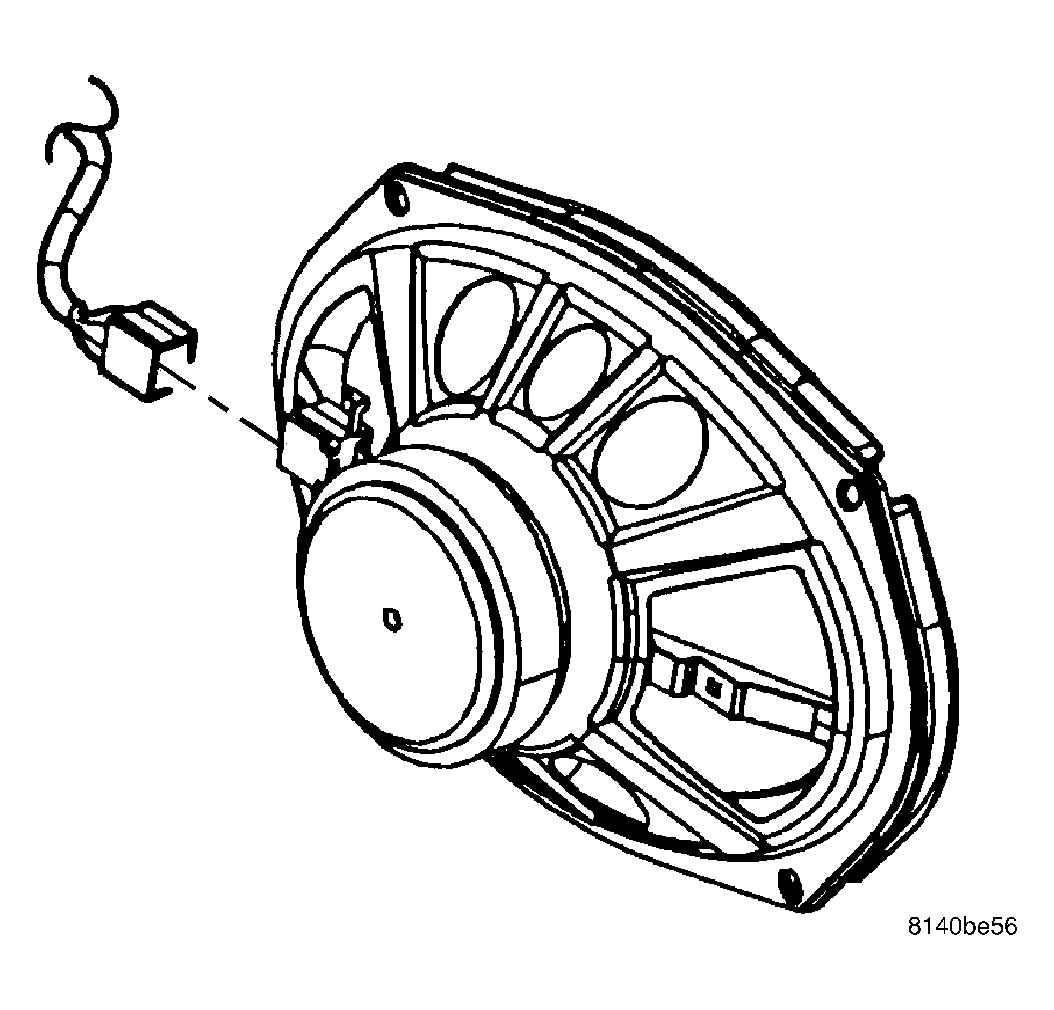

    Fig 3: Disconnect/Connect Wire Harness Connector
    GC0044915Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove speaker from door.
  4. Disconnect wire harness connector from speaker.
    Fig 4: Remove/Install Watershield
    GC0044907Courtesy of DAIMLERCHRYSLER CORP.
    CAUTION: Do not allow the watershield adhesive to become stretched, broken or contaminated with dirt or other foreign substances. If the watershield becomes contaminated or damaged, replace it. Also, if there are any materials applied to the watershield (i.e. tape, patches, etc.), replace it.
  5. Carefully remove the watershield from around the perimeter of the door.
  6. Separate the watershield from the interior handle actuator rod and the door wire harness and remove the watershield.
