Sunroof - Service Information: Channel-Drain: Removal

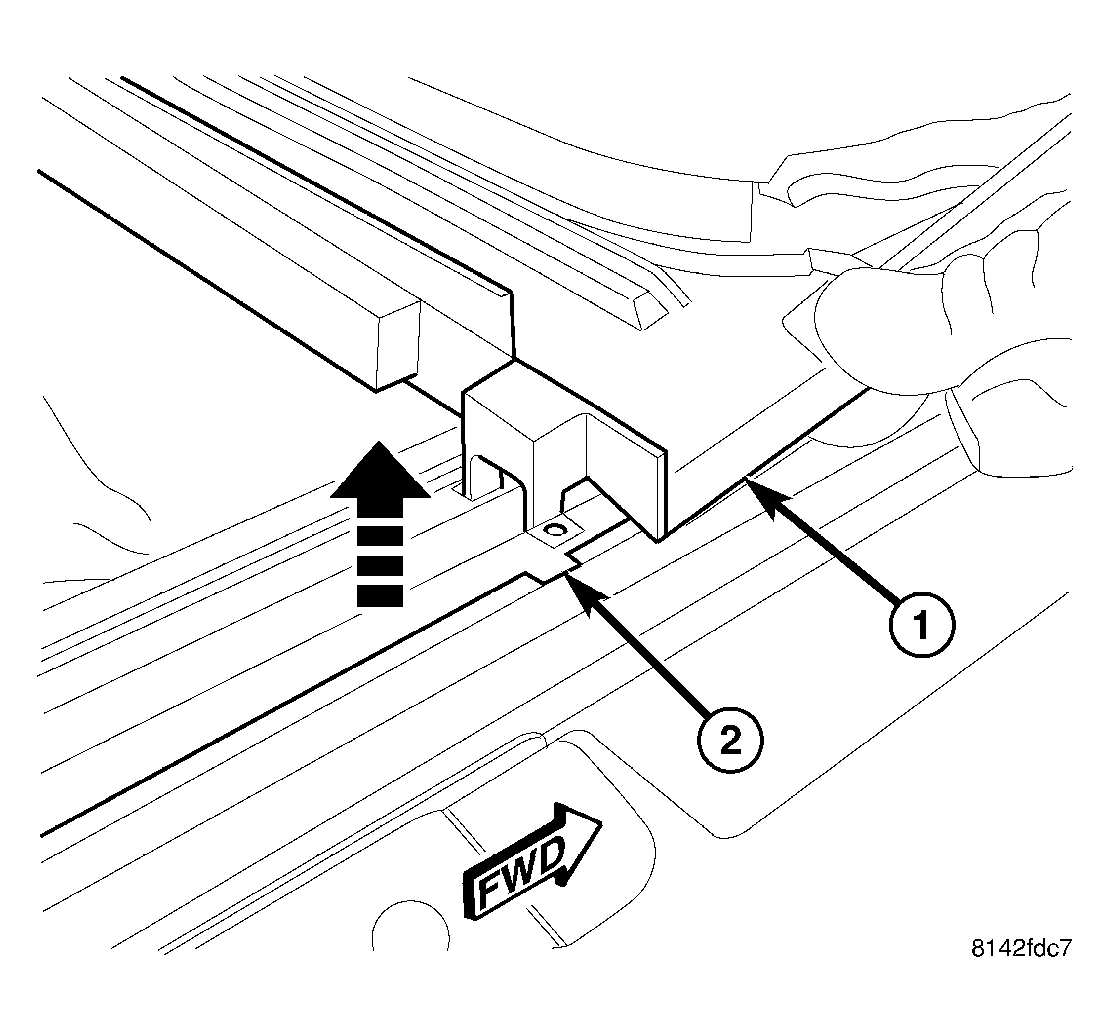

Fig 1: Removing/Installing Channel Arm

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove glass panel. (Refer to BODY/SUNROOF/GLASS PANEL - REMOVAL)
2. Separate the drain channel arms (2) from the guide mechanisms (1) one at a time.
   CAUTION: Do not pry the channel arms apart at the same time or you could break the drain channel.
   Fig 2: Removing/Installing Channel

   Courtesy of DAIMLERCHRYSLER CORP.
3. Carefully slide the drain channel (1) forward to the notches (2) in the frame and remove from the vehicle.
