Sunroof - Service Information: Glass: Removal

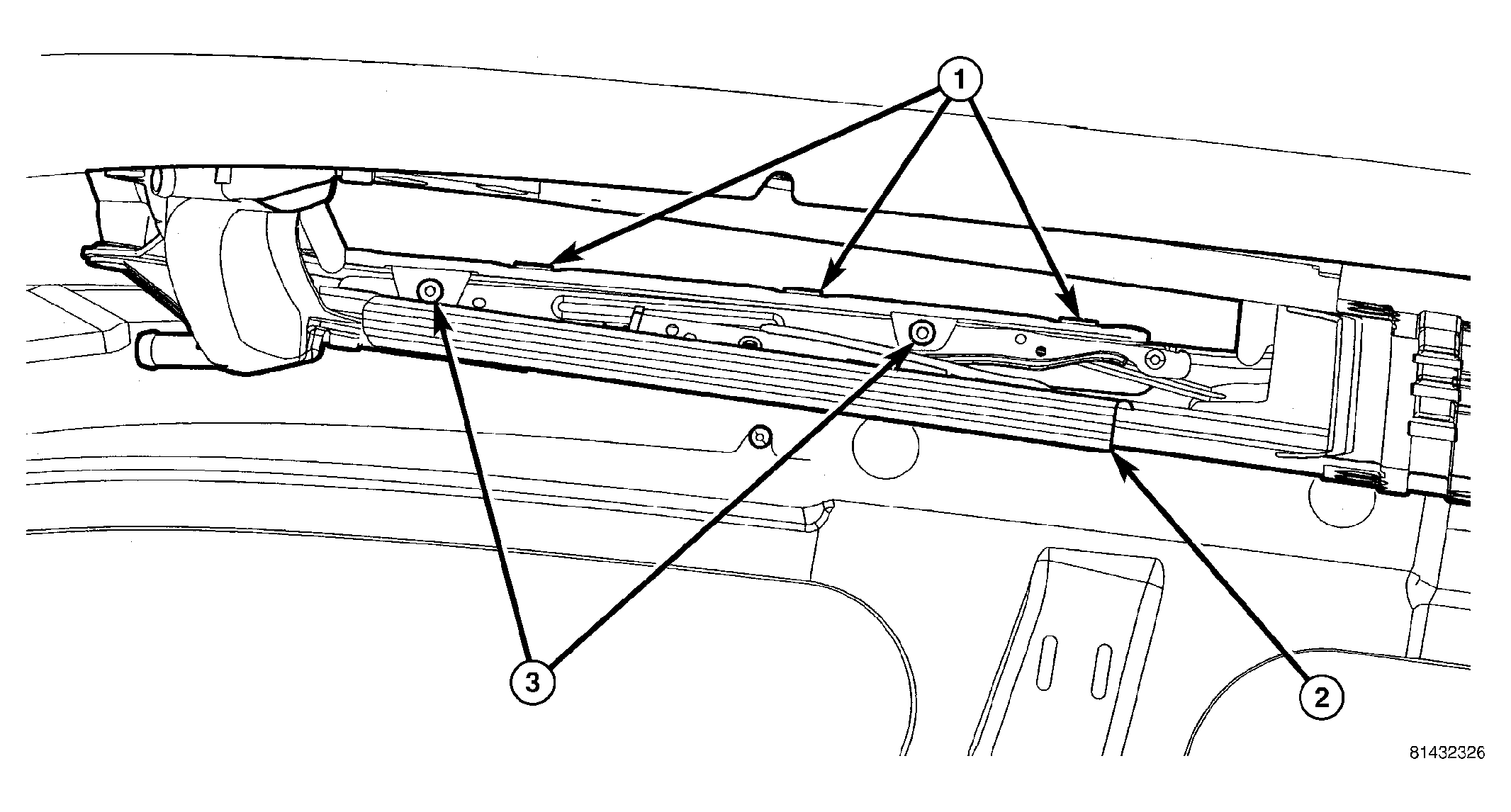

Fig 1: Removing/Installing Mechanism Cover

Courtesy of DAIMLERCHRYSLER CORP.

1. Move the glass panel to the full closed position.
2. Slide sunshade rearward to the open position.
3. Separate the mechanism covers (2) from the tabs (1) on the glass panel.
   Fig 2: Identifying Glass Fasteners

   Courtesy of DAIMLERCHRYSLER CORP.
4. Remove the glass panel screws (3).
5. Lift off glass panel and remove from vehicle.
