Sunroof - Service Information: Assembly-Module: Removal

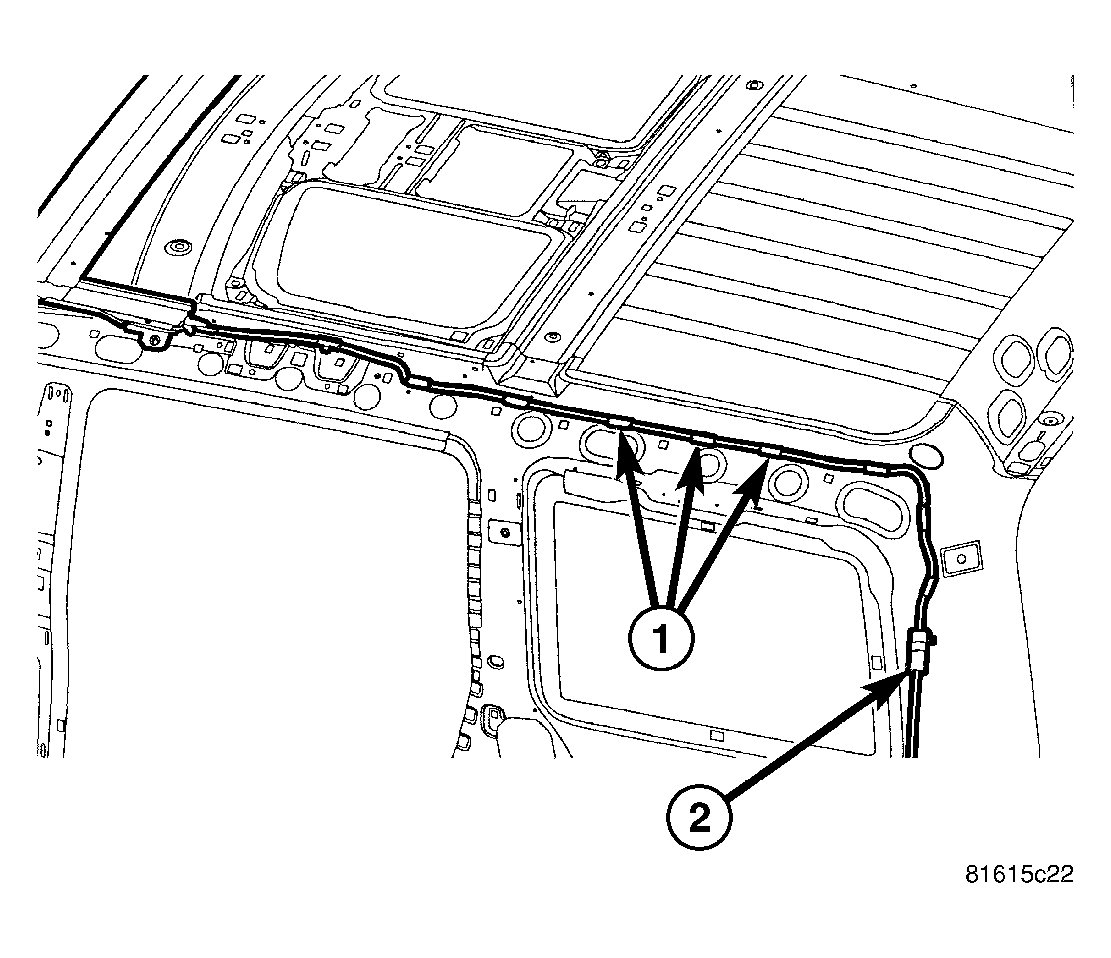

Fig 1: Disconnect/Connect Sunroof Wire Harness Electrical Connector & Harness Support Clips

Courtesy of DAIMLERCHRYSLER CORP.

WARNING: The Excessive Force Limitation (EFL) feature must be calibrated any time a sunroof motor/module is replaced with a new component. Failure to perform this procedure could result in vehicle damage and/or personal injury. (Refer to ELECTRICAL/POWER TOP/MOTOR - STANDARD PROCEDURE - EXCESSIVE FORCE LIMITATION (EFL) CALIBRATION ) for the appropriate procedure.

1. Move glass panel to the fully closed position.
2. Disconnect and isolate the battery negative cable.
3. Remove headliner (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .
4. Disconnect the sunroof wire harness electrical connector (2) and separate the harness support clips (1) from the body.

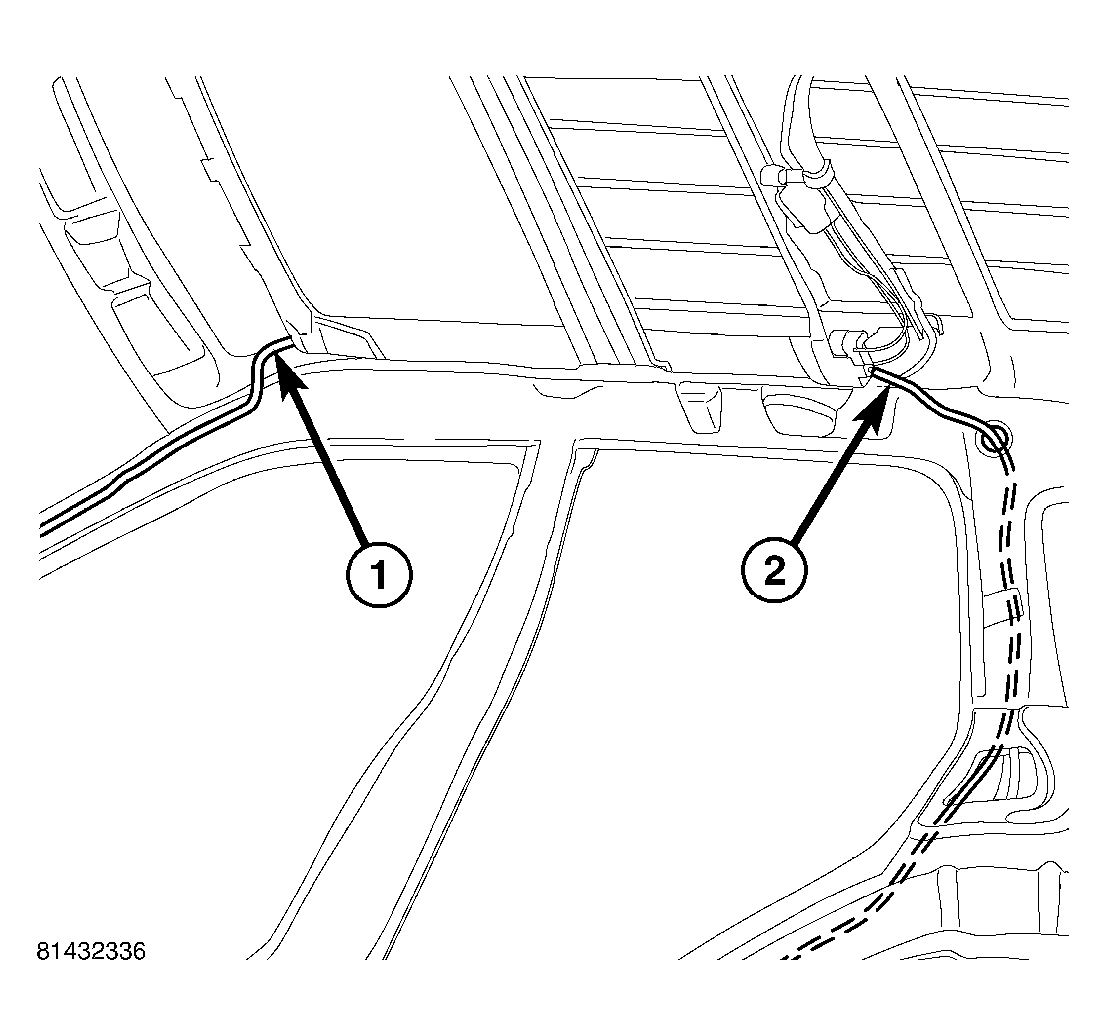

   Fig 2: Identifying Front & Rear Drain Tubes

   Courtesy of DAIMLERCHRYSLER CORP.
5. Disconnect the front (1) and rear (2) drain tubes from sunroof housing.
   Fig 3: Remove/Install DVD Support Bracket

   Courtesy of DAIMLERCHRYSLER CORP.
6. Remove the fasteners (1) and (2) and remove the DVD support bracket, if equipped.

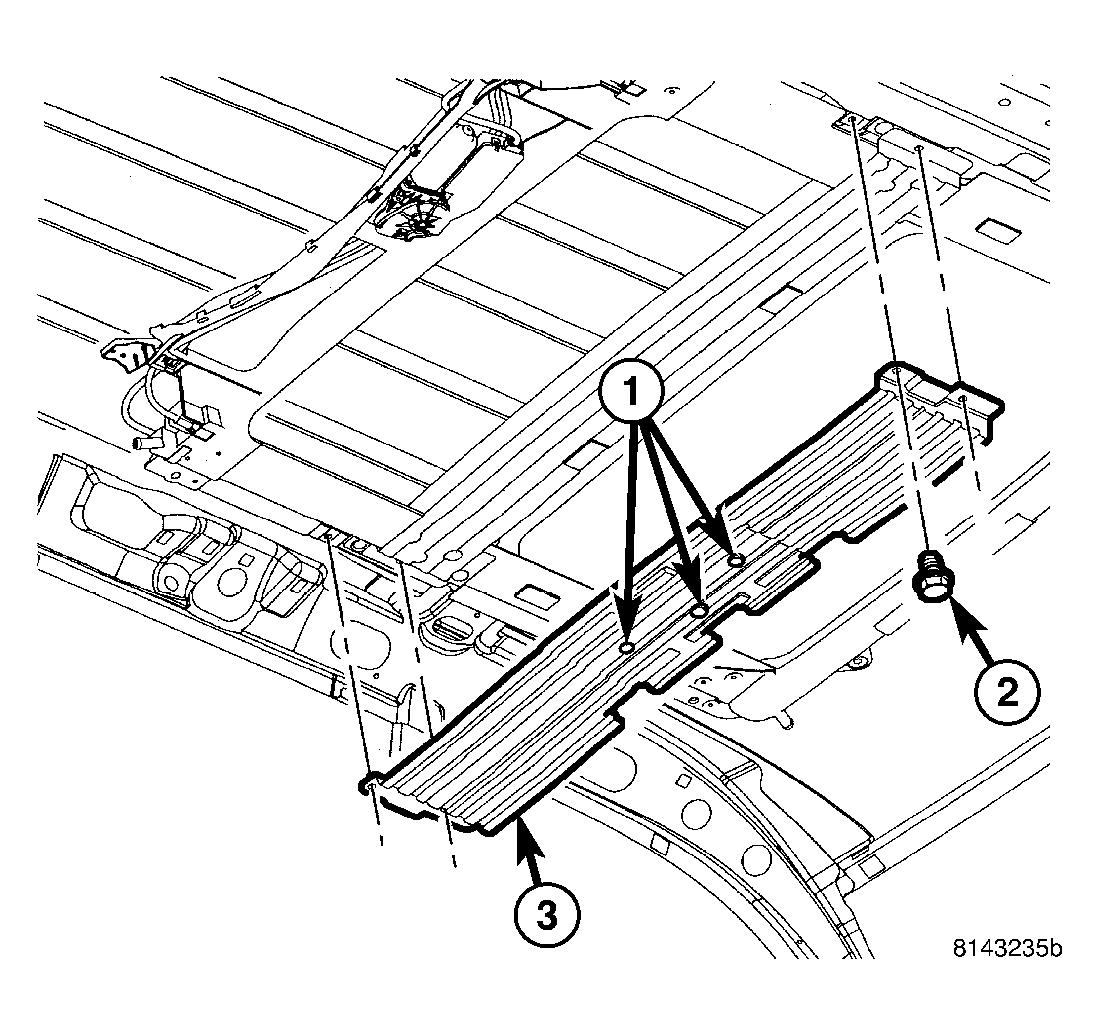

   Fig 4: Remove/Install Sunroof Assembly

   Courtesy of DAIMLERCHRYSLER CORP.
7. Remove the front (2) and rear (4) fasteners.
8. With the aid of a helper, support the sunroof and remove the fasteners (3) attaching sunroof assembly to roof panel.
9. Remove the sunroof from vehicle.
