Body - Interior & Exterior: Seats: Support-Lumbar: Removal

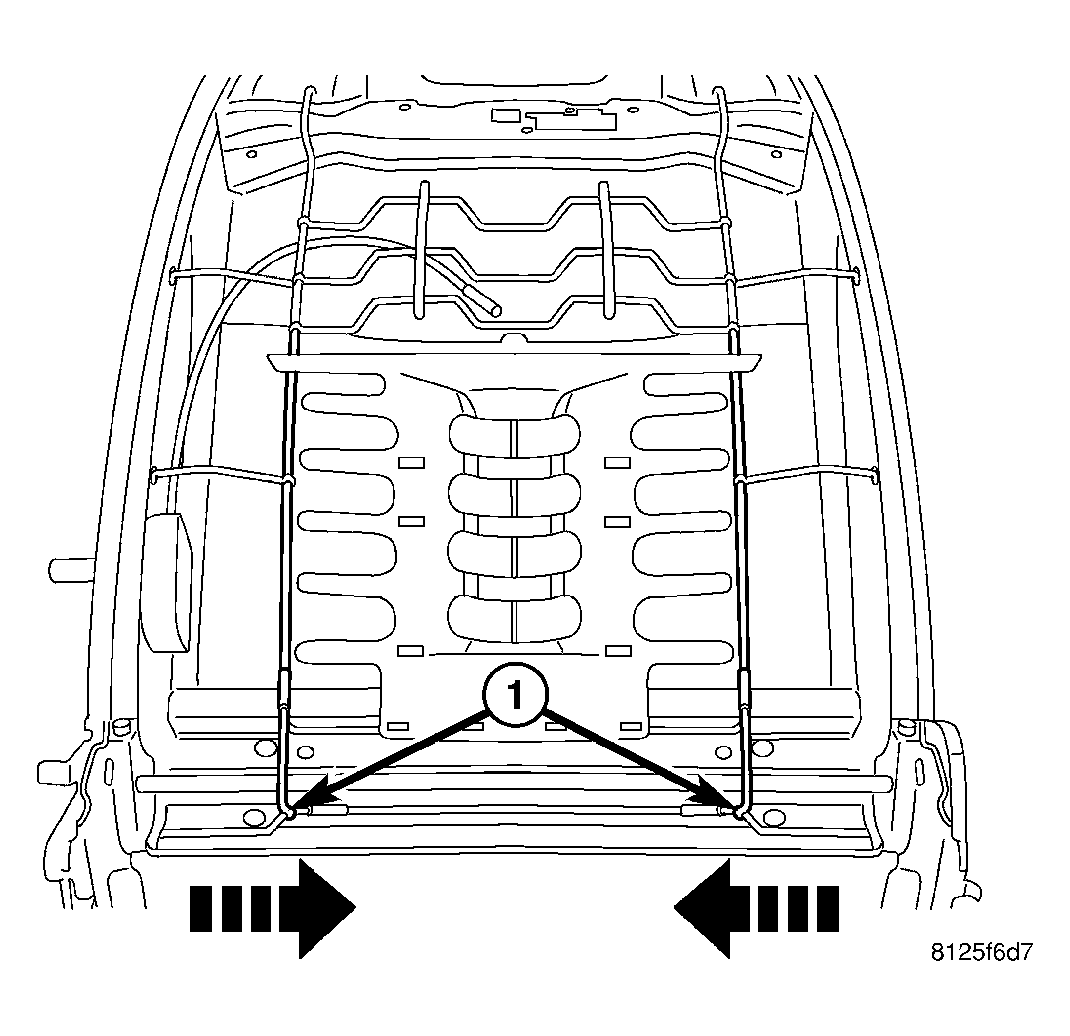

Fig 1: Identifying Lumbar Mat Side Wires

Courtesy of DAIMLERCHRYSLER CORP.

1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to BODY/SEATS - WARNING)
2. Remove the seat back cushion/cover. (Refer to BODY/SEATS/SEAT BACK CUSHION / COVER - FRONT - REMOVAL)
3. Release the lumbar mat side wires (1) by pulling out on the wire supports and then pulling them in.

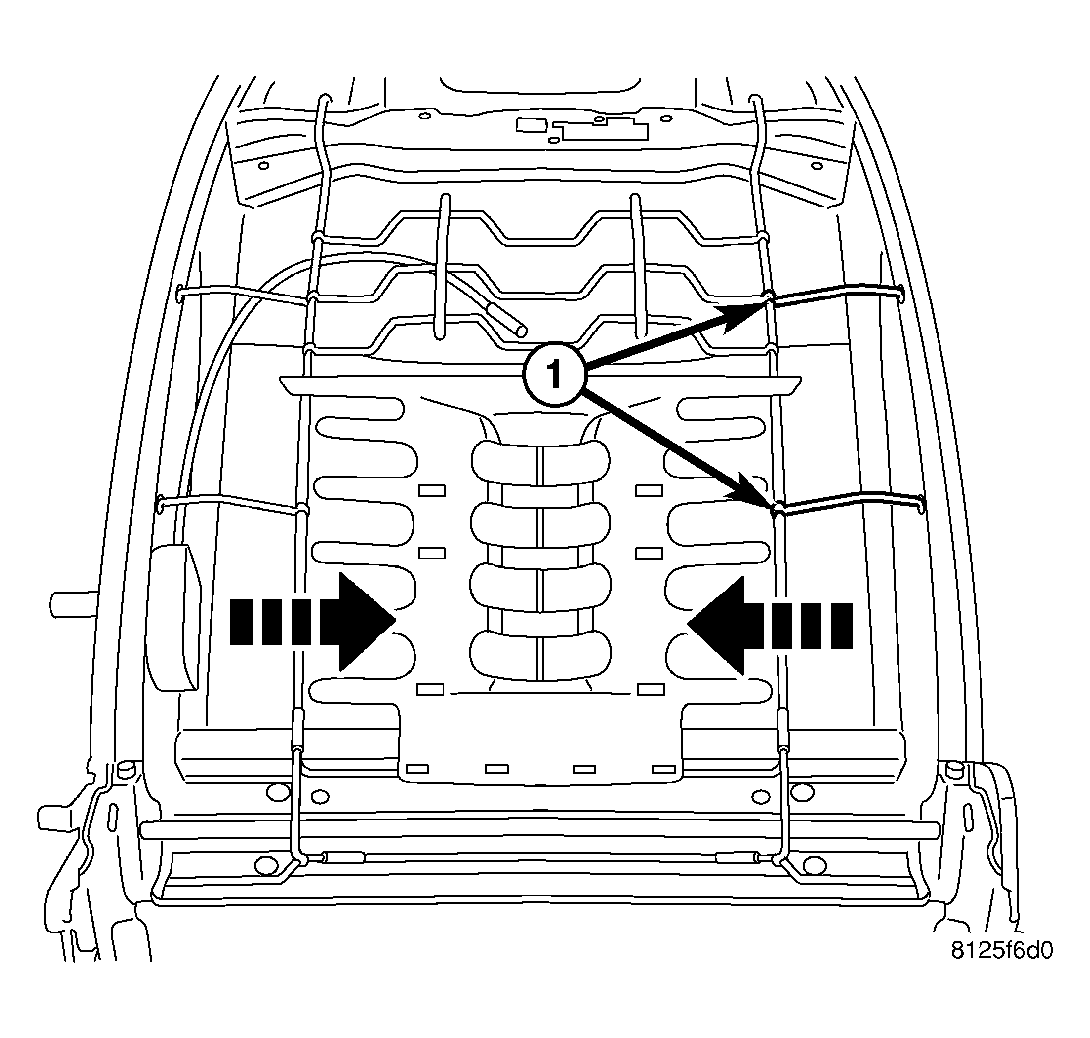

   Fig 2: Identifying Lower Support Wires

   Courtesy of DAIMLERCHRYSLER CORP.
4. Squeeze the lower support wires (1) in and release the lower wires.

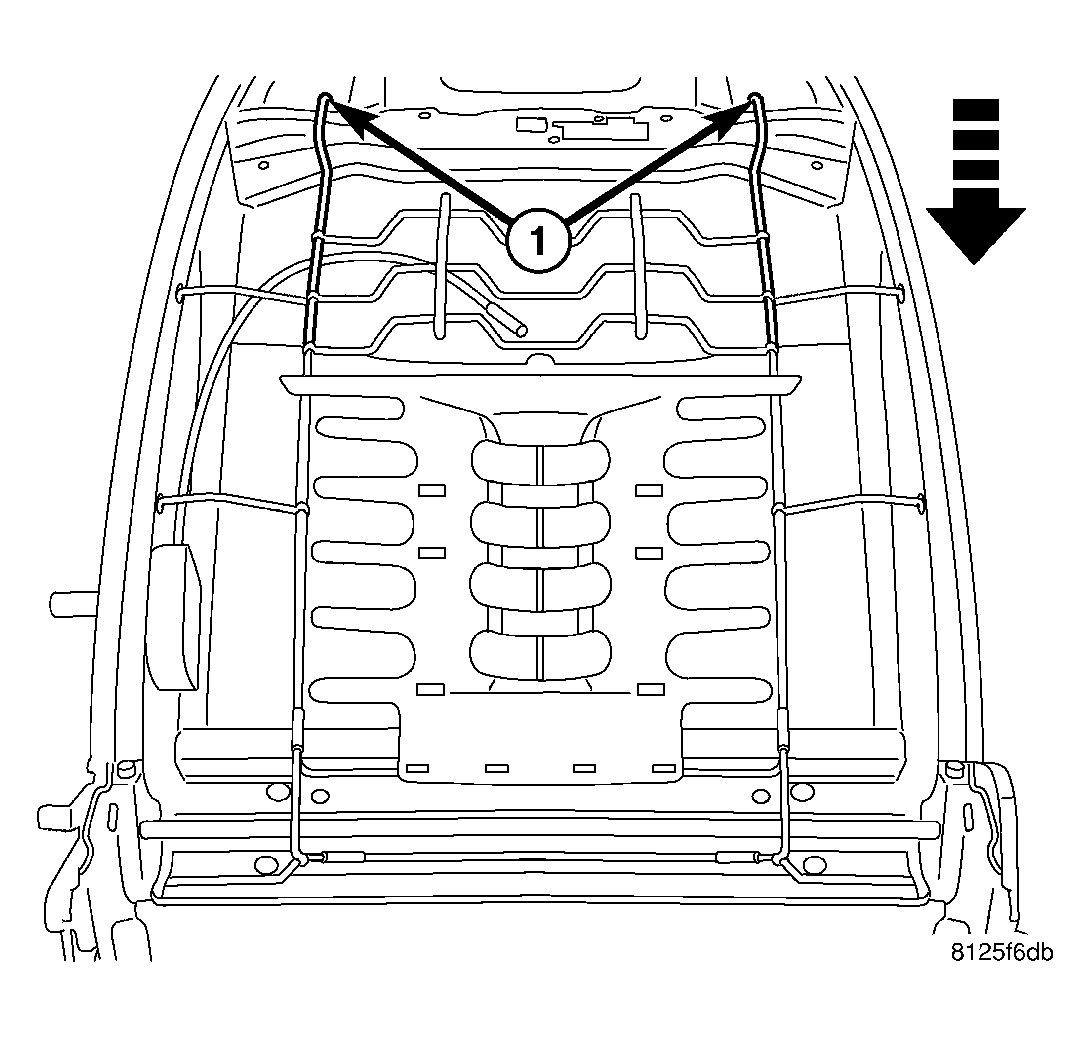

   Fig 3: Identifying Upper Support Wires

   Courtesy of DAIMLERCHRYSLER CORP.
5. Pull the upper support wires (1) down and release the lumbar mat from the seat back frame.

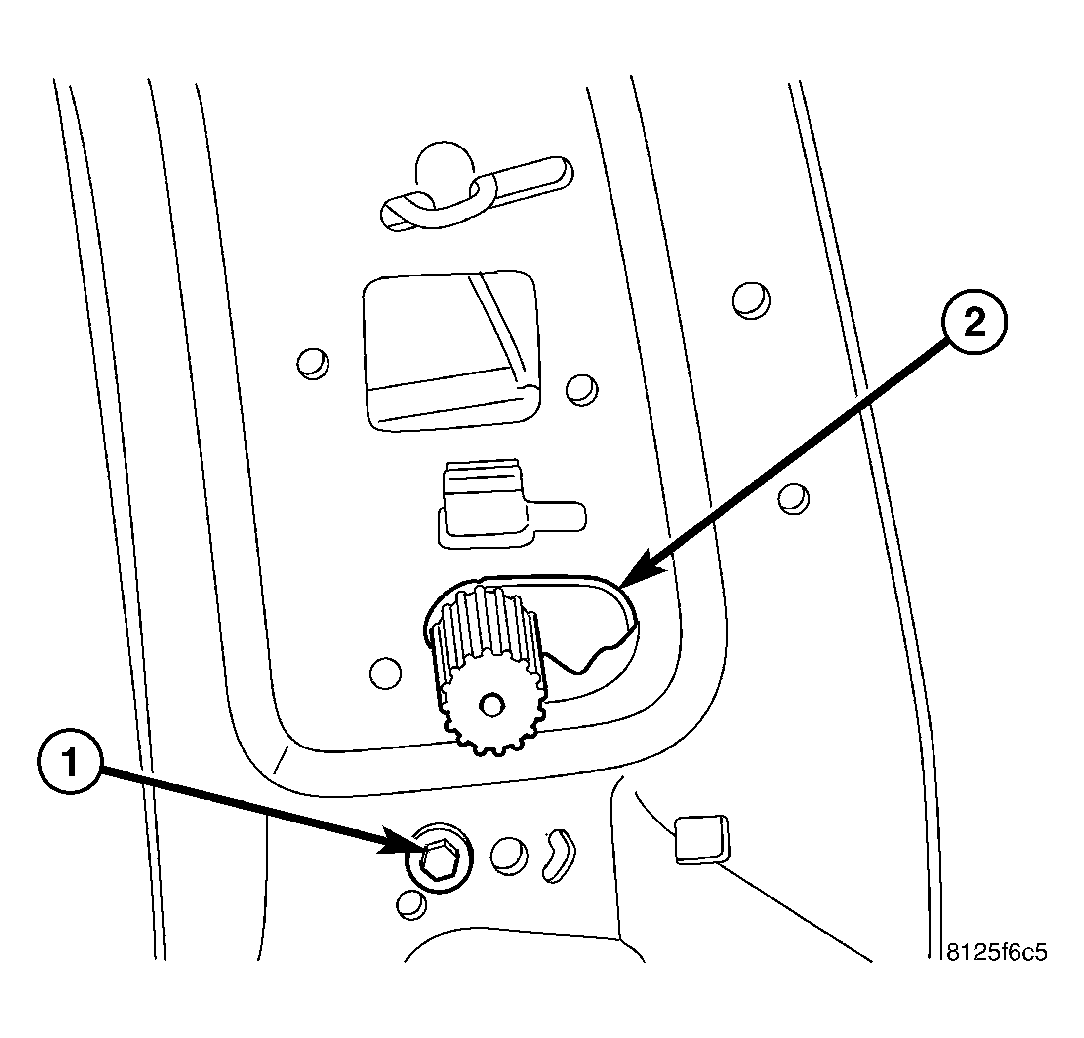

   Fig 4: Identifying Rivet & Lumbar Mechanism

   Courtesy of DAIMLERCHRYSLER CORP.
6. Remove the rivet (1) and remove the lumbar mechanism (2).
