Cushion/Cover-Seat Back - Front: Removal

Fig 1: Removing/Installing Front Seats

Courtesy of DAIMLERCHRYSLER CORP.

1. Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to BODY/SEATS - WARNING)
2. Remove the front seat. (Refer to BODY/SEATS/SEAT - FRONT - REMOVAL)
   Fig 2: Handles & Shields

   Courtesy of DAIMLERCHRYSLER CORP.
3. Remove the lumbar and recliner handles (1).
4. Remove the screws and remove the side shields (2).

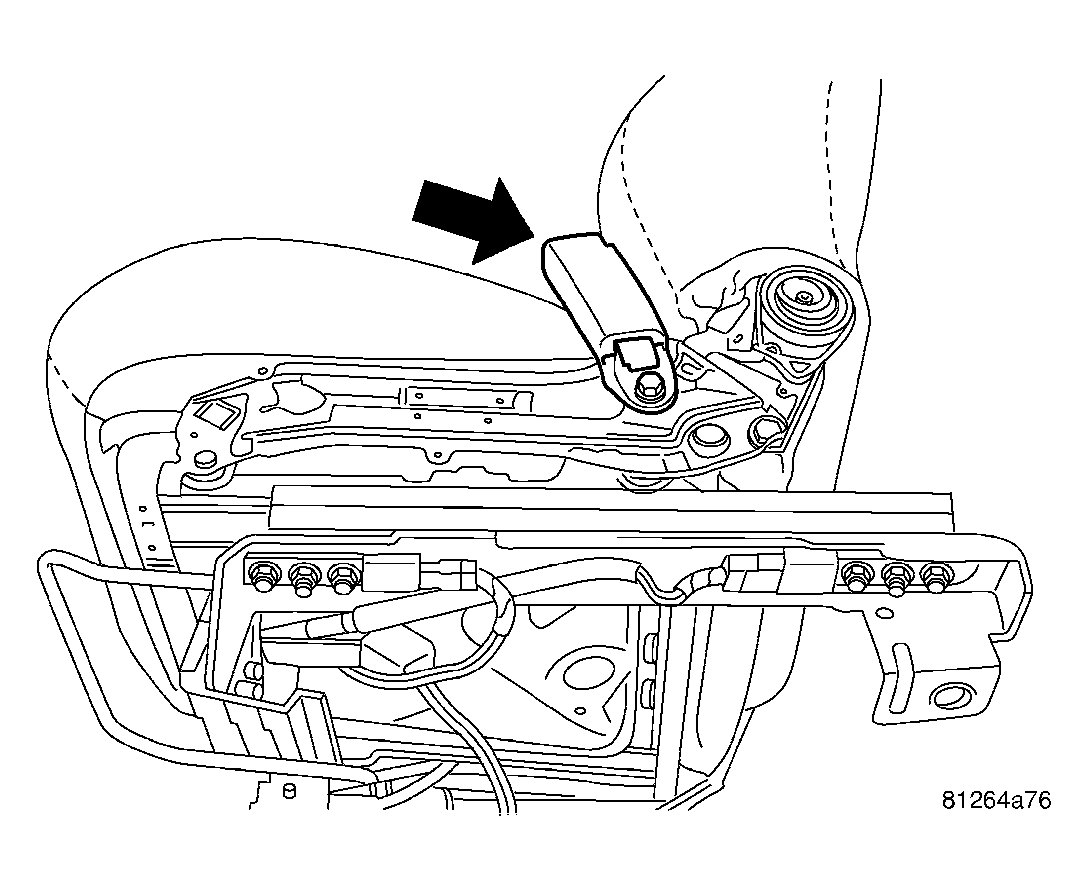

   Fig 3: Buckle

   Courtesy of DAIMLERCHRYSLER CORP.
5. Remove the belt buckle.

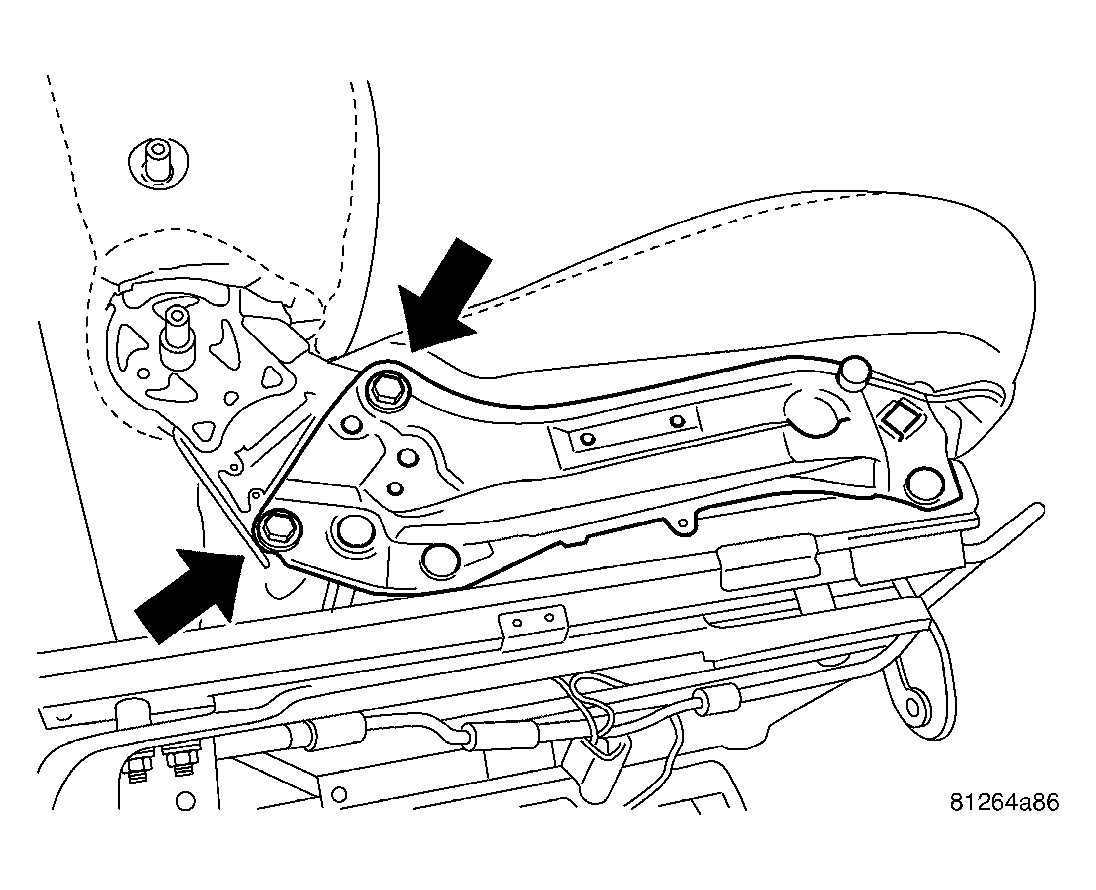

   Fig 4: Back Bolts

   Courtesy of DAIMLERCHRYSLER CORP.
6. Remove the seat back bolts from both sides.
   Fig 5: Removing/Installing Head Rest

   Courtesy of DAIMLERCHRYSLER CORP.
7. Remove the headrest.

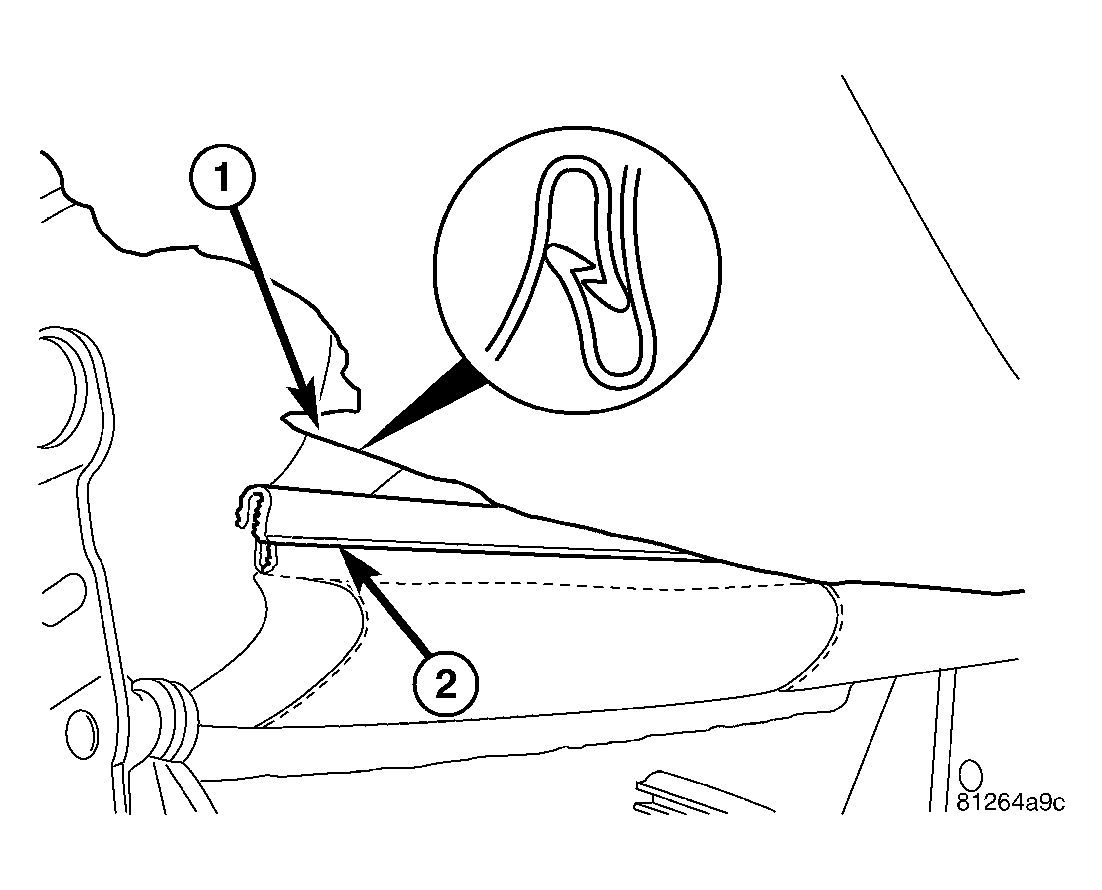

   Fig 6: J-STRAPS

   Courtesy of DAIMLERCHRYSLER CORP.
8. Separate the j-straps (1 & 2) and pull cover up over frame.

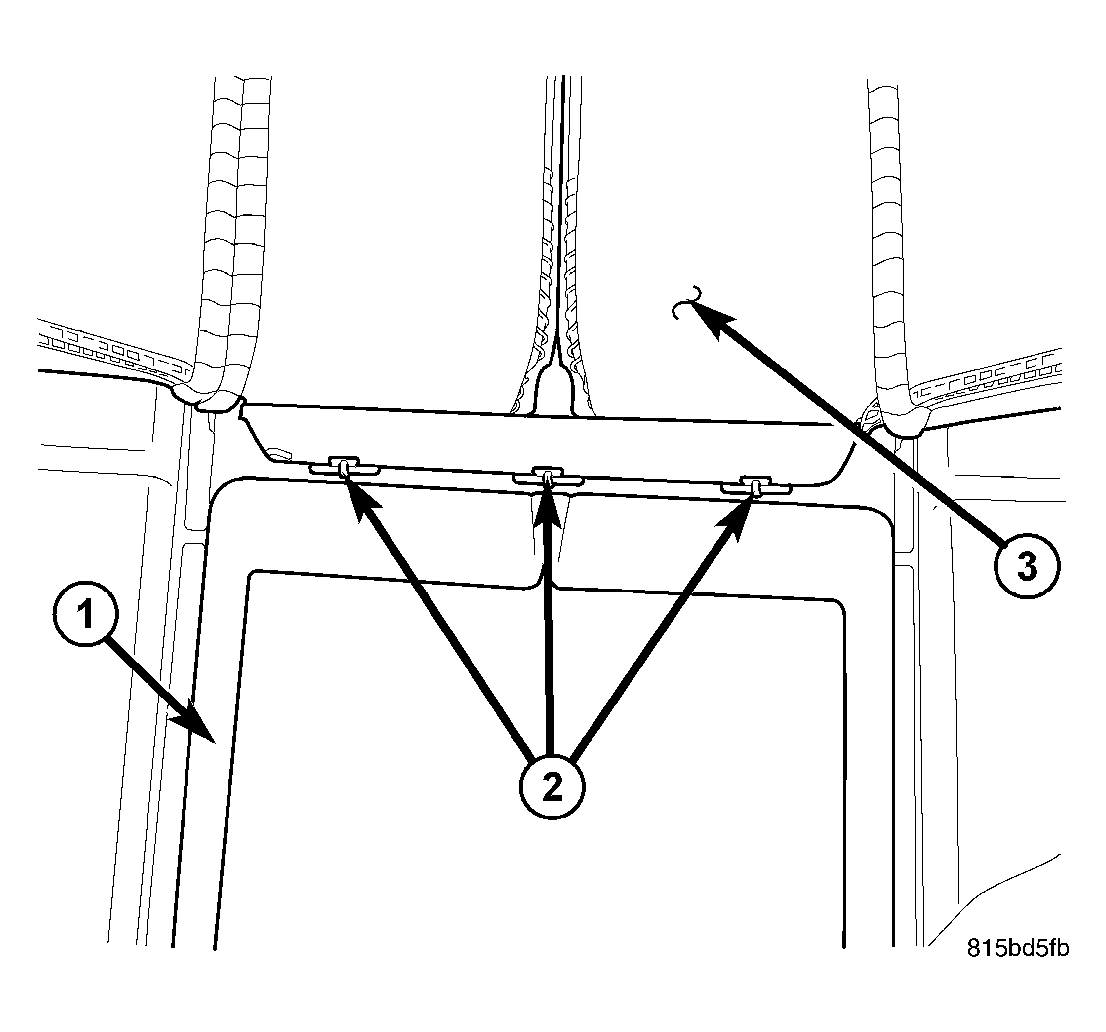

   Fig 7: SEAT BACK HOG RINGS

   Courtesy of DAIMLERCHRYSLER CORP.
9. Cut off the hog rings (2) attaching the cover (3) to the cushion (1).

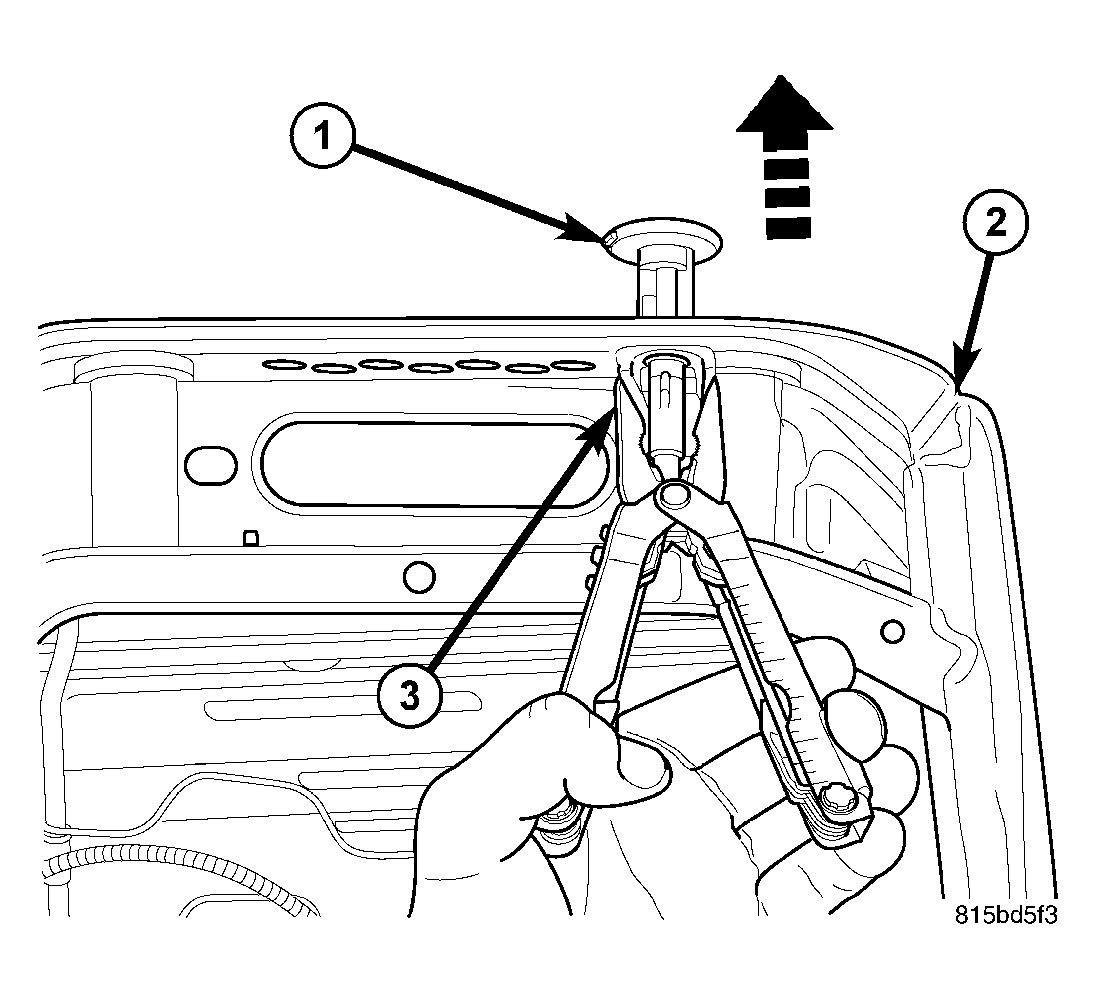

   Fig 8: HEADREST SLEEVE REMOVAL

   Courtesy of DAIMLERCHRYSLER CORP.
10. Squeeze the locking tab (3) and remove the headrest sleeves (1) and remove the cover.
