Panel-Quarter Trim: Removal

Fig 1: Identifying Center Seat Rear Fasteners

Courtesy of DAIMLERCHRYSLER CORP.

Fold the second row seat (4) forward.

Fig 2: Remove/Install Upper C-Pillar Trim
Courtesy of DAIMLERCHRYSLER CORP.
Position the C-pillar trim (1) out of the way (Refer to BODY/INTERIOR/PANEL-C-PILLAR TRIM - REMOVAL) .

Fig 3: Remove/Install Upper Trim Molding
Courtesy of DAIMLERCHRYSLER CORP.
Using a trim stick C-4755 or equivalent, release the retaining clips that secure the header trim molding in the liftgate opening and remove.

Fig 4: Remove/Install Scuff Plate
Courtesy of DAIMLERCHRYSLER CORP.
Using a trim stick C-4755 or equivalent, release the retaining clips that secure the scuff plate (1) and remove.

Fig 5: Remove/Install Seat
Courtesy of DAIMLERCHRYSLER CORP.
Remove the rear seat, (Refer to BODY/SEATS/SEAT - REMOVAL) .

Fig 6: Seat Belt Lower Anchor And Trim
Courtesy of DAIMLERCHRYSLER CORP.
Remove the bolt (5) and remove the lower seat belt anchor (4).

Fig 7: Remove/Install Rear Upper Header Trim Panel
Courtesy of DAIMLERCHRYSLER CORP.
Position the D-pillar trim aside, (Refer to BODY/INTERIOR/PANEL-D-PILLAR TRIM - REMOVAL) .

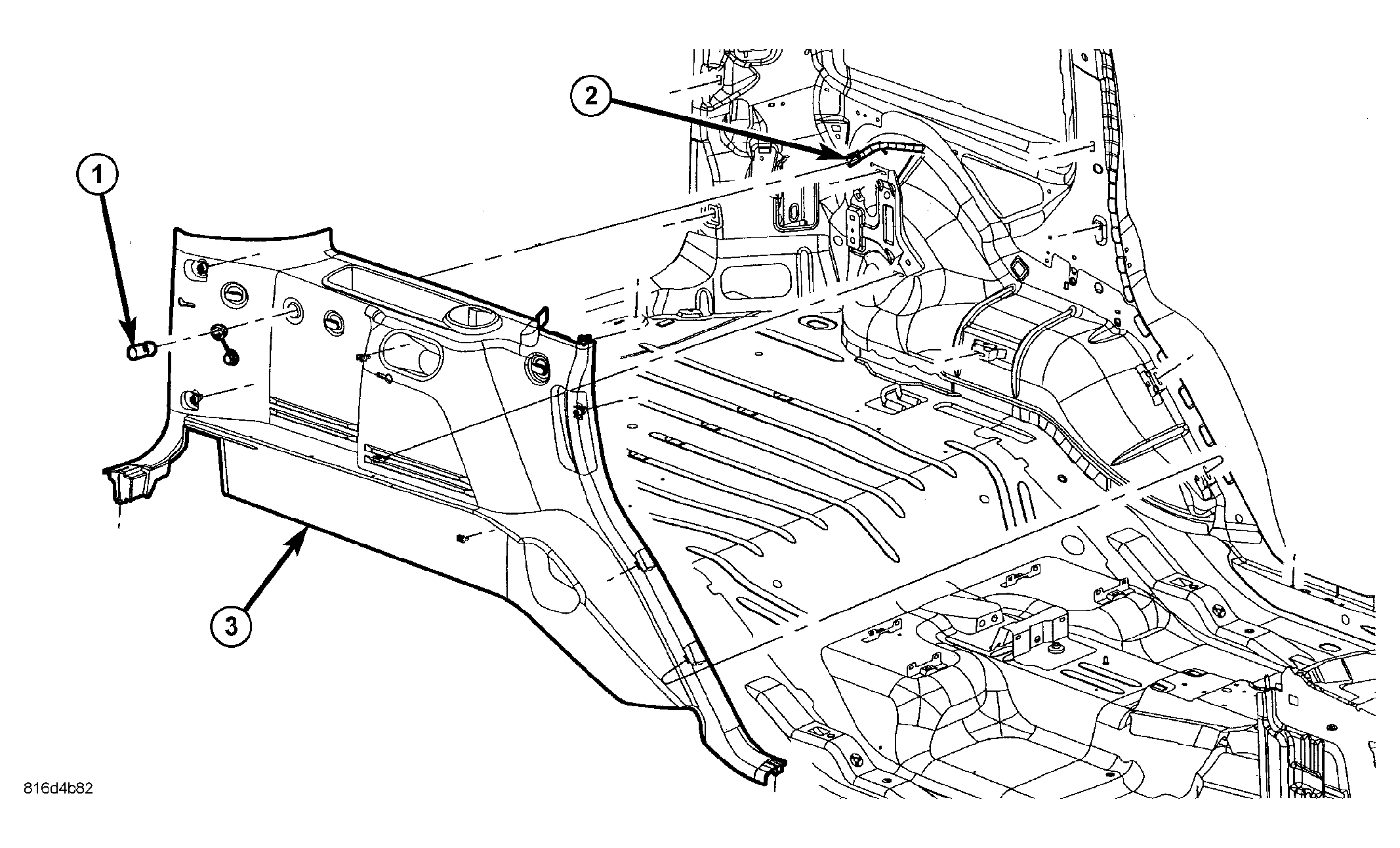

Fig 8: Remove/Install Screws & Left Trim Panel
Courtesy of DAIMLERCHRYSLER CORP.
Remove the three screws and separate the trim panel (3). Disconnect the electrical connector (2), if equipped.

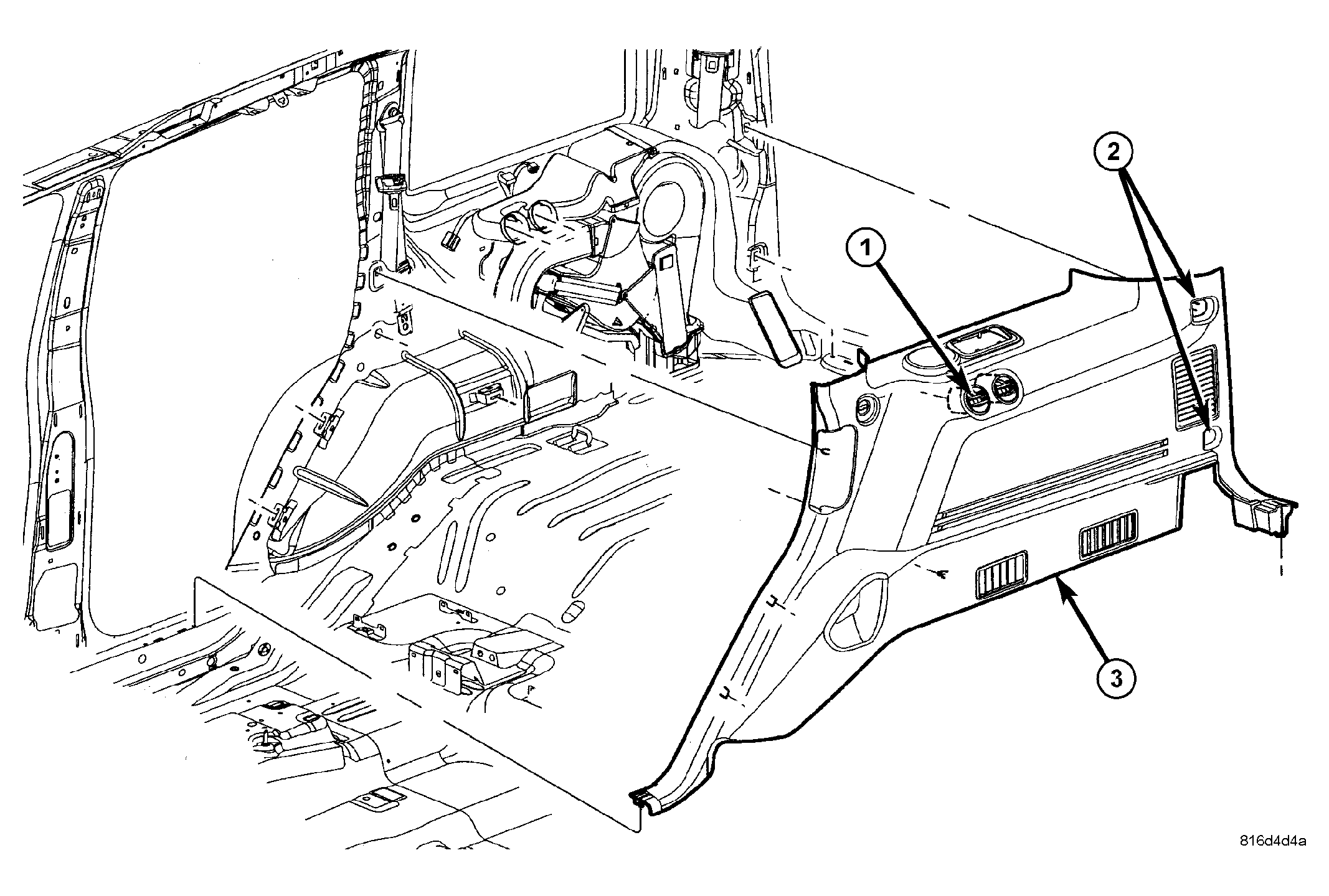

Fig 9: Remove/Install Screws & Right Trim Panel
Courtesy of DAIMLERCHRYSLER CORP.
For the right side trim, remove the three screws and separate the trim panel (3). Disconnect the electrical connector (1), if equipped.
