Doors - Rear: Latch: Removal

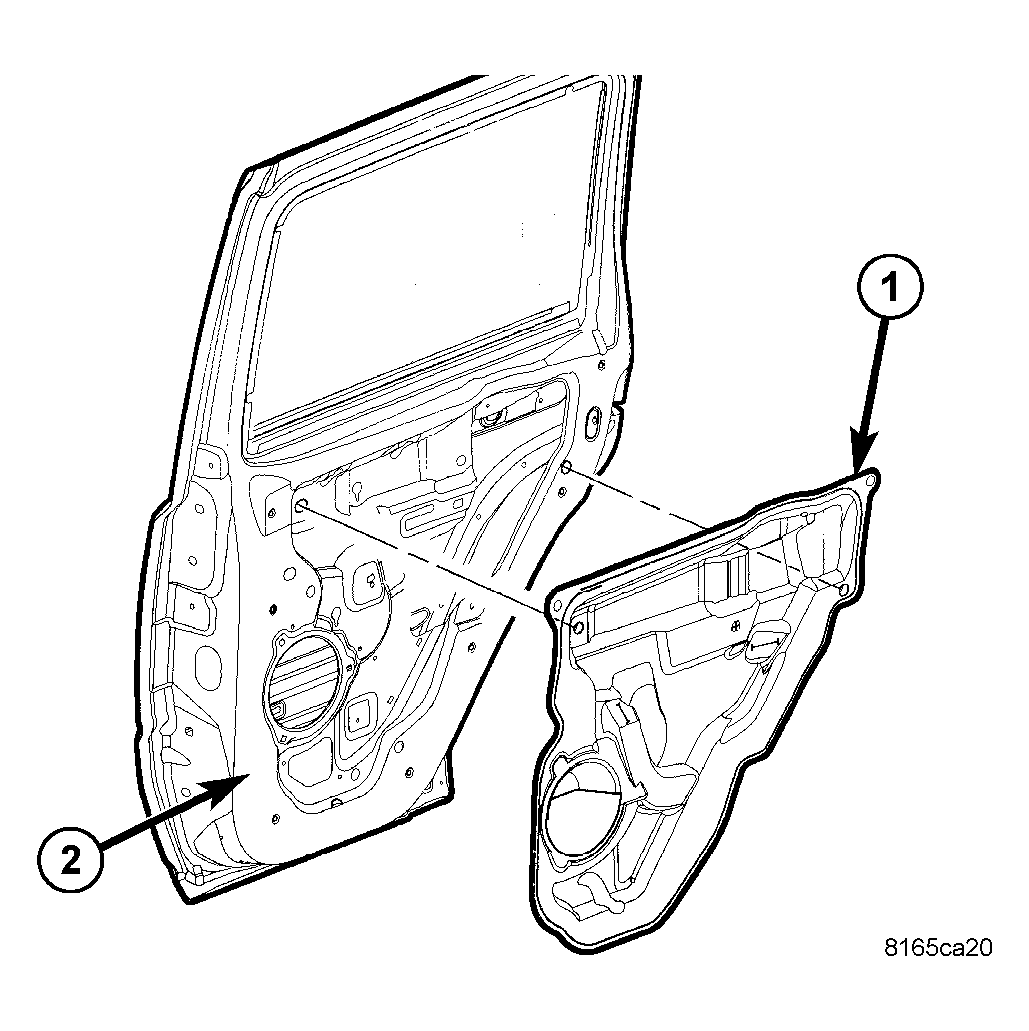

Fig 1: Remove/Install Watershield

Courtesy of DAIMLERCHRYSLER CORP.

Remove the watershield (1) as necessary to gain access to the latch (Refer to BODY/DOORS - REAR/WATERSHIELD - REMOVAL) .

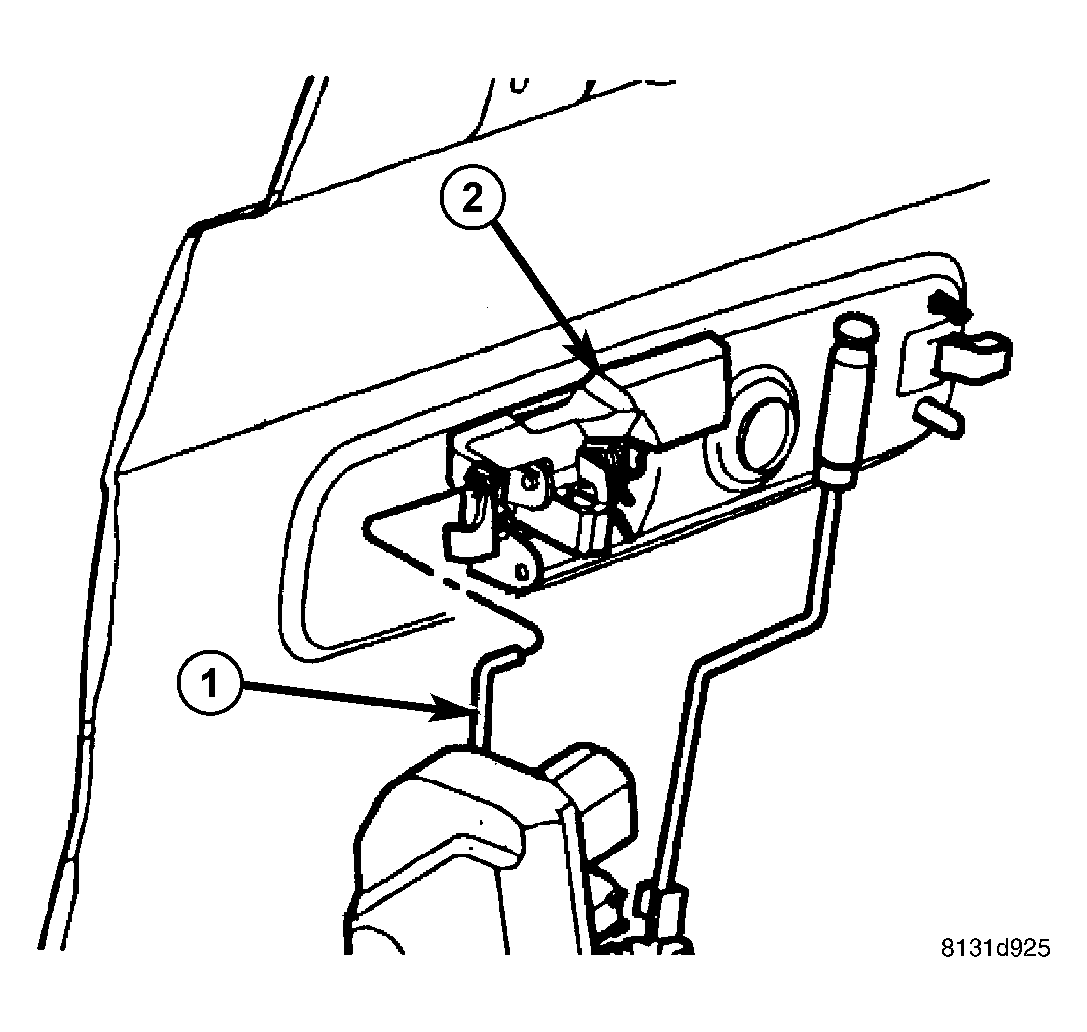

Fig 2: Identifying Actuator Rod & Exterior Handle
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the actuator rod (1) from the exterior handle (2).

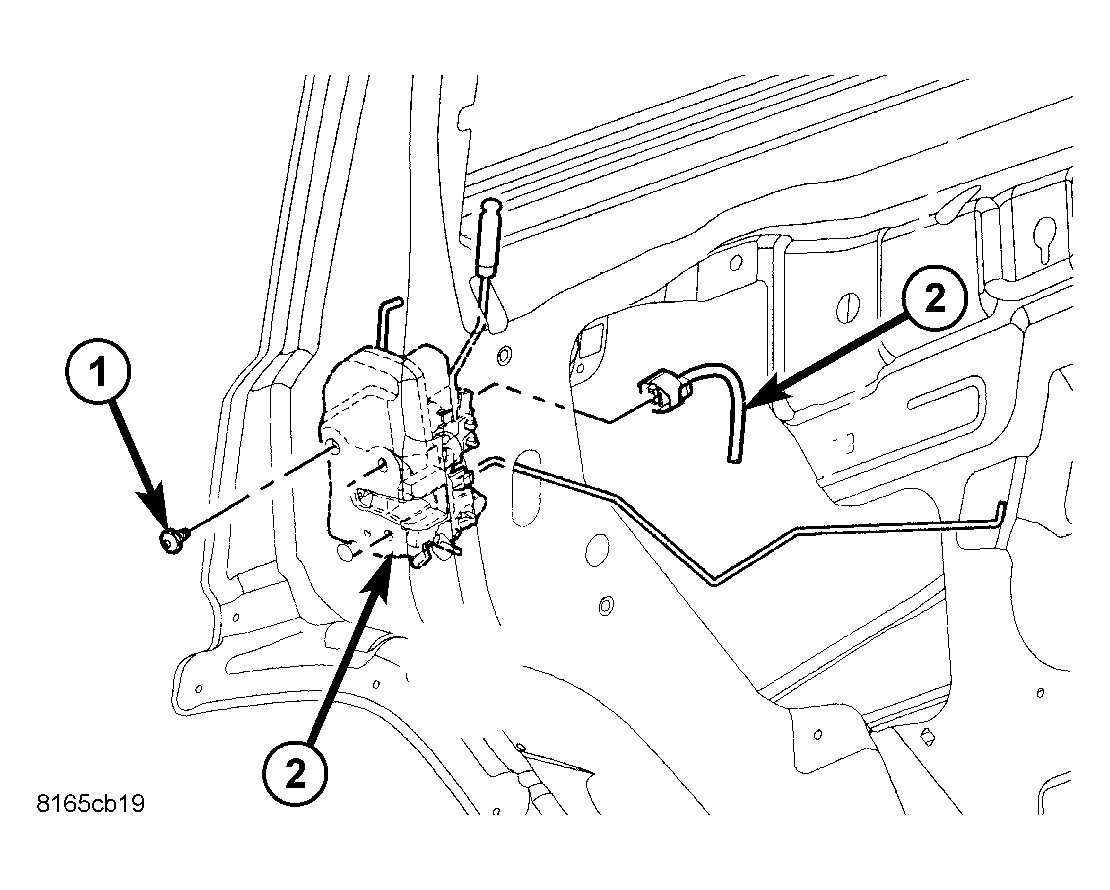

Fig 3: Remove/Install Rear Door Latch
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the interior handle actuator rod from the rear door latch (3) and remove the rod.
Disconnect the door wire harness connector (2) from the rear door latch.
Remove the three bolts (1) that secure the rear door latch to the door and remove the latch and actuator rods as an assembly.
If required, remove all of the actuator rods from the actuator.
