Doors - Rear: WATERSHIELD: Removal

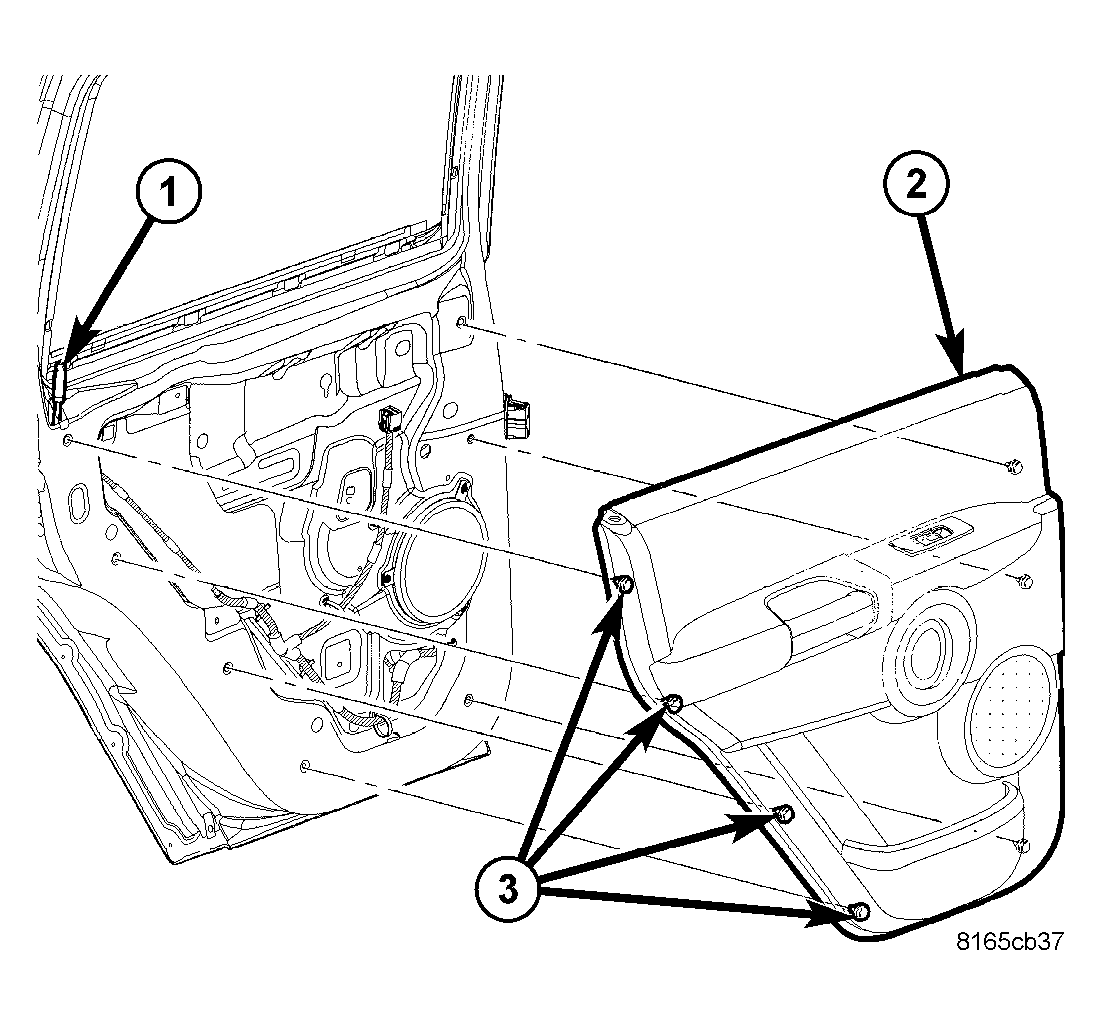

Fig 1: Remove/Install Trim Panel

Courtesy of DAIMLERCHRYSLER CORP.

Remove the trim panel from the inside of the rear door (Refer to BODY/DOORS - REAR/TRIM PANEL - REMOVAL) .

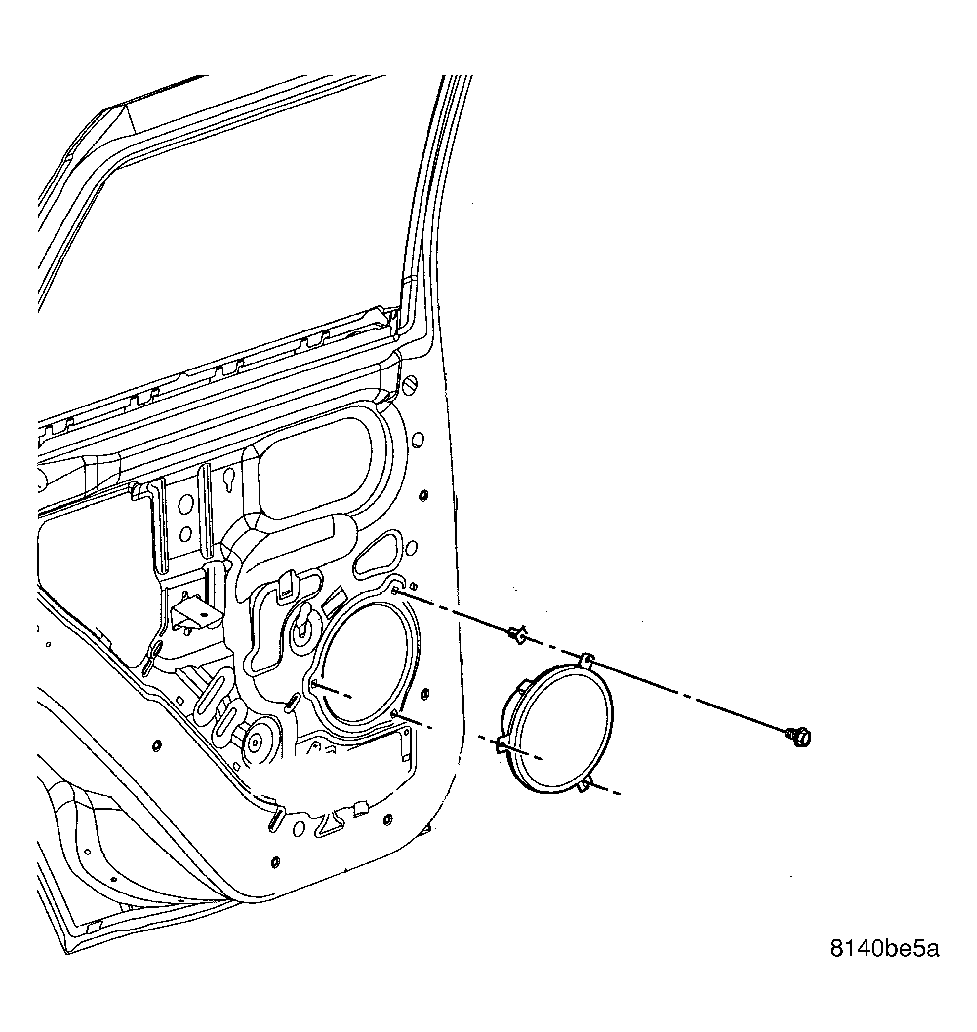

Fig 2: Remove/Install Rear Door Speaker
Courtesy of DAIMLERCHRYSLER CORP.
If equipped, remove the speaker from the inside of the rear door (Refer to ELECTRICAL/AUDIO/SPEAKER - REMOVAL) .

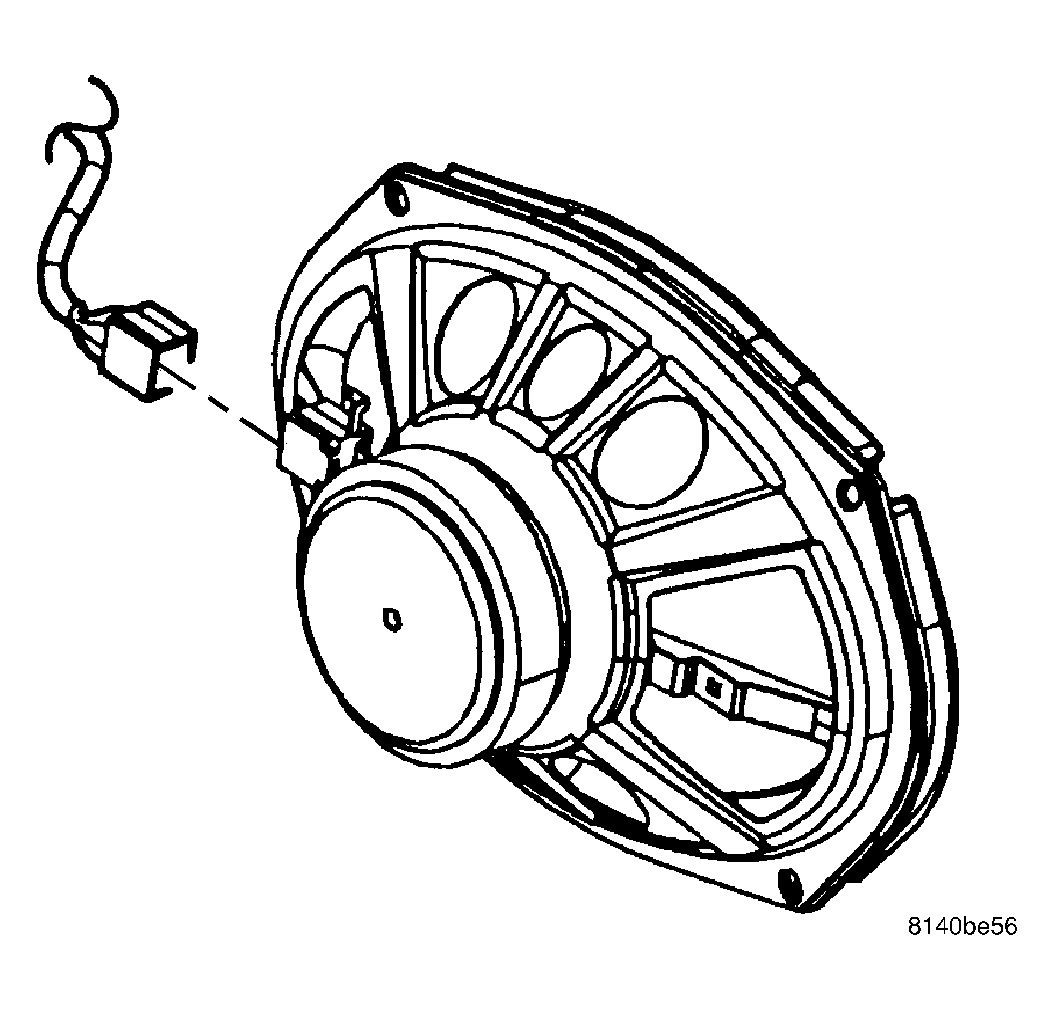

Fig 3: Disconnect/Connect Speaker Connector
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect wire harness connector from speaker.

Fig 4: Remove/Install Watershield
Courtesy of DAIMLERCHRYSLER CORP.

CAUTION: Do not allow the watershield adhesive to become stretched, broken or contaminated with dirt or other foreign substances. If the watershield becomes contaminated or damaged, replace it. Also, if there are any materials applied to the watershield (i.e. tape, patches, etc.), replace it.
Carefully remove the watershield (1) from around the perimeter of the door (2).
Separate the watershield from the interior handle actuator rod and the door wire harness and remove the watershield.
