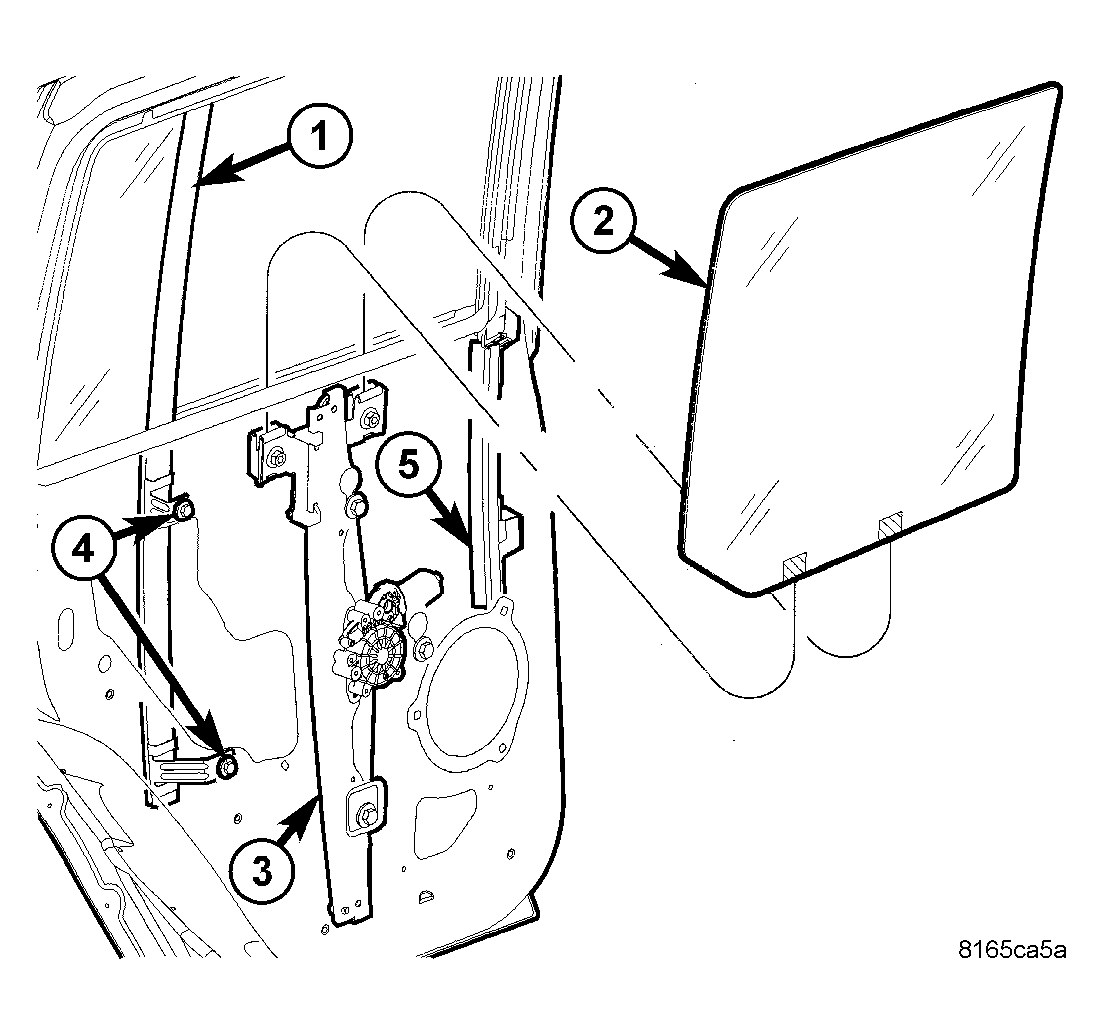

Doors - Rear: Glass: Removal
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the watershield from the inside of the rear door (Refer to BODY/DOORS - REAR/WATERSHIELD - REMOVAL) .
Courtesy of DAIMLERCHRYSLER CORP.
- Separate and remove the inner belt molding.
- Temporarily install the window switch and raise the glass into the full up position.
- Remove the bolts and remove the glass run channel. (Refer to BODY/DOORS - REAR/GLASS RUN CHANNEL - REMOVAL)
- Loosen the bolt in each of the window regulator glass clamps just far enough to release the door glass from the clamps. Do not completely remove.
- Disengage the door glass from the window regulator glass clamps.
- Lower the regulator down as required for access to remove the door glass.
- Carefully rotate the door glass within the window opening and remove the glass from the door through the window opening.
