Windshield Frame Weatherstrip: Removal: Lower

NOTE: The lower windshield frame weatherstrip can be removed with the frame tilted forward to the full horizontal position.
  1. Remove the wiper arms. (Refer to ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - REMOVAL)
  2. Disconnect the top from the windshield frame.
  3. Remove the cowl grille. (Refer to BODY/EXTERIOR/COWL GRILLE AND SCREEN - REMOVAL)
  4. Remove the Torx screws on each side of the windshield frame allowing the windshield frame to tilt to the full horizontal position.

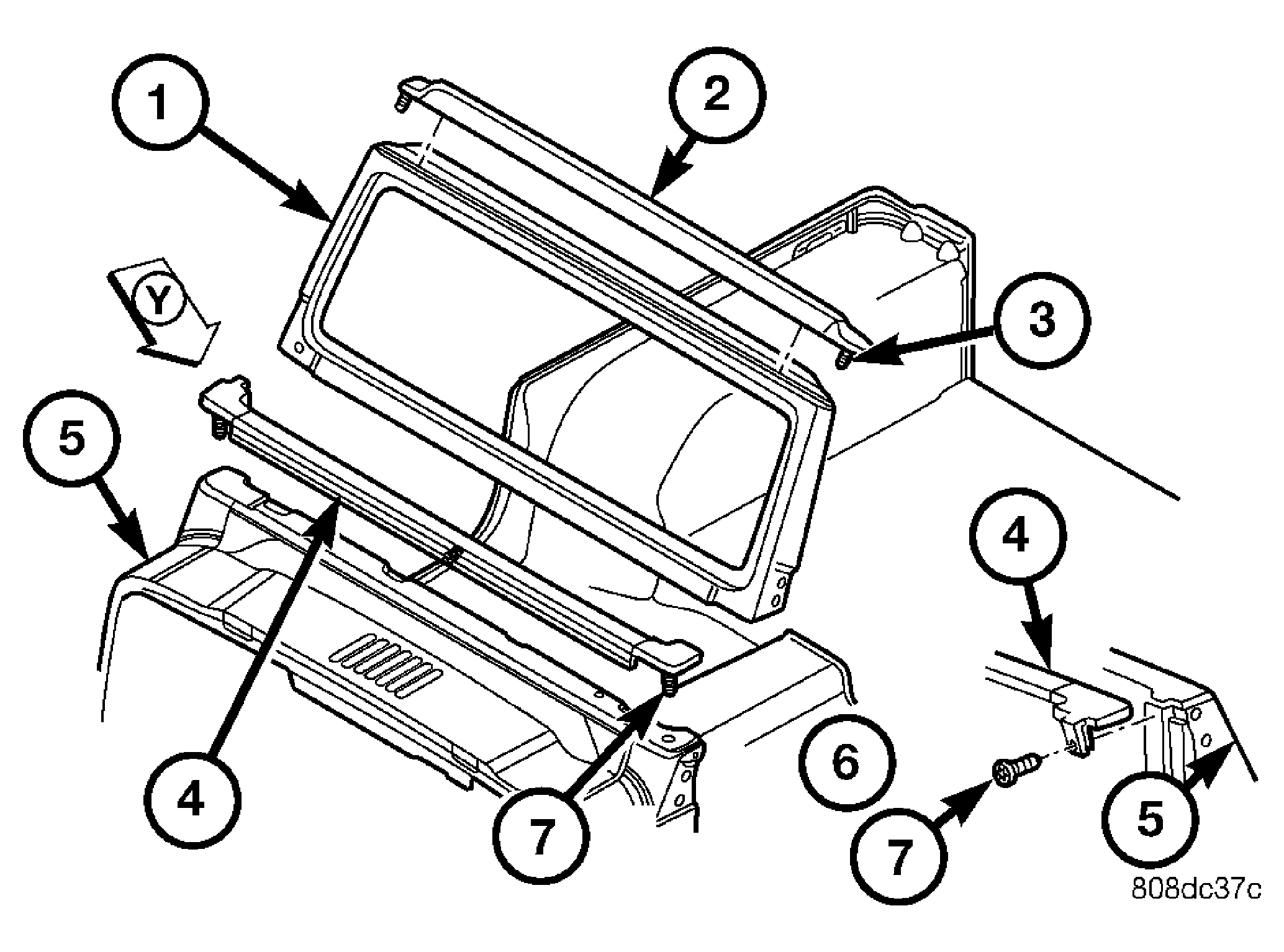

  5. Disengage the outboard push-in fasteners at the top of cowl on each hinge pillar. See Figure.
  6. Remove the weatherstrip from the cowl.
