Cowl Grille And Screen: Removal

Remove the wiper arms. (Refer to ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - REMOVAL)
CAUTION: Use masking tape or equivalent on the wiper arm pivots to prevent damage to the cowl grille paint.
Remove the four screws at the rear of the cowl grille.
Open the hood and remove the screws that attach the cowl grille and screen to the cowl. See Fig 1.
Remove the grille and screen from the cowl.

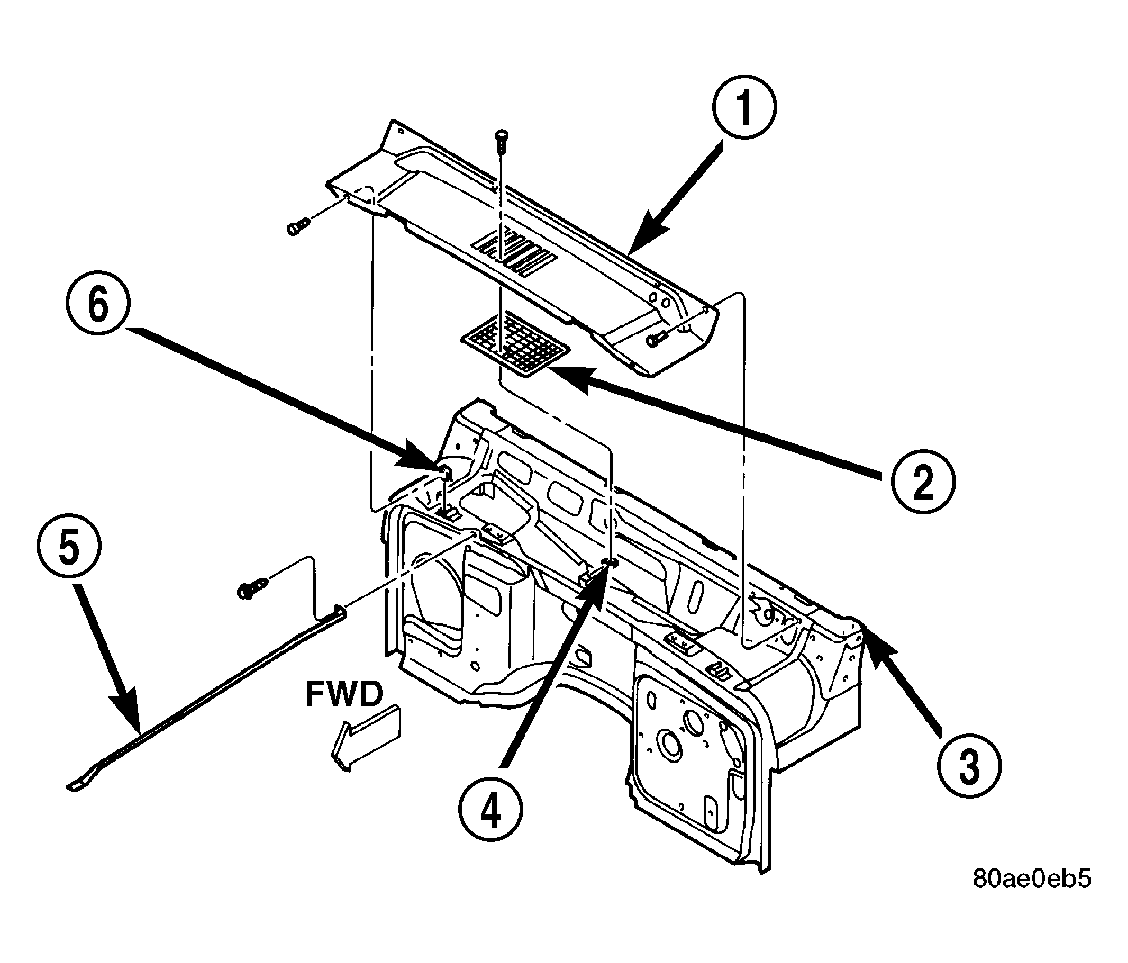

Fig 1: COWL GRILLE AND SCREEN

Courtesy of DAIMLERCHRYSLER CORP.

1 - COWL GRILLE

2 - COWL GRILLE SCREEN

3 - COWL

4 - U NUT

5 - DASH PANEL TIE ROD

6 - U NUT
