Windshield Hinge: Removal

NOTE: If both hinges are to be replaced, the windshield must be tilted to the full forward position. (Refer to BODY/STATIONARY GLASS/WINDSHIELD - REMOVAL)
  1. Remove door. (Refer to BODY/DOOR - FRONT/DOOR - REMOVAL)
  2. Remove the bolts attaching the hinge to the cowl. See Fig 1.
  3. Remove the bolts attaching the hinge to the windshield frame.
  4. Separate the hinge from the vehicle.

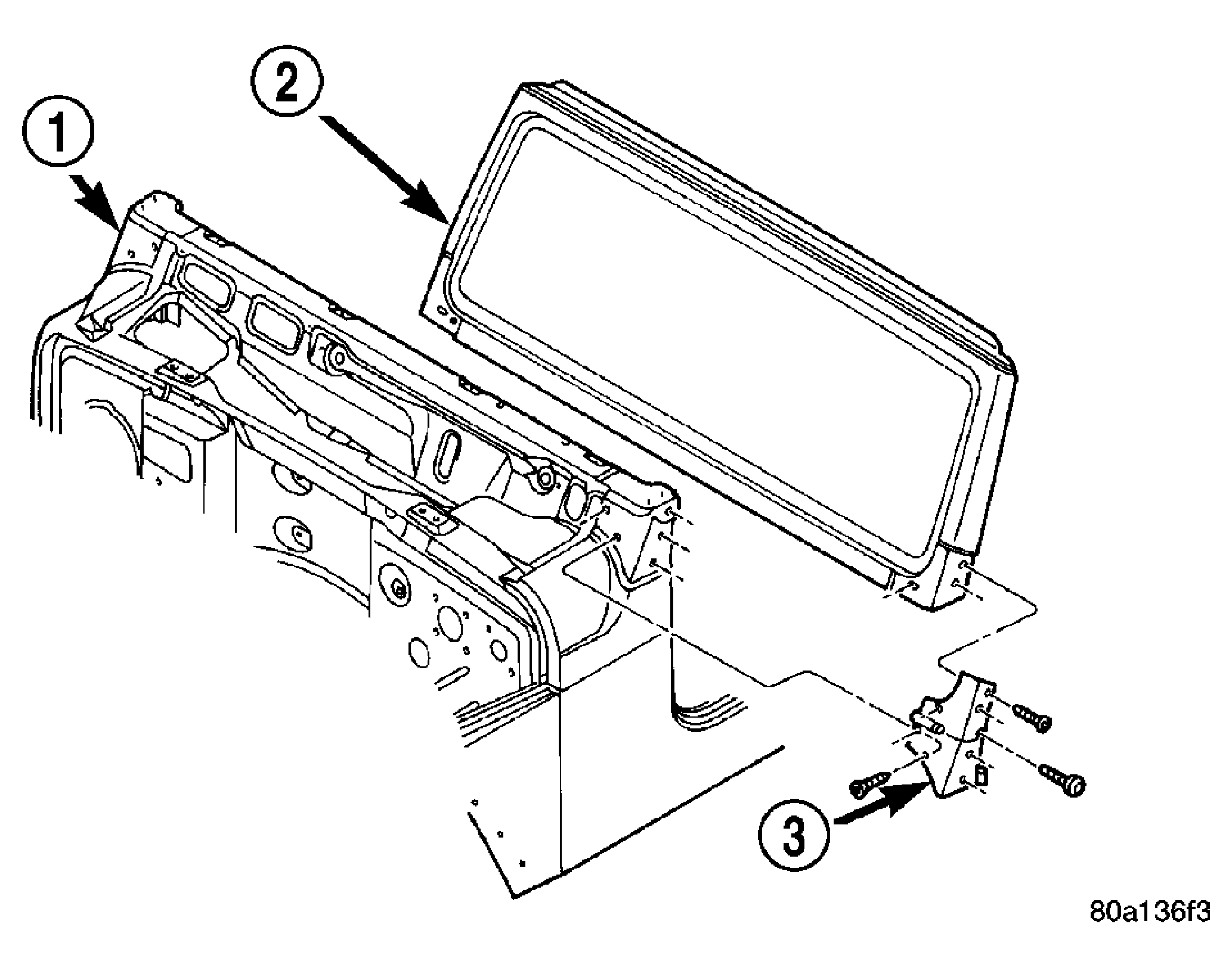

Fig 1: WINDSHIELD HINGE
GC0030677Courtesy of DAIMLERCHRYSLER CORP.
1 - COWL
2 - WINDSHIELD
3 - WINDSHIELD HINGE
