Full Door: Door: Removal
- Open the door.

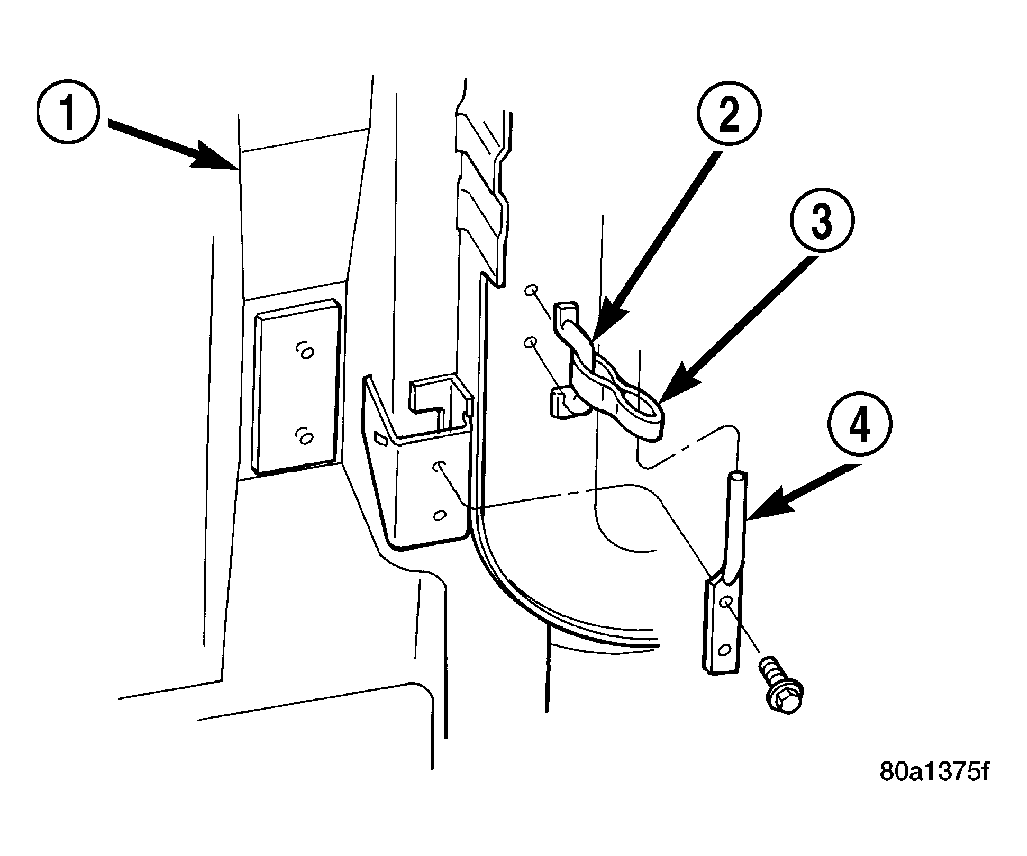

- Disconnect the door restraint strap from the pin. See Fig 1.
- Remove the nuts at the door hinge pivots and lift the door from the body.
| 1 - BODY |
| 2 - FOOTMAN LOOP |
| 3 - STRAP |
| 4 - RESTRAINT PIN |
| 1 - BODY |
| 2 - FOOTMAN LOOP |
| 3 - STRAP |
| 4 - RESTRAINT PIN |
