Front Seat Track Adjuster: Removal

Remove the seat. (Refer to BODY/SEATS/SEAT - REMOVAL)
Position aside the seat back cover. (Refer to BODY/SEATS/SEAT BACK COVER - REMOVAL)
Remove the recliner covers. (Refer to BODY/SEATS/SEAT BACK RECLINER - REMOVAL)
Position aside the seat cushion cover. (Refer to BODY/SEATS/SEAT CUSHION COVER - REMOVAL)
Disconnect the recliner cable ends and. See Fig 1 and Fig 2.
Remove the seat cushion to hinge bolts and. See Fig 1 and Fig 2.
Disconnect the folding release cable from the seat back recliner, if equipped. See Fig 1.
Remove the seat back assembly.
Remove the two bolts on either side of the seat cushion and remove the seat track assembly. See Fig 3.

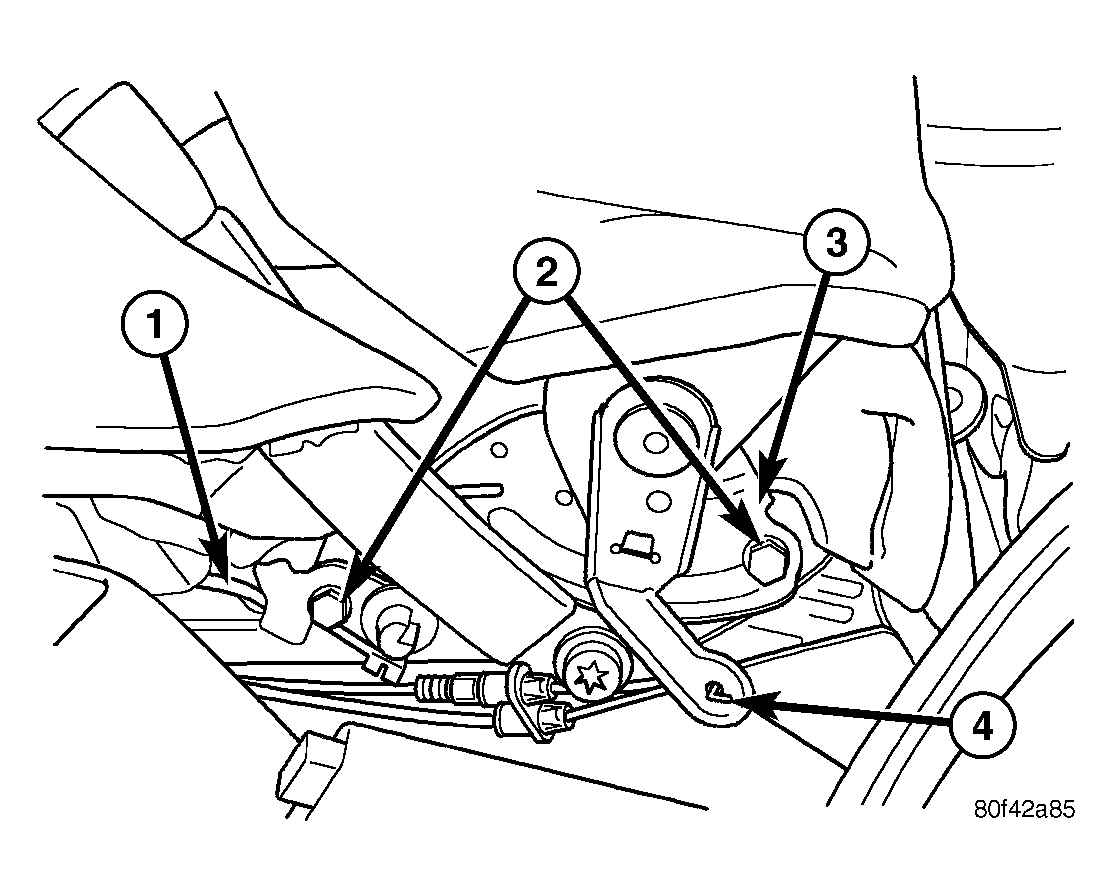

Fig 1: INBOARD SEAT CUSHION AND HINGE

Courtesy of DAIMLERCHRYSLER CORP.

1 - RECLINER CABLE

2 - SEAT CUSHION FRAME BOLTS

3 - SEAT CUSHION FRAME

4 - FOLDING RELEASE CABLE ASSEMBLY END

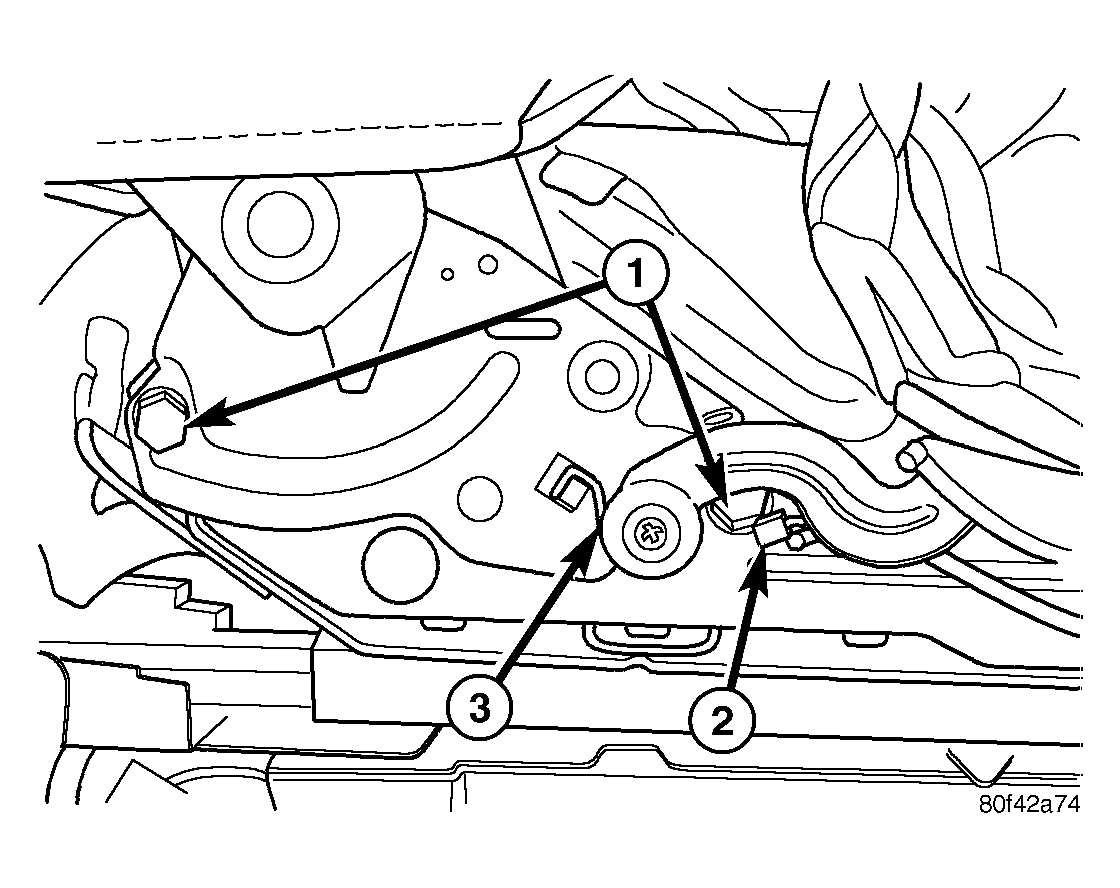

Fig 2: SEAT CUSHION AND HINGE

Courtesy of DAIMLERCHRYSLER CORP.

1 - SEAT CUSHION FRAME BOLTS

2 - RECLINER CABLE END

3 - RECLINER HANDLE

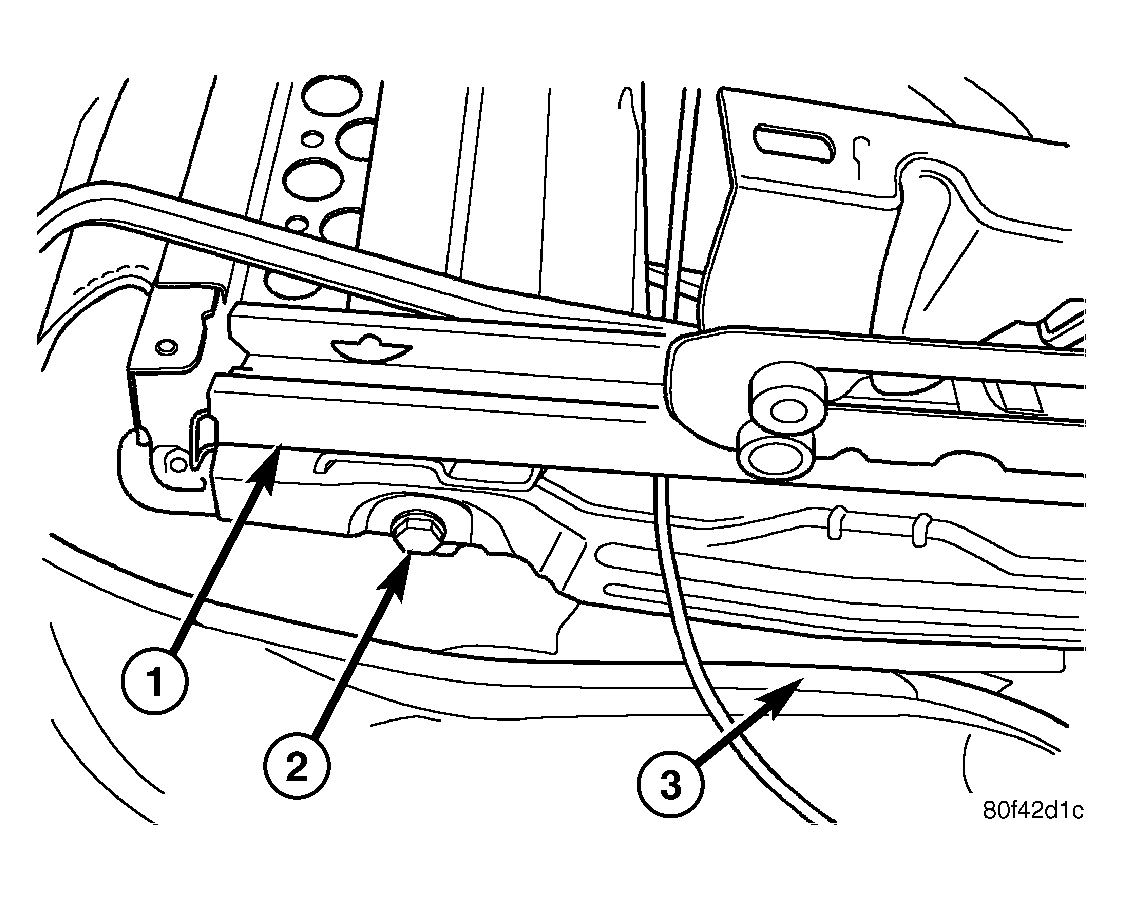

Fig 3: FRONT SEAT CUSHION BOLTS

Courtesy of DAIMLERCHRYSLER CORP.

1 - SEAT TRACK

2 - SEAT CUSHION FRAME BOLT

3 - SEAT CUSHION
