Front Seat: Removal

  1. Disengage seat belt electrical connector. See Fig 1.
  2. Remove the bolts attaching the seat adjuster to the floor panel. See Fig 2.
  3. Remove the seat from the vehicle.

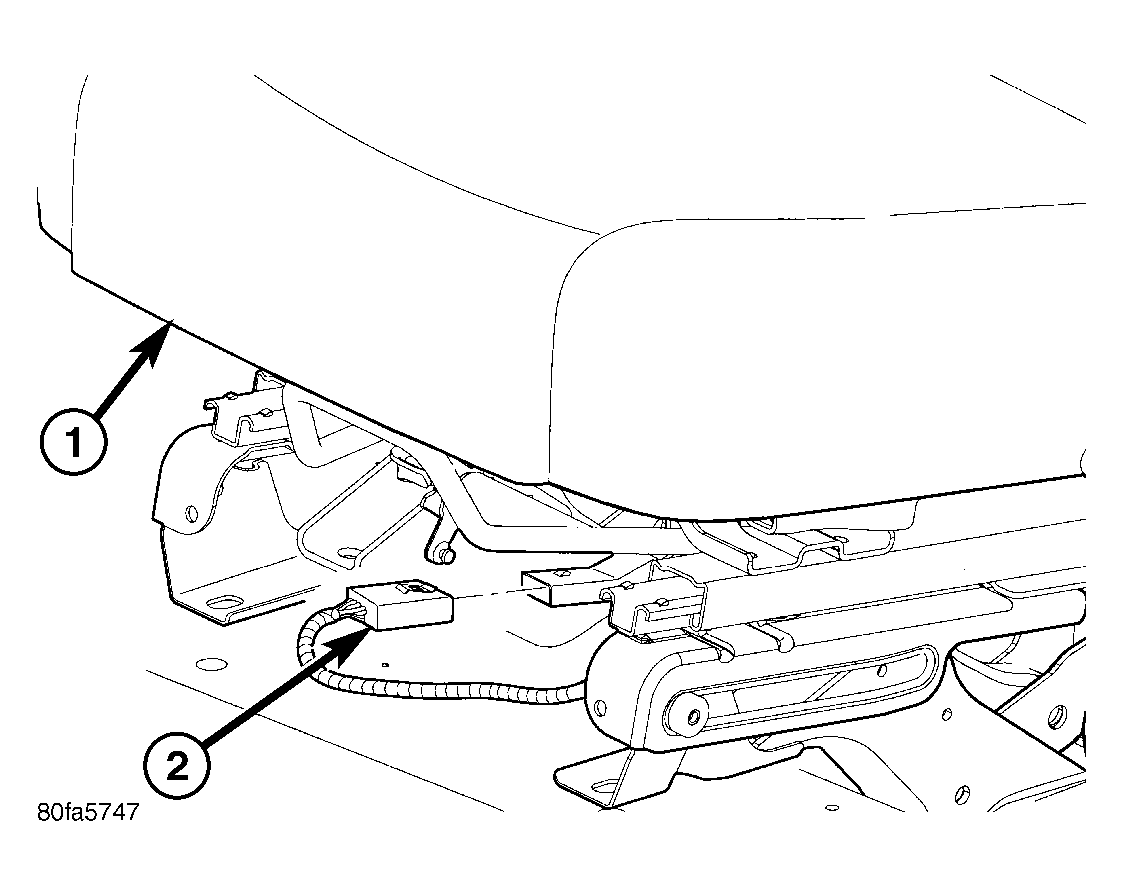

Fig 1: SEAT BELT ELECTRICAL
GC0030650Courtesy of DAIMLERCHRYSLER CORP.
1 - FRONT SEAT
2 - SEAT BELT ELECTRICAL CONNECTOR

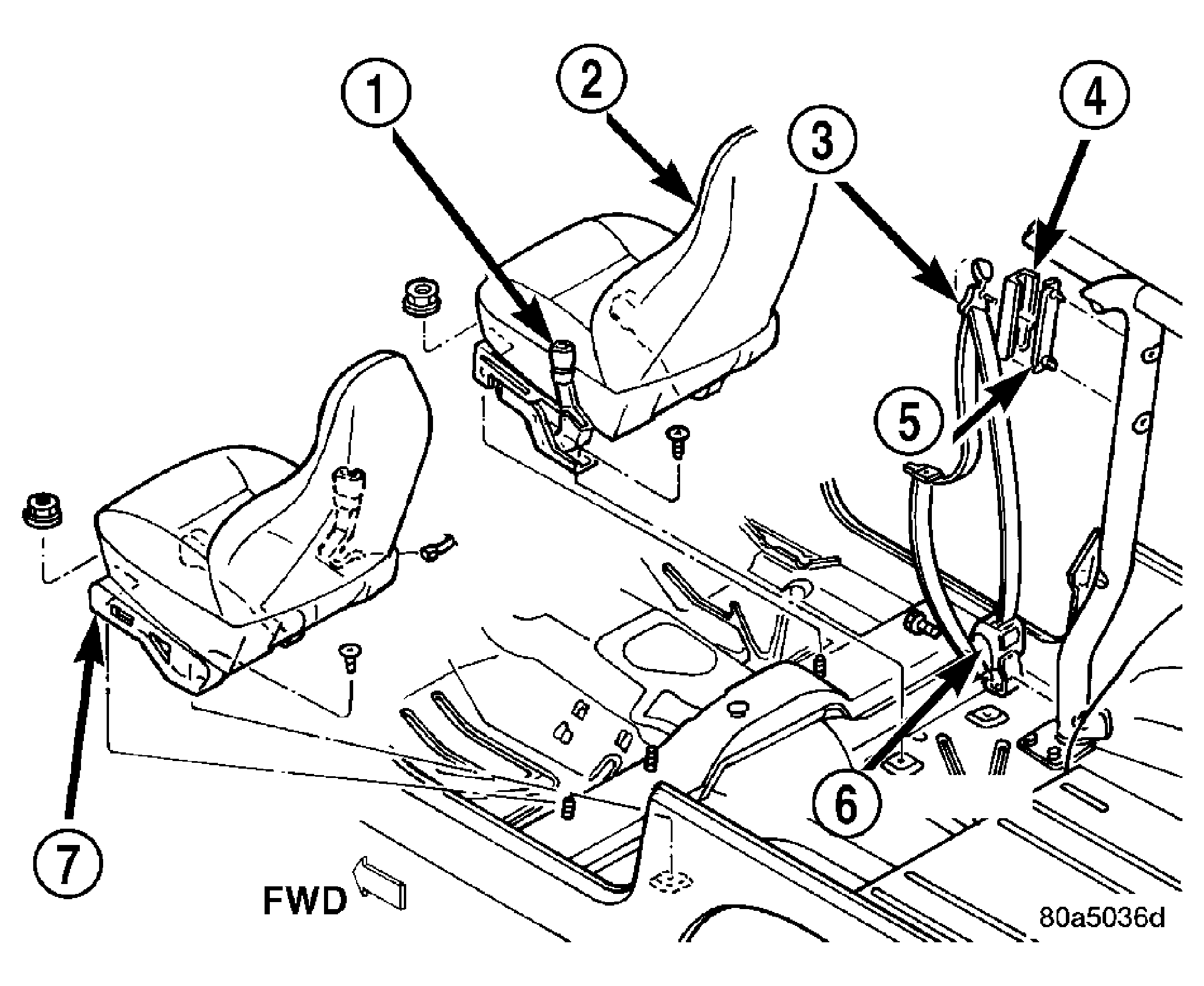

Fig 2: BUCKET SEAT REMOVAL
GC0030649Courtesy of DAIMLERCHRYSLER CORP.
1 - BUCKLE
2 - SEAT
3 - TURNING LOOP
4 - COVER
5 - ADJUSTER
6 - RETRACTOR
7 - MOUNTING BRACKET
