Front Seat Folding Release Cable: Removal

1. Remove the seat. (Refer to BODY/SEATS/SEAT - REMOVAL)
2. Disconnect the release cable folding end. See Fig 1.
3. Remove the inboard recliner. (Refer to BODY/SEATS/SEAT BACK RECLINER - REMOVAL)
4. Disconnect the release cable assembly at the inboard recliner, from the support bracket. See Fig 2.
5. Disconnect the cable assembly at the slider and remove. See Fig 3

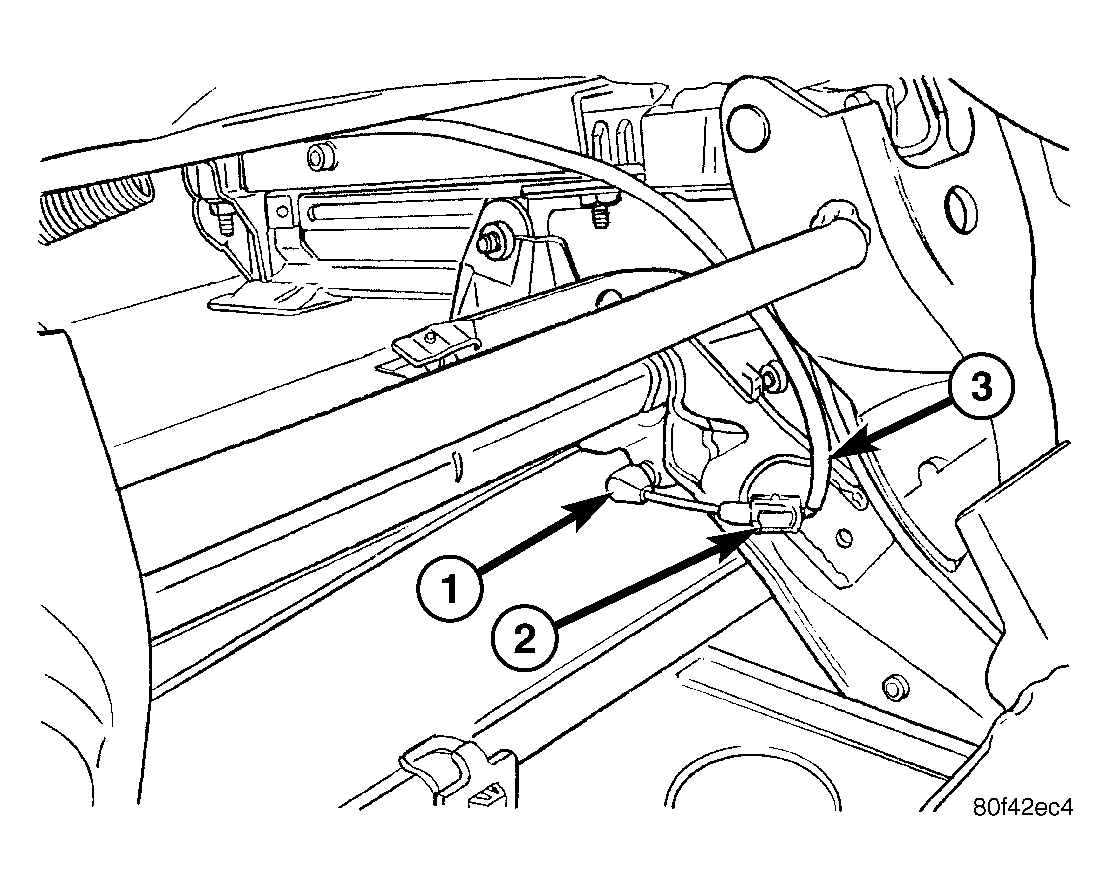

Fig 1: RELEASE CABLE/FOLDING END

Courtesy of DAIMLERCHRYSLER CORP.

1 - CABLE END CLIP

2 - CABLE HOUSING

3 - CABLE ASSEMBLY

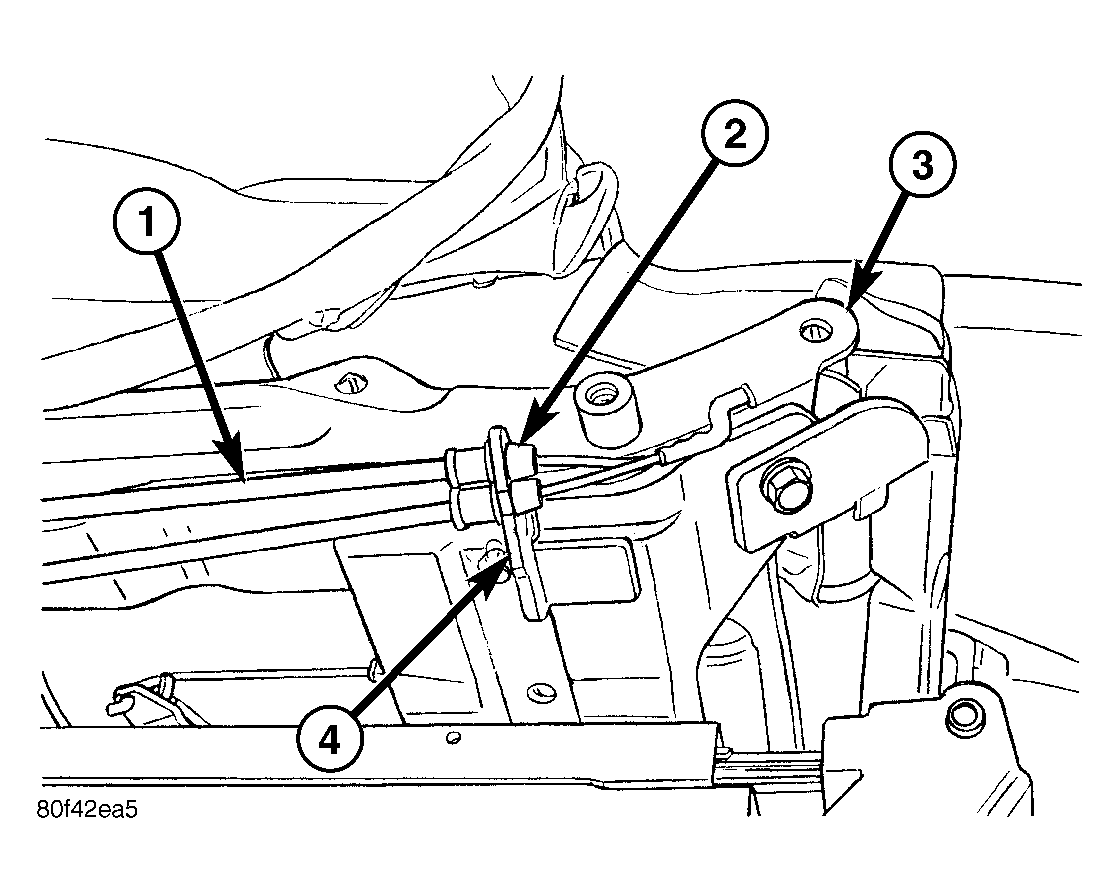

Fig 2: RELEASE CABLE/RECLINER END

Courtesy of DAIMLERCHRYSLER CORP.

1 - CABLE ASSEMBLY

2 - CABLE HOUSING

3 - SEAT CUSHION FRAME

4 - CABLE SUPPORT BRACKET

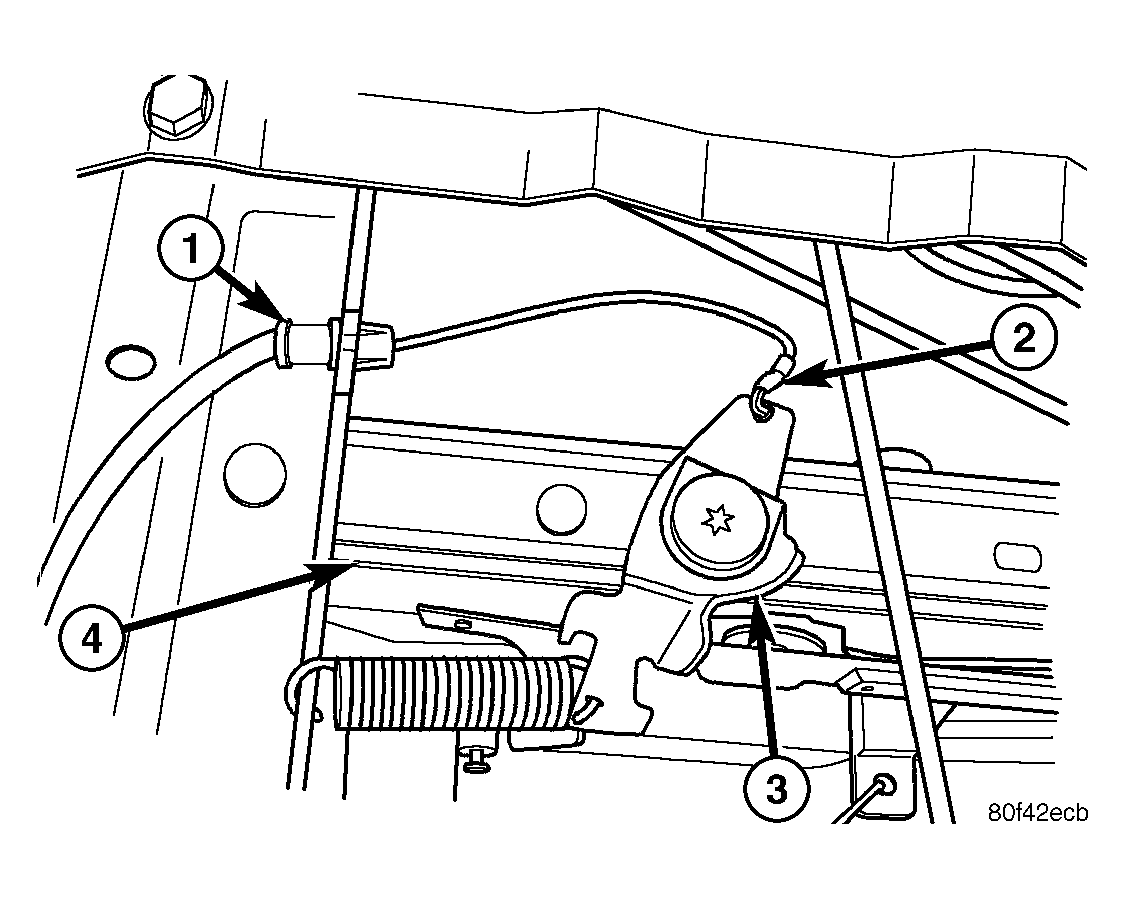

Fig 3: RELEASE CABLE/SLIDER END

Courtesy of DAIMLERCHRYSLER CORP.

1 - CABLE HOUSING

2 - CABLE END

3 - SLIDER

4 - SEAT CUSHION FRAME
