Front Seat Back Recliner/Cover: Removal

  1. Remove the seat. (Refer to BODY/SEATS/FRONT SEAT - REMOVAL)
  2. Disconnect the j-straps at the lower edge of the seat back and position aside.
  3. Disconnect the rear j-straps of the cushion and position aside.

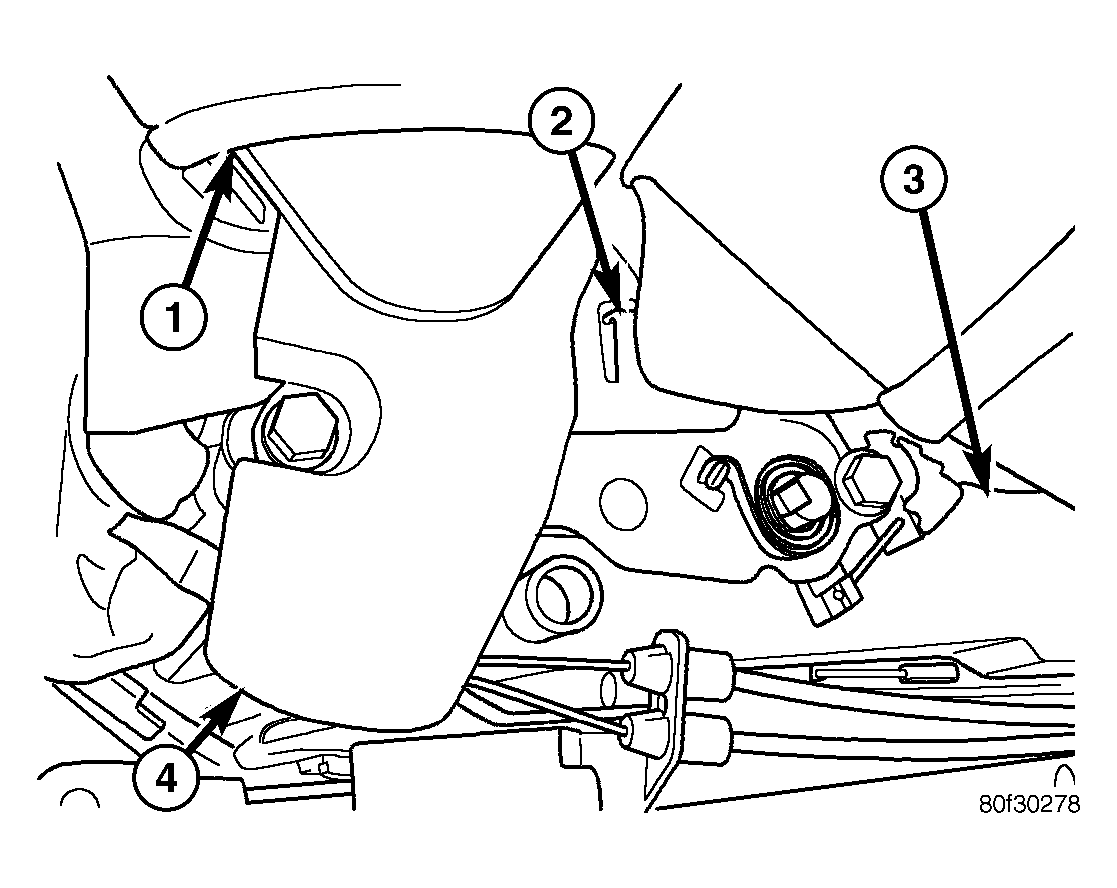

  4. Using a small flat bladed tool, release the recliner cover retaining tab and remove. See Figure.

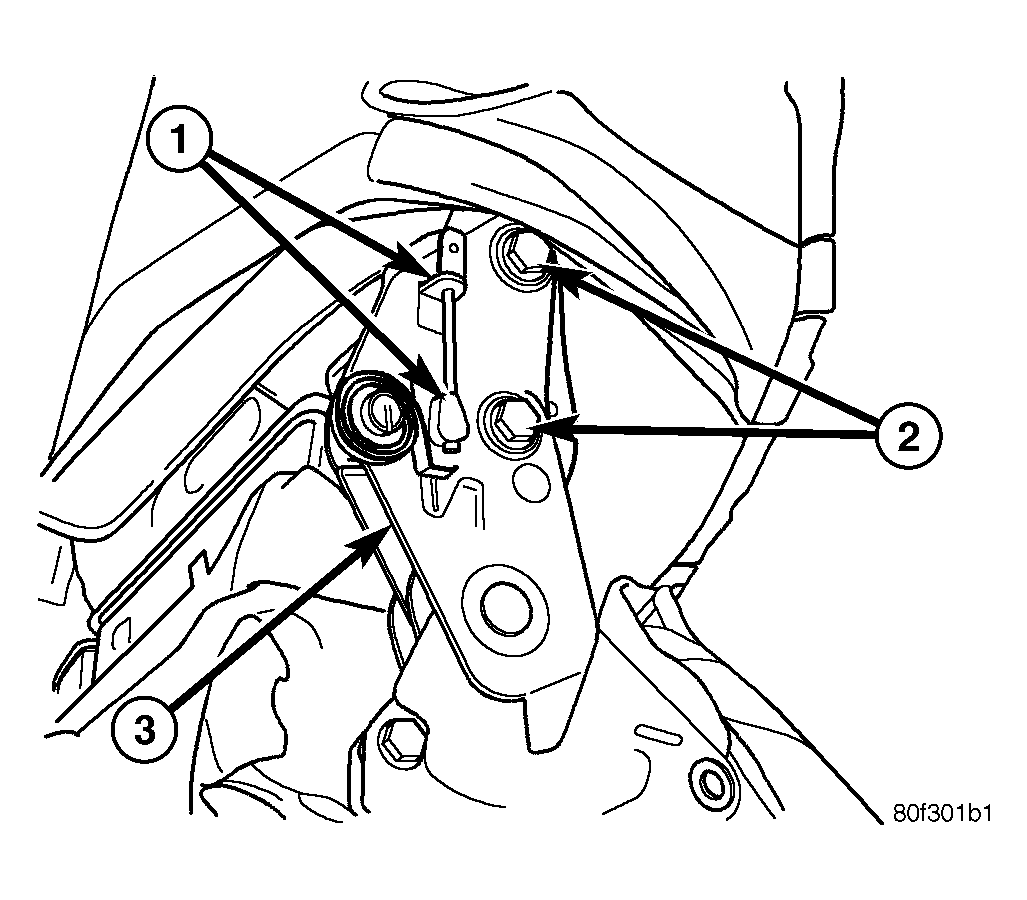

  5. Disconnect the seat back dump cables. See Figure.
  6. Remove the two seat back bolts.
  7. Remove the two seat cushion frame bolts.
  8. Disconnect the recliner cable.
  9. For the inboard recliner, disconnect the forward folding cable assembly, if equipped.
