Center Console: Removal

Remove the cup holder, if equipped. (Refer to BODY/INTERIOR/CENTER CONSOLE CUPHOLDER ASSEMBLY - REMOVAL)

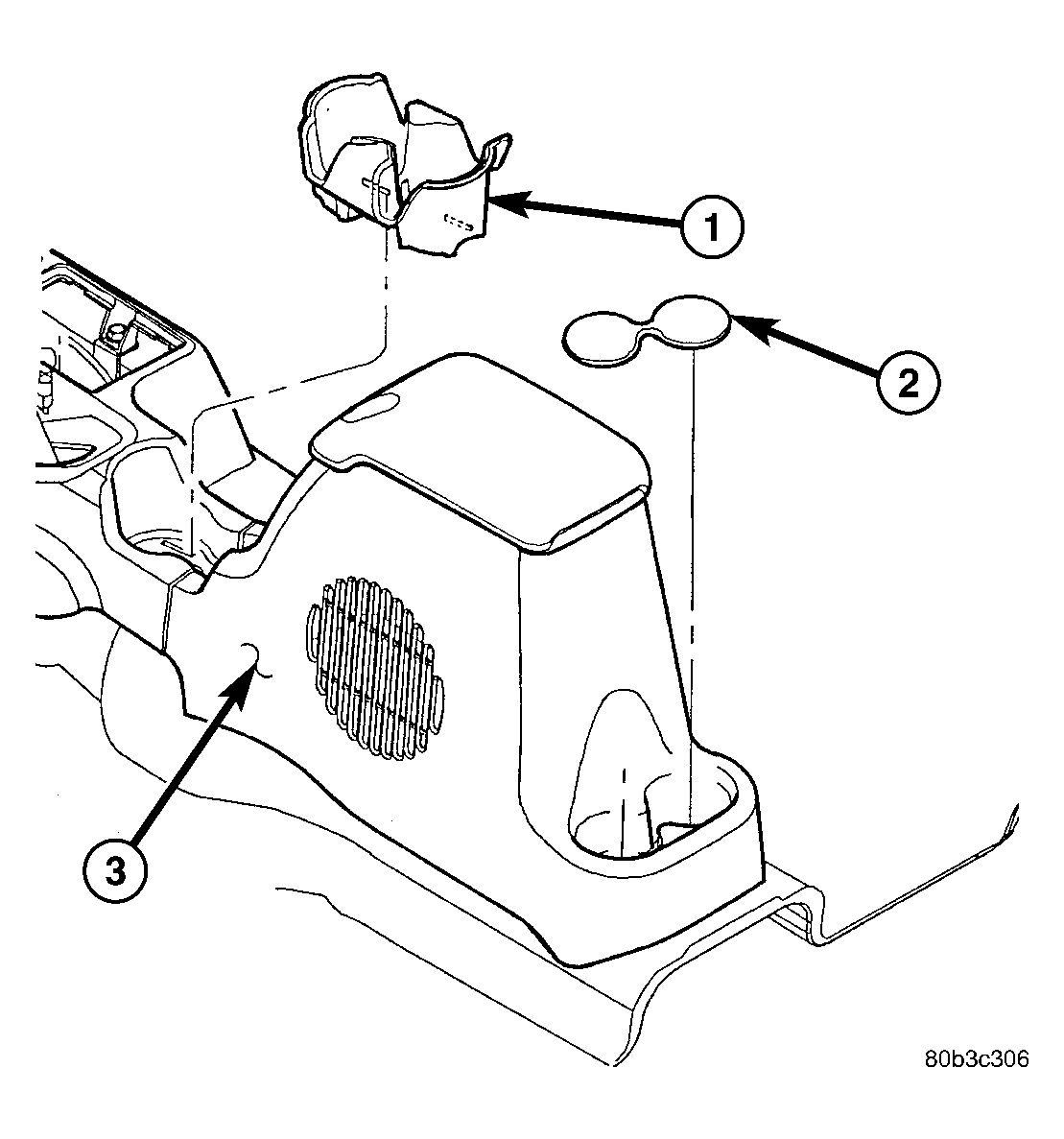

On full console models remove the trim disc from the bottom of the cup holder. See Figure.
Remove the automatic transmission shift bezel, if equipped. (Refer to BODY/INTERIOR/SHIFT BEZEL - REMOVAL)
Using a trim stick C-4755 or equivalent, remove the air bag deactivation switch and disconnect the electrical connector, if equipped.
Remove the bolt(s) attaching the console to the floor pan and. See Fig 1 and Fig 2.
Shift transfer case to four low position.
Shift transmission to L (2nd gear for manual transmission) and remove the console assembly.

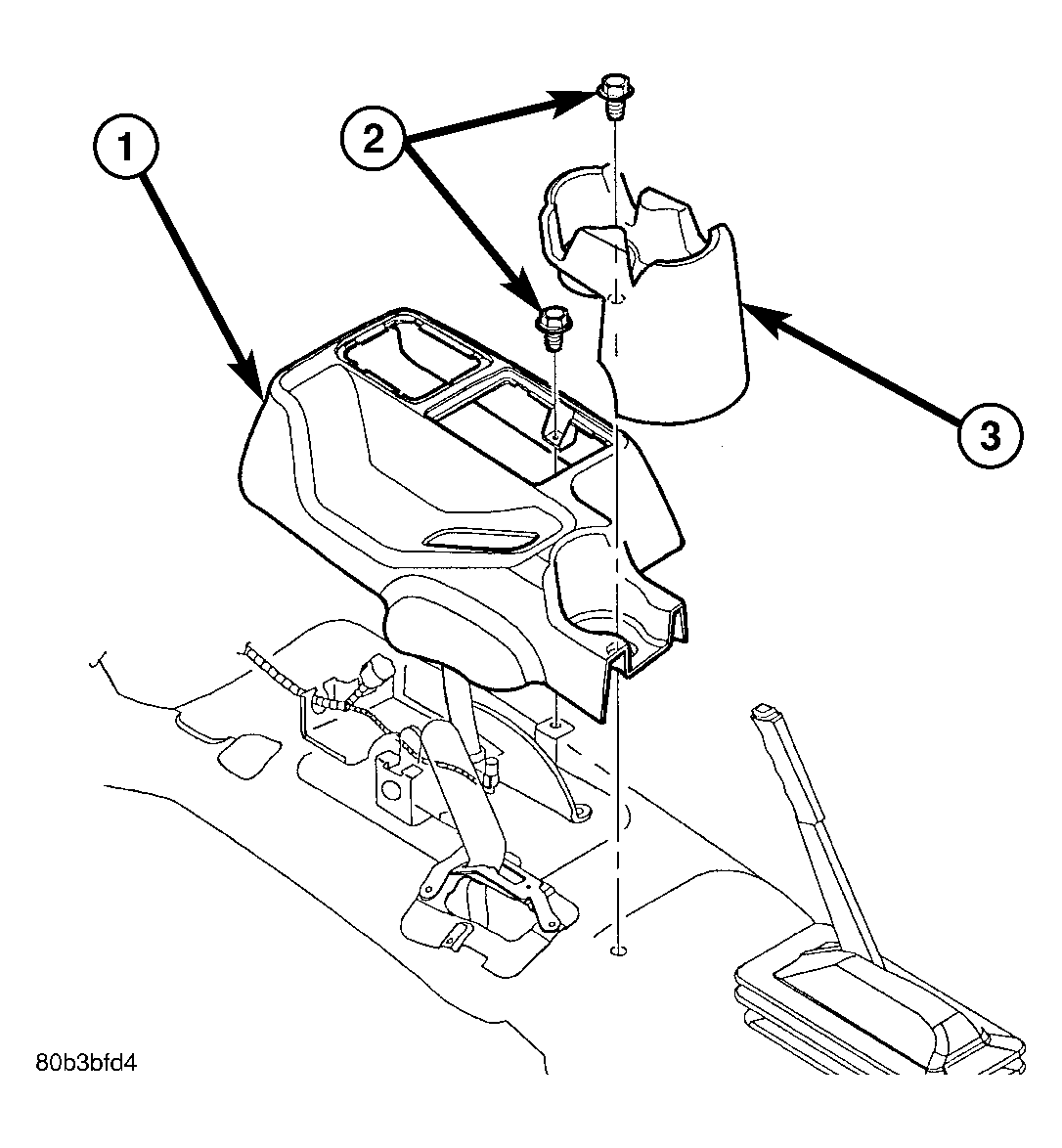

Fig 1: MINI CONSOLE

Courtesy of DAIMLERCHRYSLER CORP.

1 - MINI CONSOLE

2 - BOLTS

3 - CUPHOLDER

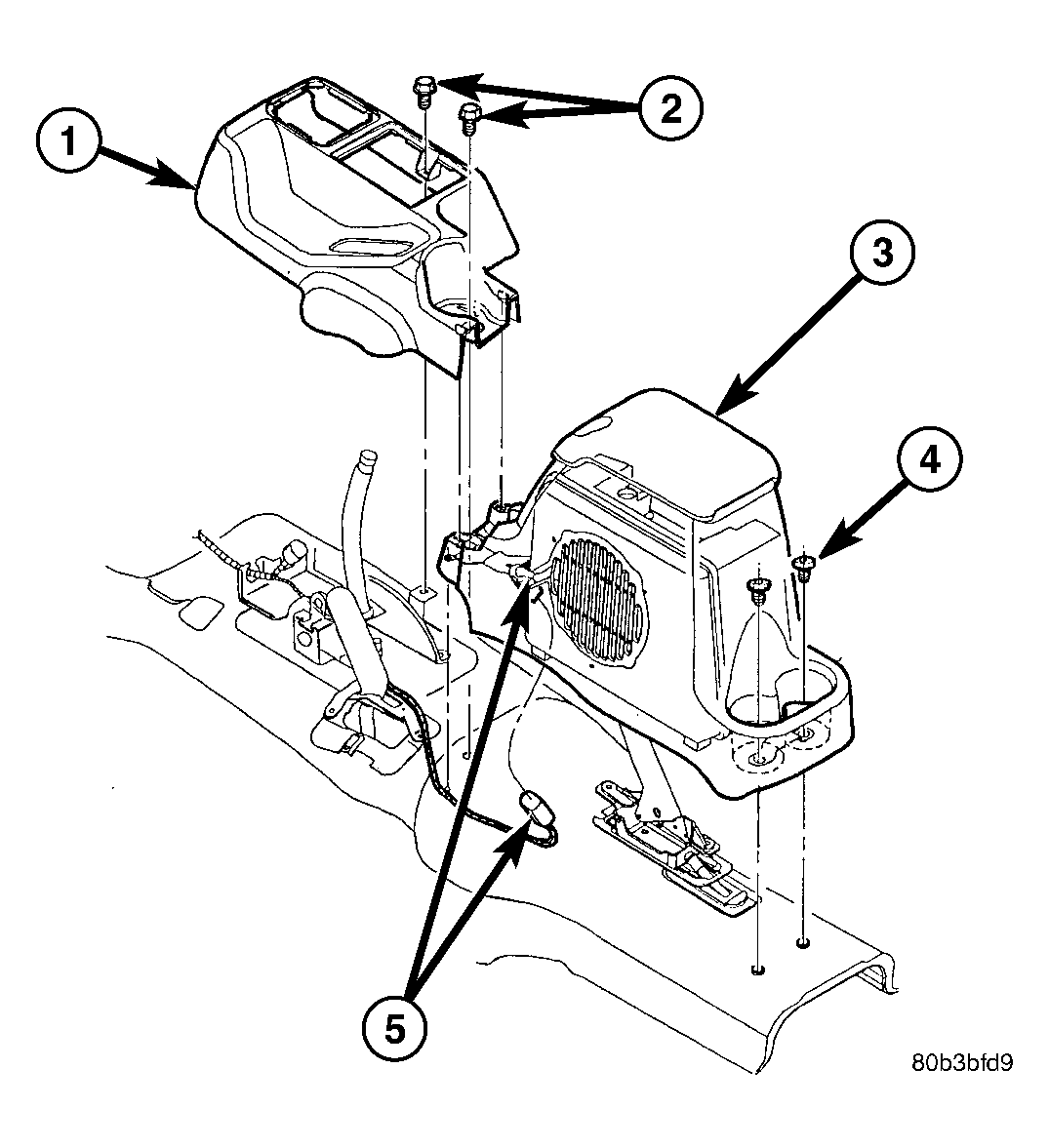

Fig 2: FULL CONSOLE

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT CONSOLE

2 - BOLTS

3 - REAR TOWER

4 - BOLTS (2)

5 - ELECTRICAL CONNECTOR
