Shift Bezel - Automatic Transmission: Removal

1. Pull shift lever handle off of shift lever. See Fig 1.
2. Using a trim stick C-4755 or equivalent, remove the shift bezel.
3. Twist and remove the bezel light.

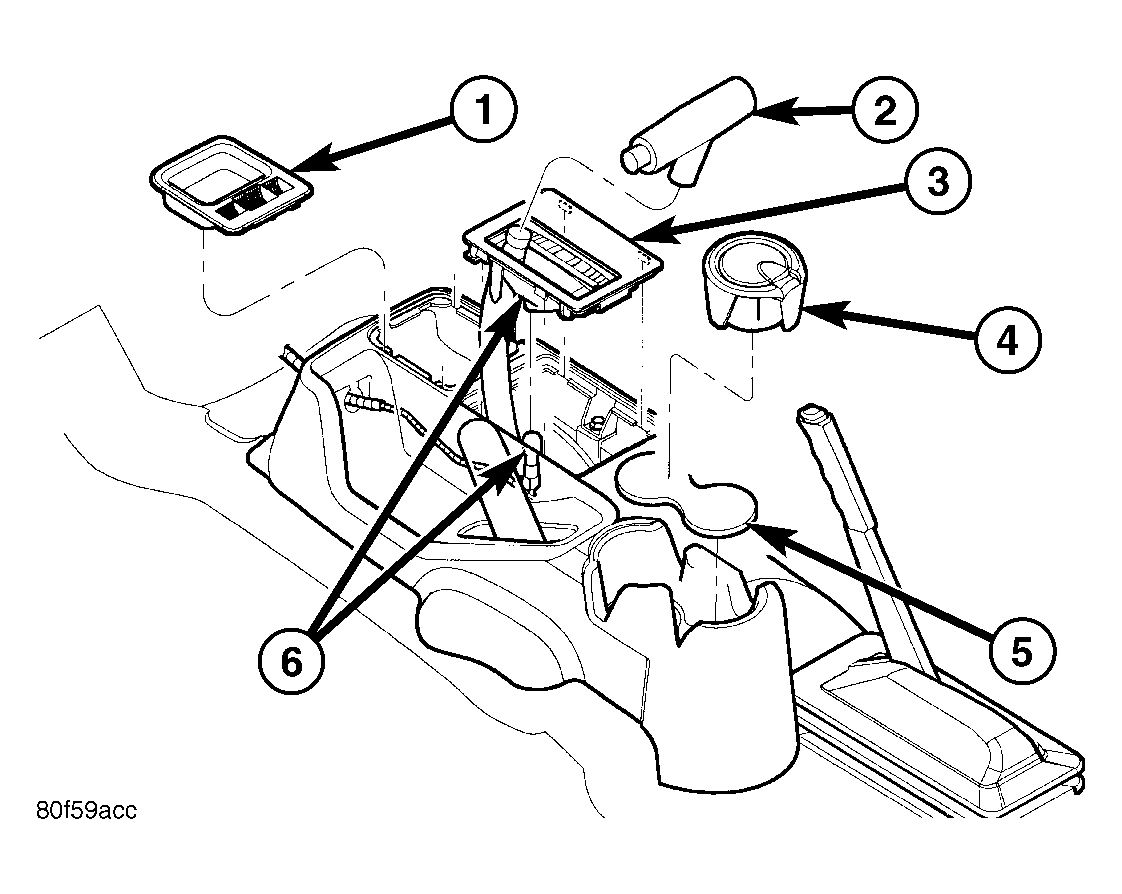

Fig 1: SHIFT BEZEL

Courtesy of DAIMLERCHRYSLER CORP.

1 - COIN TRAY

2 - TRANSMISSION SHIFT LEVER HANDLE

3 - SHIFT BEZEL

4 - ASH RECEIVER (IF EQUIPPED)

5 - CUP HOLDER MAT

6 - SHIFT BEZEL LIGHT/SOCKET
