B10BB-Left Heated Seat Switch Input Circuit Stuck: Notes

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

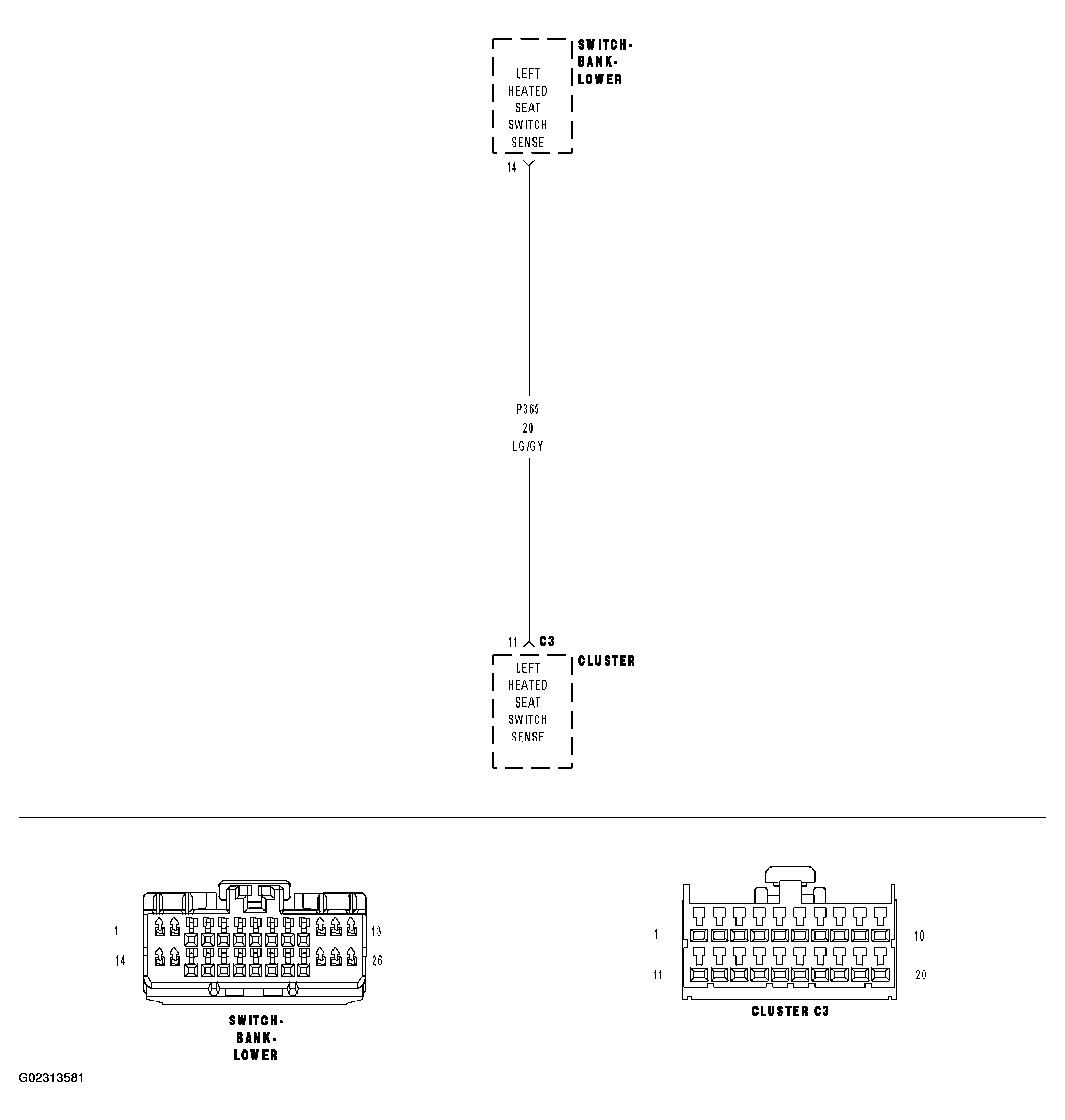

Fig 1: Left Heated Seat Switch Input Circuit Schematic

Courtesy of DAIMLERCHRYSLER CORPORATION

For the Heated Seat System circuit diagram (Refer to SCHEMATICS AND DIAGRAMS )

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

When Monitored: Ignition on.
Set Condition: This code is set when the Cluster detects a stuck heated seat switch.

Possible Causes

(P365) LEFT HEATED SEAT SWITCH SENSE PARTIALLY SHORTED TO GROUND

LOWER SWITCH BANK

CLUSTER
