Schematics And Diagrams

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

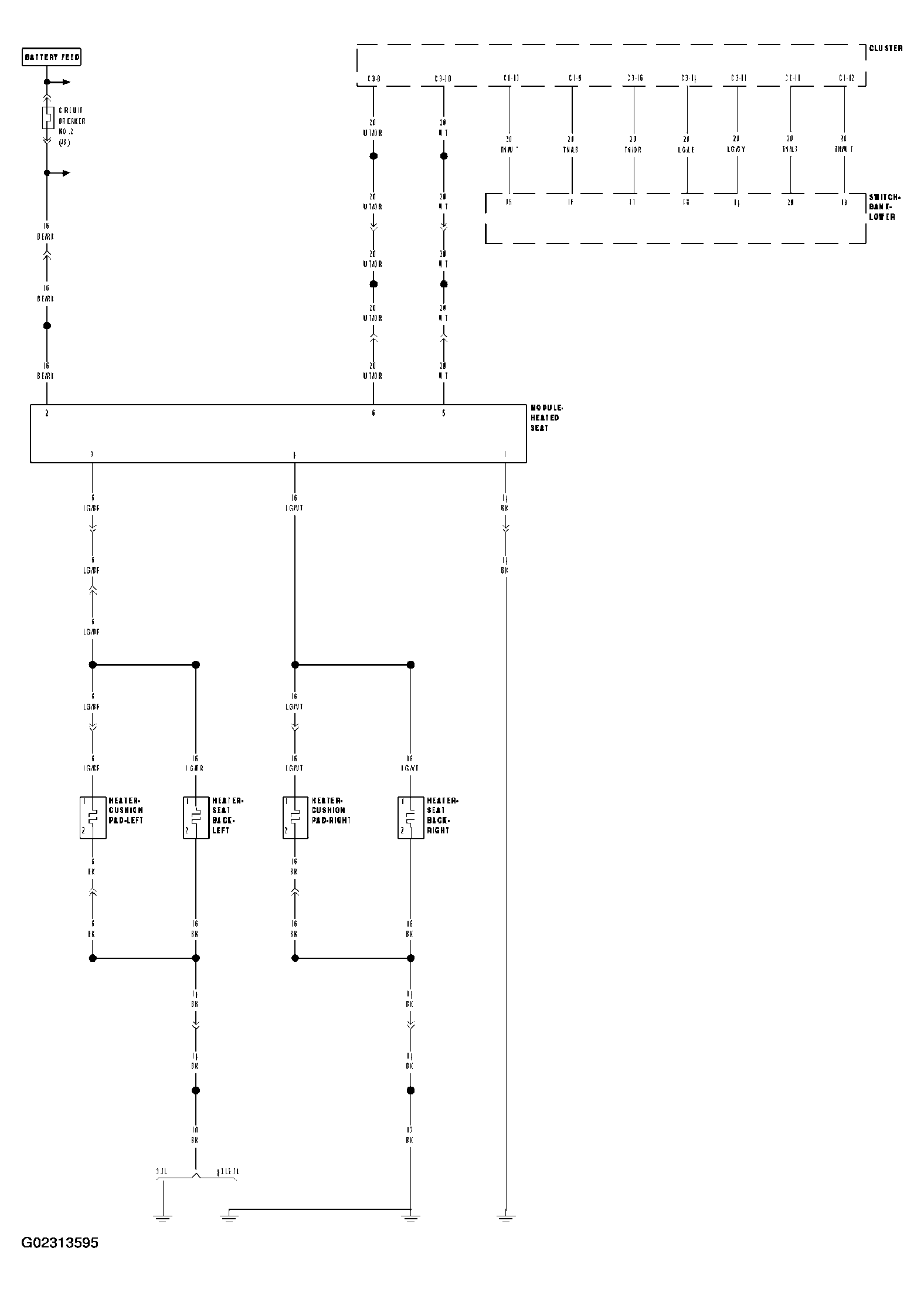

Fig 1: Heated Seat System
G02313595Courtesy of DAIMLERCHRYSLER CORPORATION
