B1096-Front Right Seat Heater Control Circuit Low: Notes

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

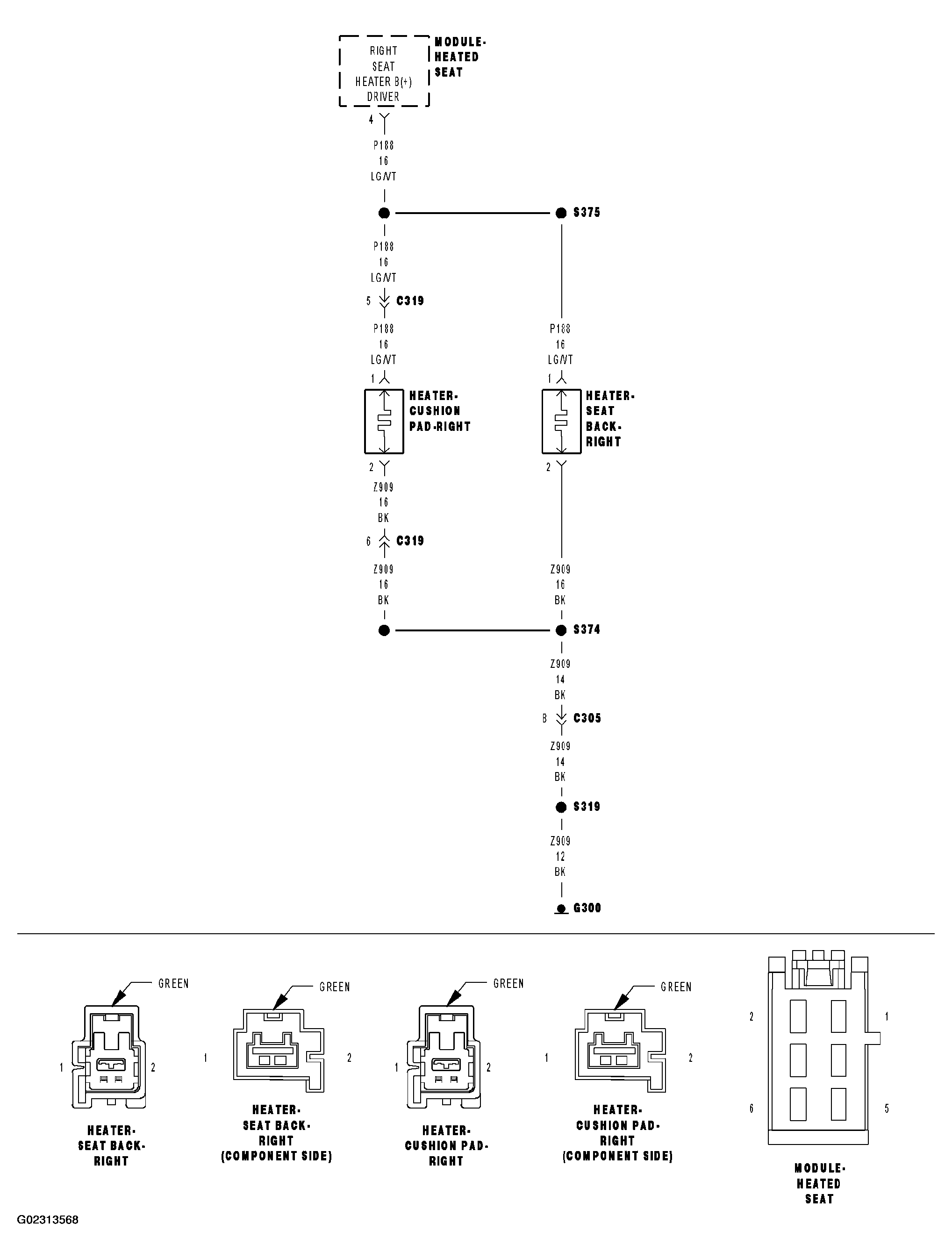

Fig 1: Front Right Seat Heater Control Circuit Schematic

Courtesy of DAIMLERCHRYSLER CORPORATION

For the Heated Seat System circuit diagram (Refer to SCHEMATICS AND DIAGRAMS )

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

When Monitored: Ignition on, during the heated seat operation.
Set Condition: This code is set immediately after the Heated Seat Module detects the control circuit shorted to ground.

Possible Causes

(P188) LEFT SEAT HEATER B(+) DRIVER SHORTED TO GROUND

SEAT HEATER ELEMENT PIGTAIL HARNESS SHORTED

SEAT CUSHION HEATER ELEMENT SHORTED

SEAT BACK HEATER ELEMENT SHORTED

HEATED SEAT MODULE
