B1085-Left Heated Seat Switch Input Circuit Low: Notes

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

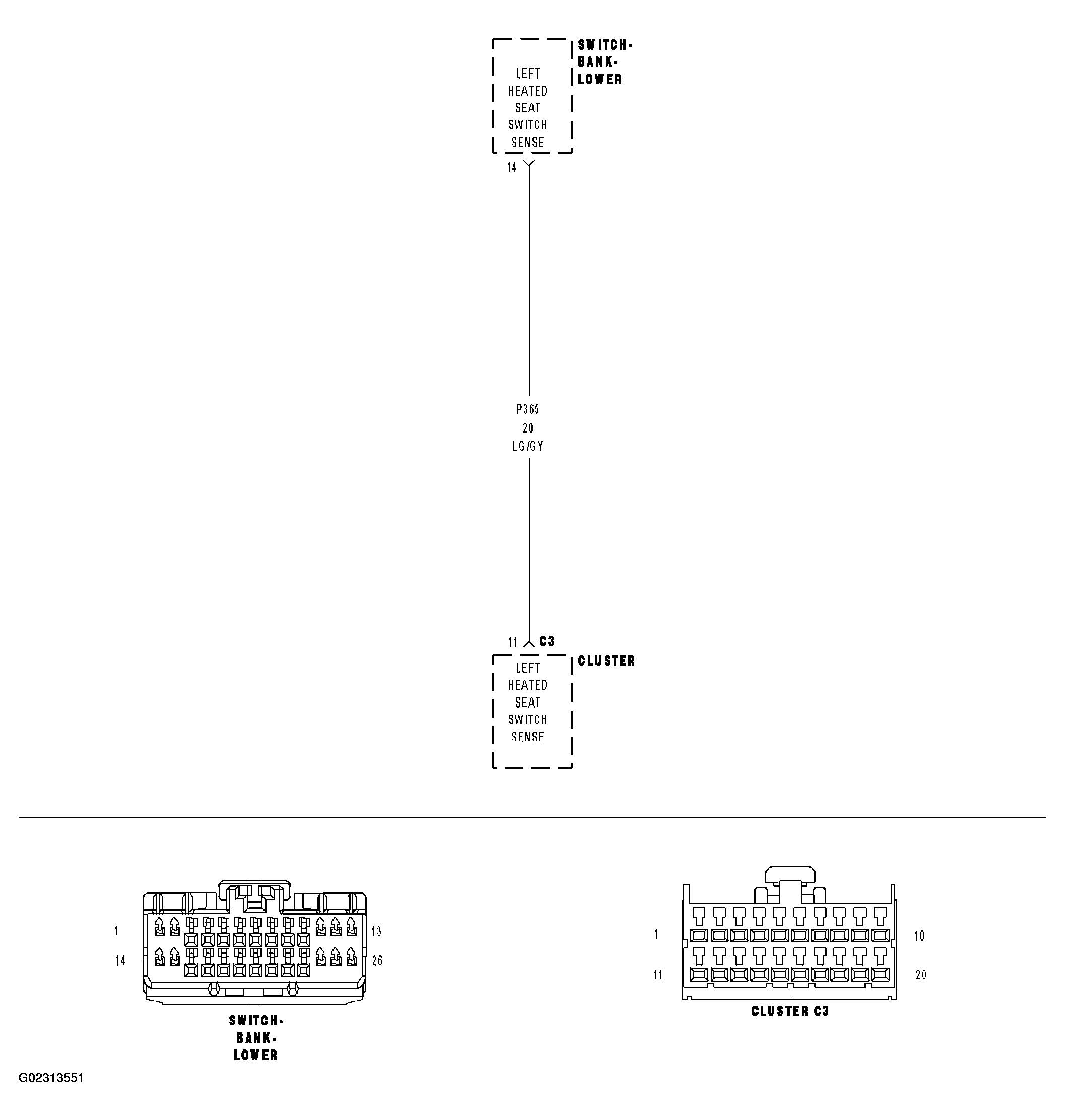

Fig 1: Left Heated Seat Switch Input Circuit Schematic

Courtesy of DAIMLERCHRYSLER CORPORATION

For the Heated Seat System circuit diagram (Refer to SCHEMATICS AND DIAGRAMS )

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

When Monitored: Ignition on.
Set Condition: This code is set when the Cluster detects the heated seat switch sense circuit is shorted low.

Possible Causes

(P365) LEFT HEATED SEAT SWITCH SENSE SHORTED TO GROUND

LOWER SWITCH BANK

CLUSTER
