Park Assist Sensor: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

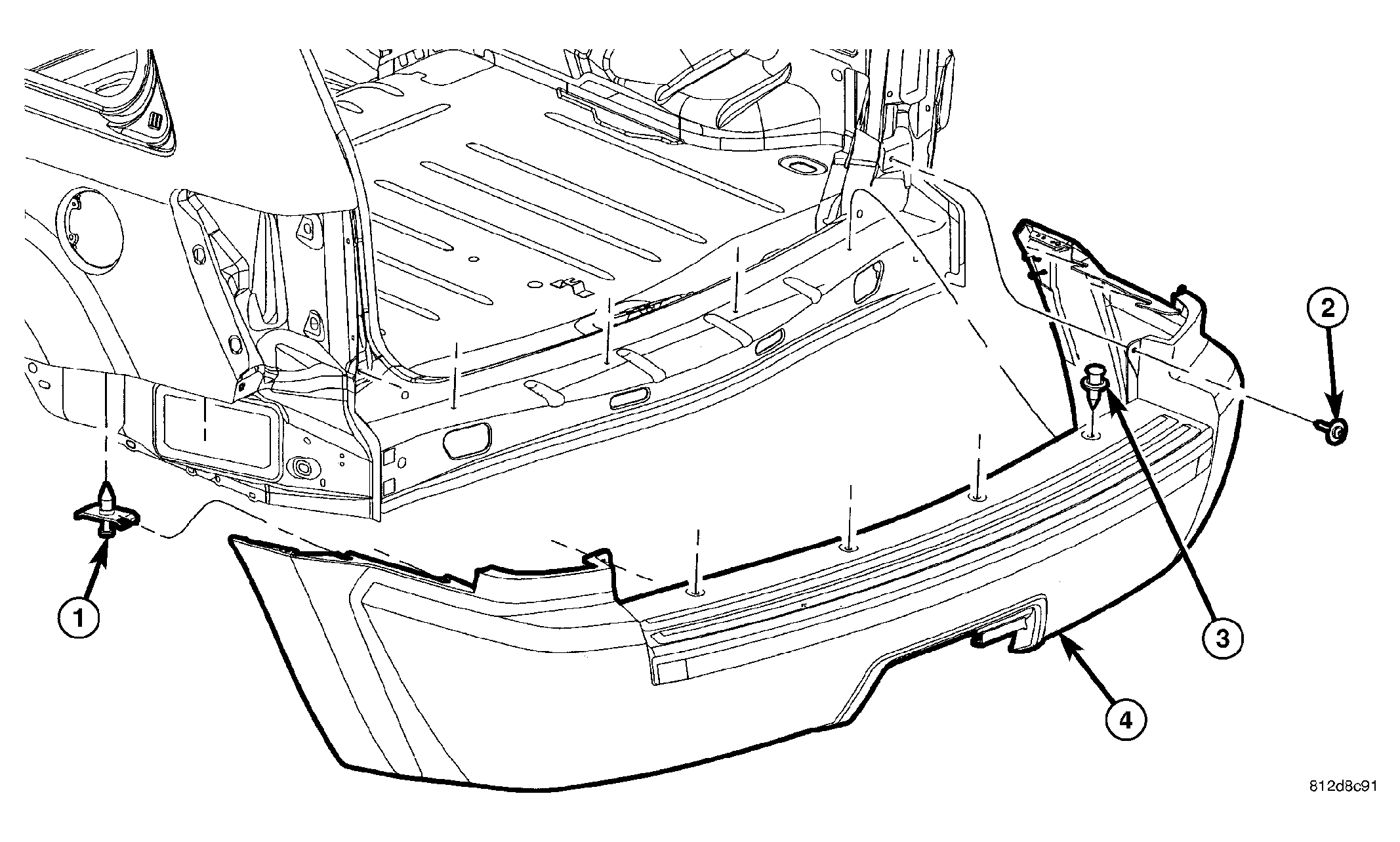

Fig 1: Fascia

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect and isolate the battery negative cable.
Remove rear fascia (Refer to FRAME & BUMPERS/BUMPERS/REAR FASCIA - REMOVAL) .

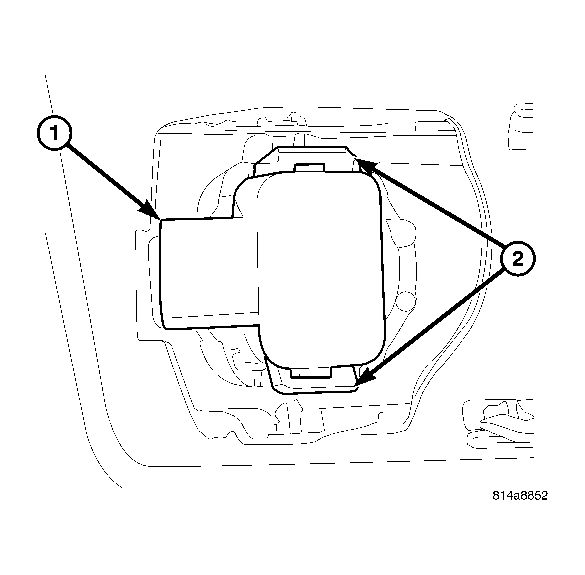

Fig 2: Park Assist Sensor From Fascia Removal/Installation
Courtesy of DAIMLERCHRYSLER CORP.
Unsnap Park Assist Sensor (1) from the retaining housing (2) and remove from fascia.

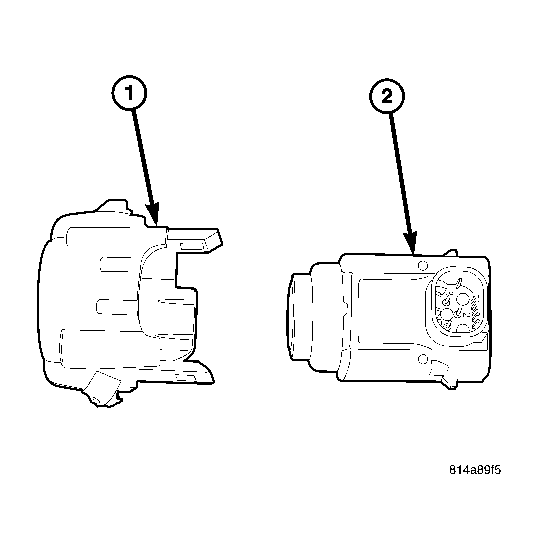

Fig 3: Park Assist Sensor Bracket/Bezel Removal/Installation
Courtesy of DAIMLERCHRYSLER CORP.
If the bracket (1) holding the sensor (2) is damaged, unclip it from the rear fascia with the sensor and then separate them.
