Section 590 (Frame & Bumpers): Fascia-Rear: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Fascia

Courtesy of DAIMLERCHRYSLER CORP.

Open the liftgate.
Remove the four push pin fasteners (3) and 2 screws (2) at the step pad area.

Fig 2: Fascia To Wheel Liners
Courtesy of DAIMLERCHRYSLER CORP.
Remove the plastic rivets at the wheel wells (1).
Remove the two push pin fasteners and remove the rear wheel splash shields.

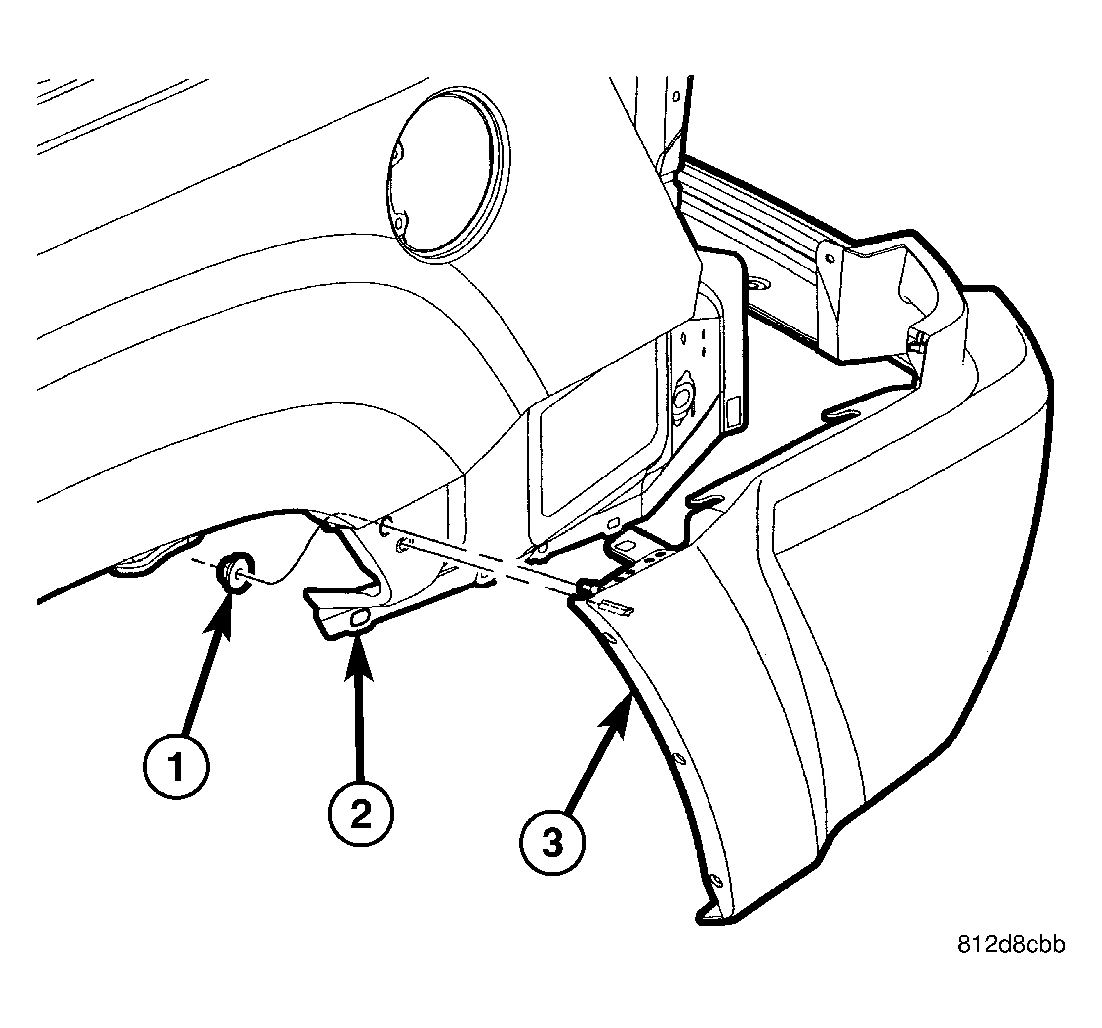

Fig 3: Fascia To Quarter Panel
Courtesy of DAIMLERCHRYSLER CORP.
Remove the nuts (1) at the back sides of the quarter panels (2).

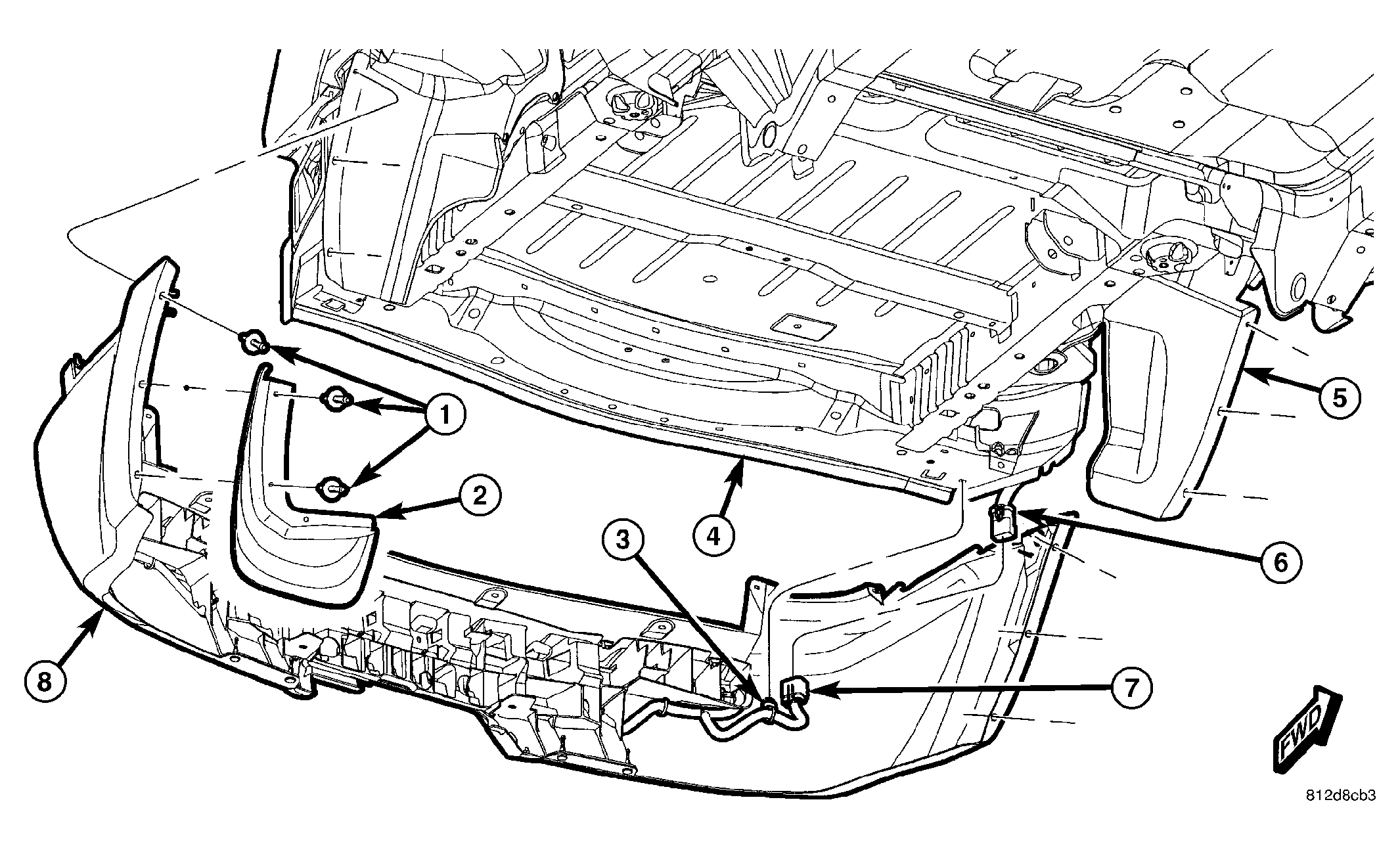

Fig 4: Fascia To Wheel Liners
Courtesy of DAIMLERCHRYSLER CORP.
Remove the fascia (8) and disconnect the electrical connector (6 & 7).
Remove the four push pin fasteners and the energy absorber.
Disconnect the park assist electrical sensors.
Remove the park assist sensors.
