Circuit Schematic

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

For the Amplifier circuit diagram (Refer to ELECTRICAL/AUDIO - SCHEMATICS AND DIAGRAMS) .

For a complete wiring diagram refer to SYSTEM WIRING DIAGRAMS .

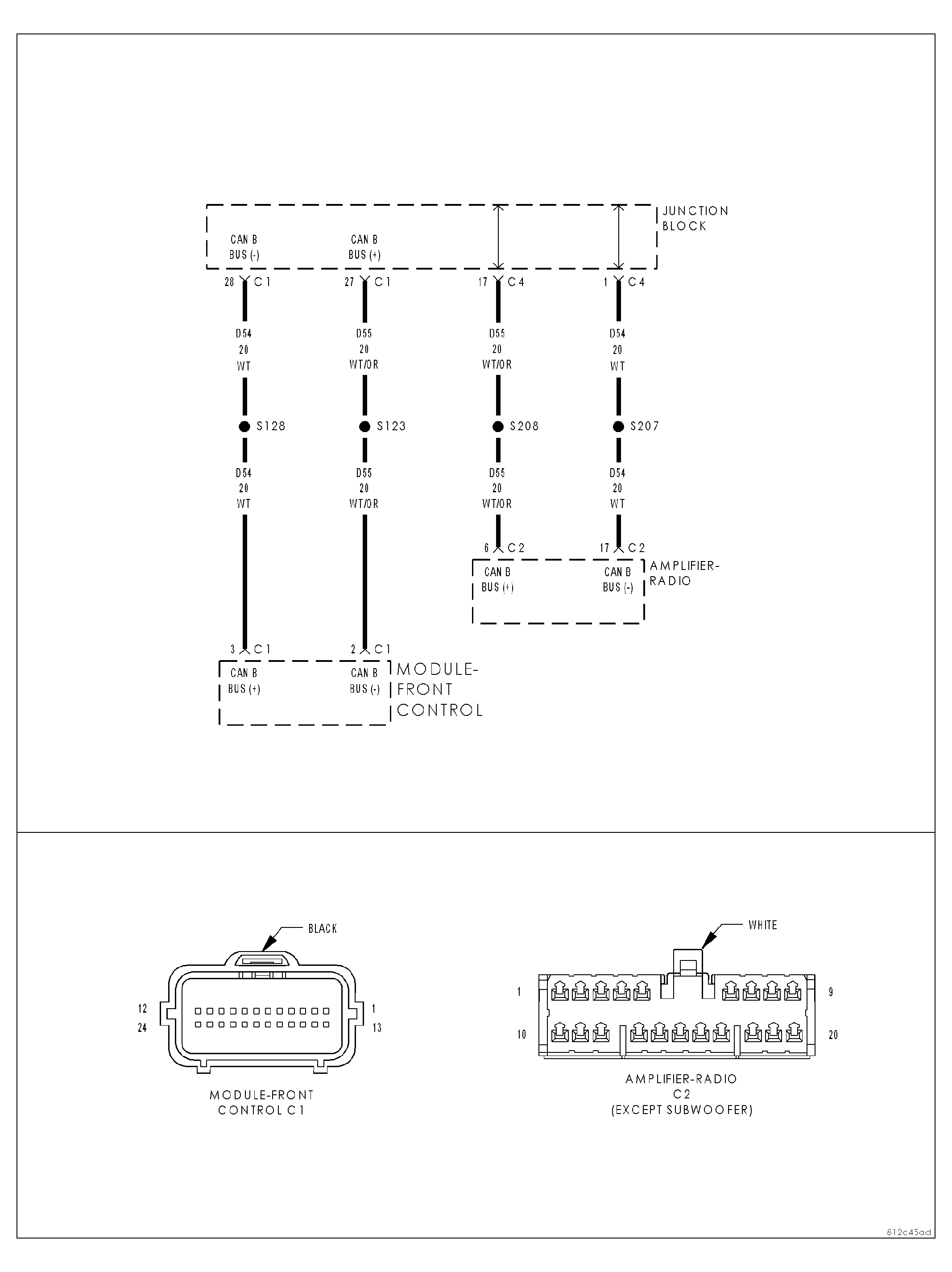

Fig 1: Amplifier Wiring Schematic

Courtesy of DAIMLERCHRYSLER CORP.
