Schematics And Diagrams

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

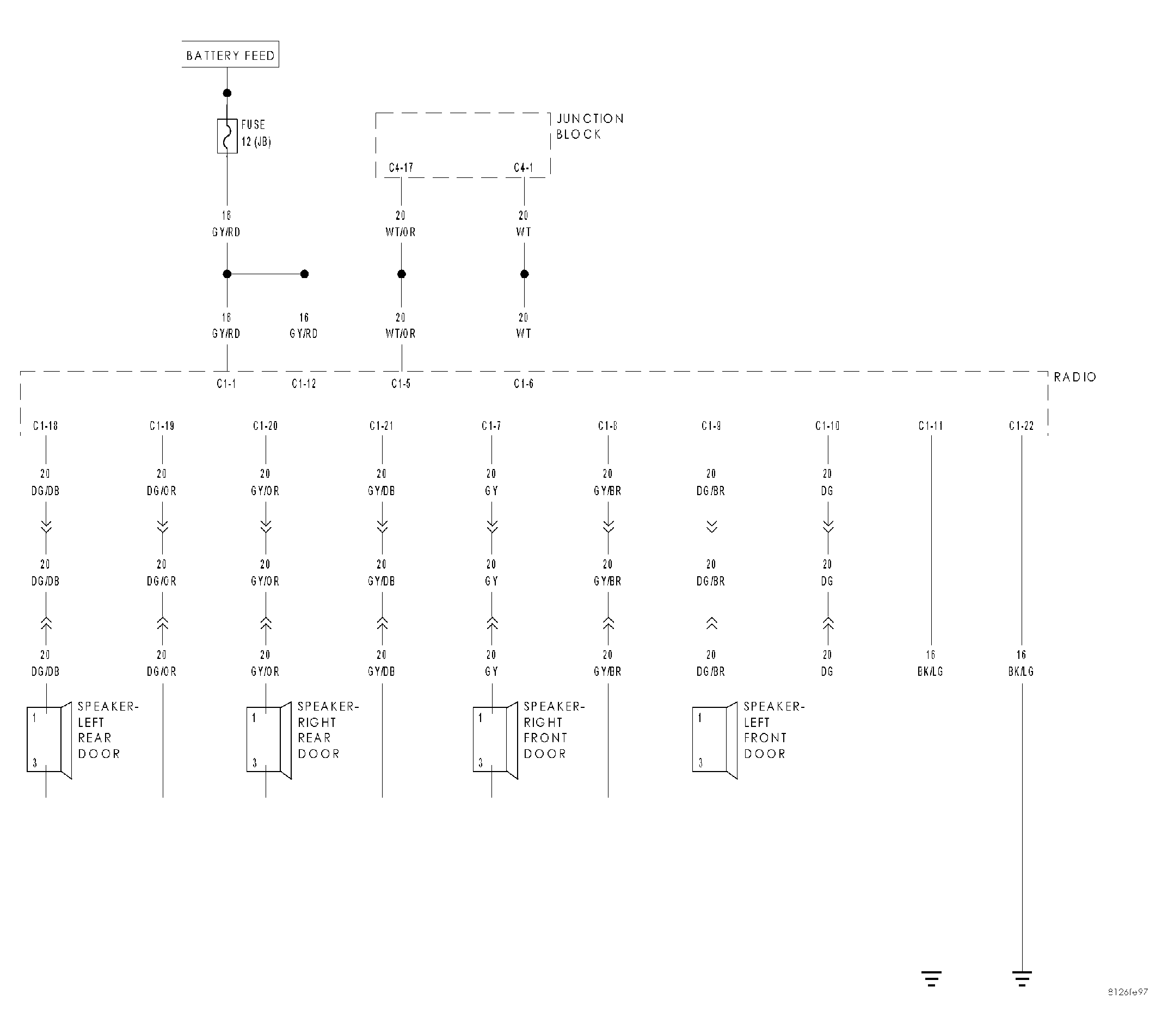

Fig 1: Base Radio System

Courtesy of DAIMLERCHRYSLER CORP.

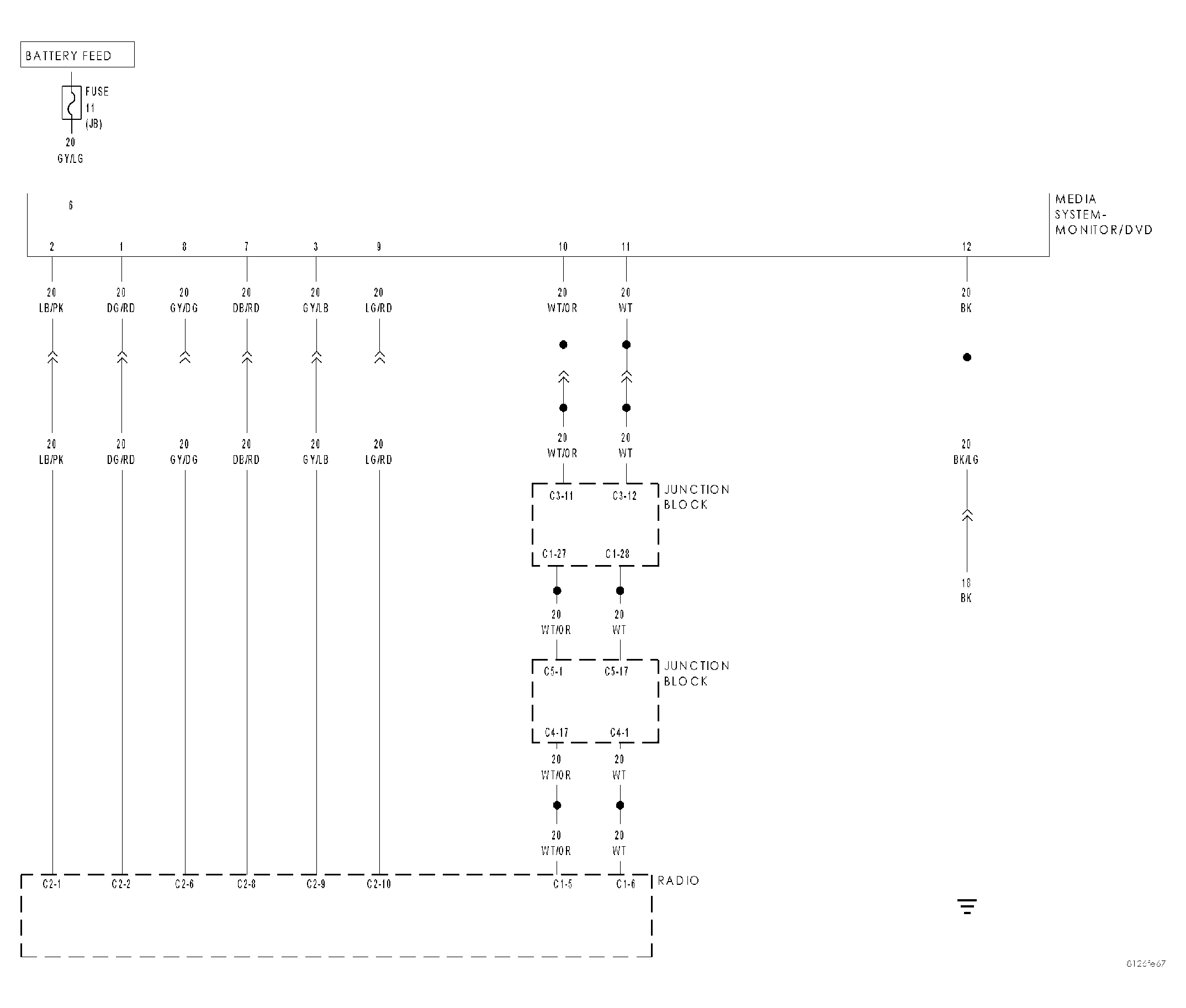

Fig 2: DVD System

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Premium Radio System

Courtesy of DAIMLERCHRYSLER CORP.

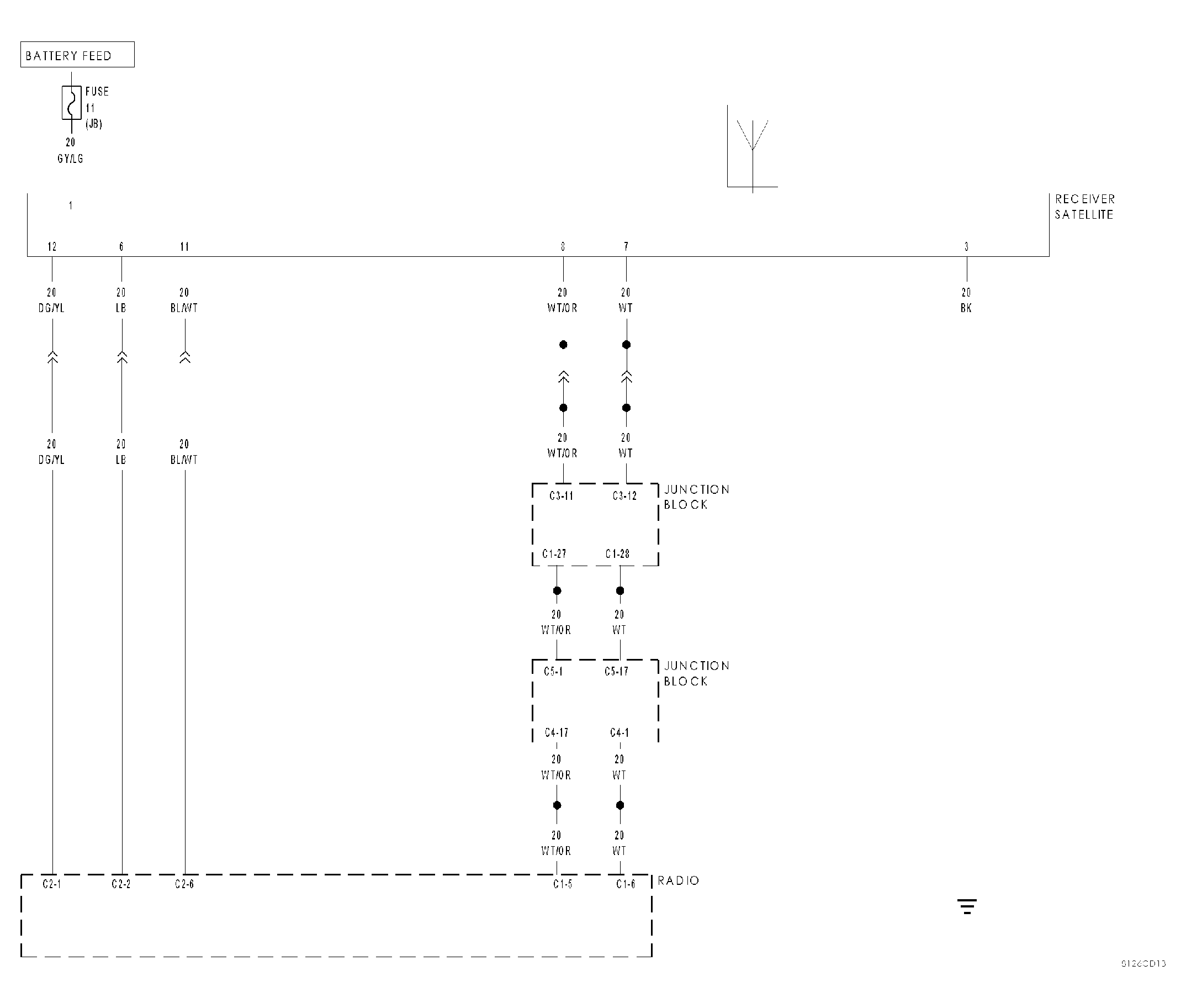

Fig 4: Satellite Radio

Courtesy of DAIMLERCHRYSLER CORP.
