B1466-Channel 2 Audio Speaker Output Circuit Low: Notes

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

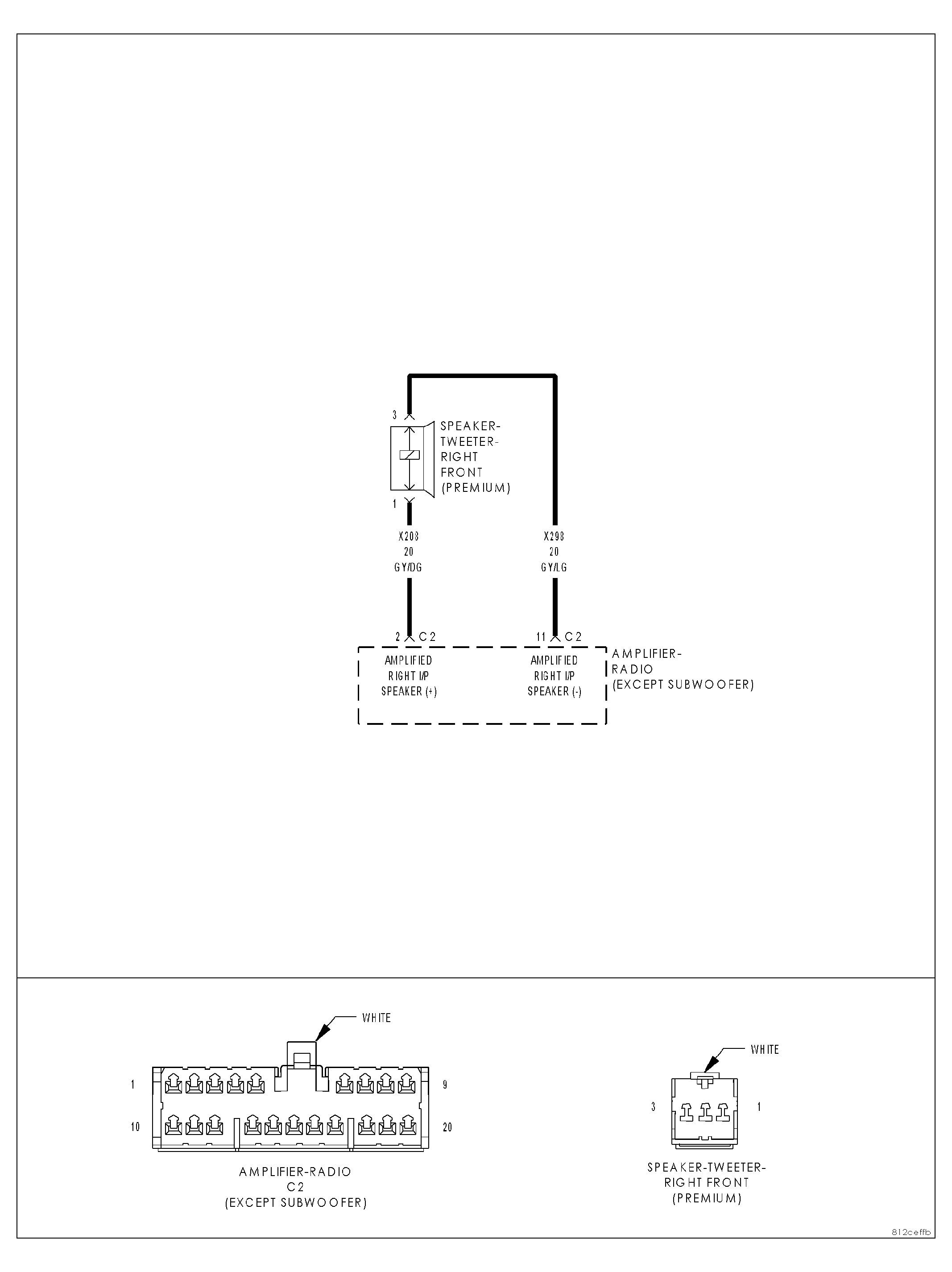

Fig 1: Channel 2-MS

Courtesy of DAIMLERCHRYSLER CORP.

For the Amplifier circuit diagram (Refer to ELECTRICAL/AUDIO - SCHEMATICS AND DIAGRAMS) .
