Diagnostic Test

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. 1)  CHECK THE (C61) RIGHT BLEND DOOR DRIVER CIRCUIT & THE (C161) RIGHT BLEND DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO GROUND

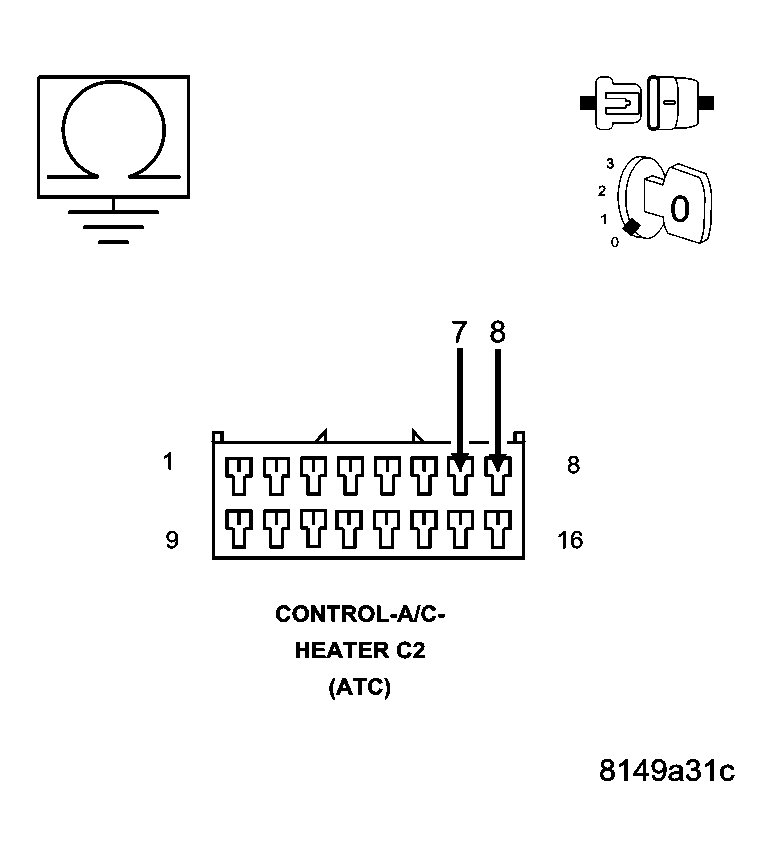

    Fig 1: Checking Right Blend Door Driver Circuit & Right Blend Door Common Driver Circuit For Short To Ground
    GC0028229Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the A/C Heater Control C2 harness connector.

    Measure the resistance of the (C61) Right Blend Door Driver circuit between ground and the A/C Heater Control C2 harness connector.

    Measure the resistance of the (C161) Right Blend Door Common Driver circuit between ground and the A/C Heater Control C2 harness connector.

    Is the resistance below 10k ohms on either circuit?

    Yes

    1. Repair the circuit(s) with a resistance below 10k ohms for a short to ground.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Go To step  2).
  2. 2)  CHECK THE RIGHT BLEND DOOR ACTUATOR CIRCUIT RESISTANCE

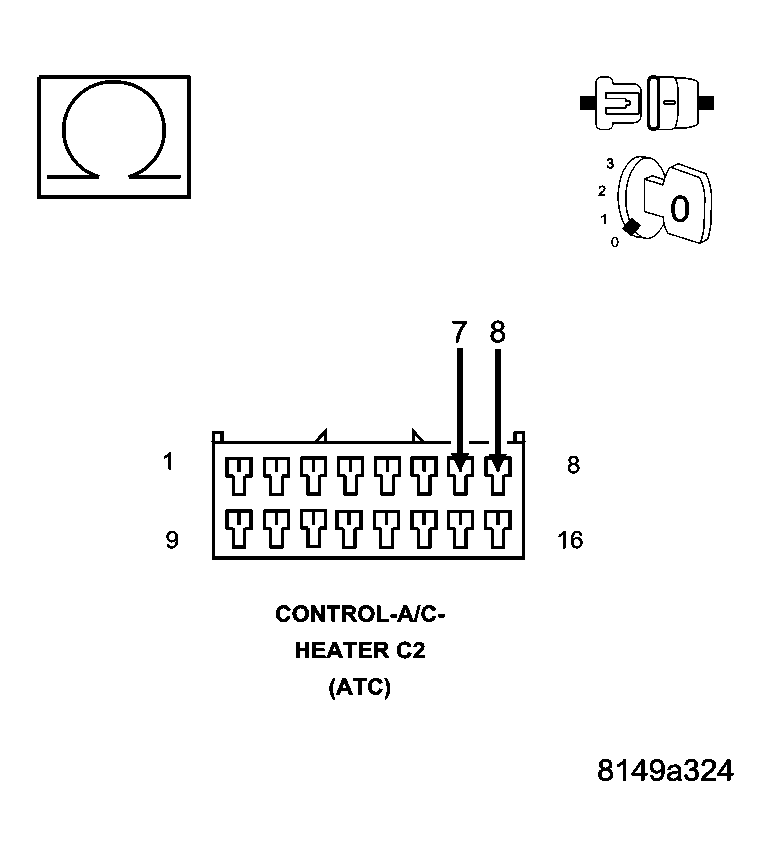

    Fig 2: Checking Right Blend Door Actuator Circuit
    GC0028230Courtesy of DAIMLERCHRYSLER CORP.

    Measure the resistance between the (C61) Right Blend Door Driver circuit and the (C161) Right Blend Door Common Driver circuit in the A/C Heater Control C2 harness connector.

    Is the resistance below 30.0 ohms?

    Yes

    1. Go To step  3).

    No

    1. Go To step  4).
  3. 3)  CHECK THE (C61) RIGHT BLEND DOOR DRIVER CIRCUIT FOR A SHORT TO THE (C161) RIGHT BLEND DOOR COMMON DRIVER CIRCUIT
    Fig 3: Checking Right Blend Door Actuator Circuit
    GC0028230Courtesy of DAIMLERCHRYSLER CORP.

    Disconnect the Right Blend Door Actuator harness connector.

    Measure the resistance between the (C61) Right Blend Door Driver circuit and the (C161) Right Blend Door Common Driver circuit in the A/C Heater Control C2 harness connector.

    Is the resistance below 10k ohms?

    Yes

    1. Repair the (C61) Right Blend Door Driver circuit for a short to the (C161) Right Blend Door Common Driver circuit.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Replace the Right Blend Door Actuator in accordance with the Service Information.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  4. 4)  CHECK THE (C61) RIGHT BLEND DOOR DRIVER CIRCUIT FOR A SHORT TO OTHER DOOR DRIVER CIRCUITS

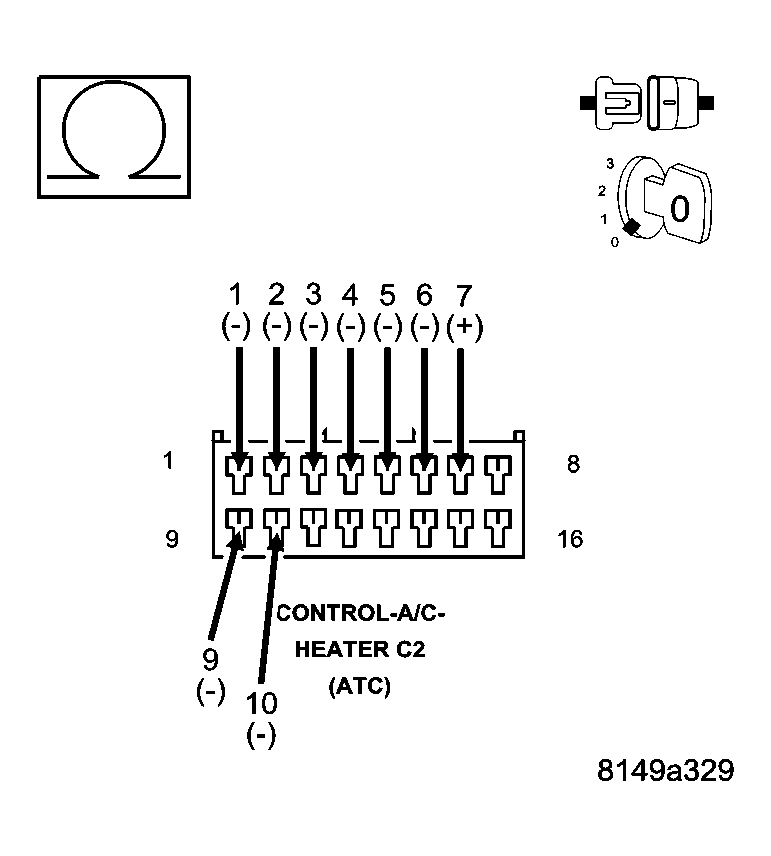

    Fig 4: Checking Right Blend Door Driver Circuit For Short To Other Door Driver Circuits
    GC0028231Courtesy of DAIMLERCHRYSLER CORP.

    Measure the resistance between the (C61) Right Blend Door Driver circuit and the (C266) Front Mode Door Driver circuit, (C66) Front Mode Door Common Driver circuit, (C268) Recirculation Door Driver circuit, (C68) Recirculation Door Common Driver circuit, (C255) Left Blend Door Driver circuit, (C55) Left Blend Door Common Driver circuit, (C139) Rear Mode Door Driver circuit, and the (C939) Rear Mode Door Common Driver circuit in the A/C Heater Control C2 harness connector.

    Is the resistance below 10k ohms between the (C61) Right Blend Door Driver circuit and any of the other door driver circuits?

    Yes

    1. Repair the circuit(s) with a resistance below 10k ohms for a short to the (C61) Right Blend Door Driver circuit.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Go To step  5).
  5. 5)  CHECK THE (C161) RIGHT BLEND DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO OTHER DOOR DRIVER CIRCUITS

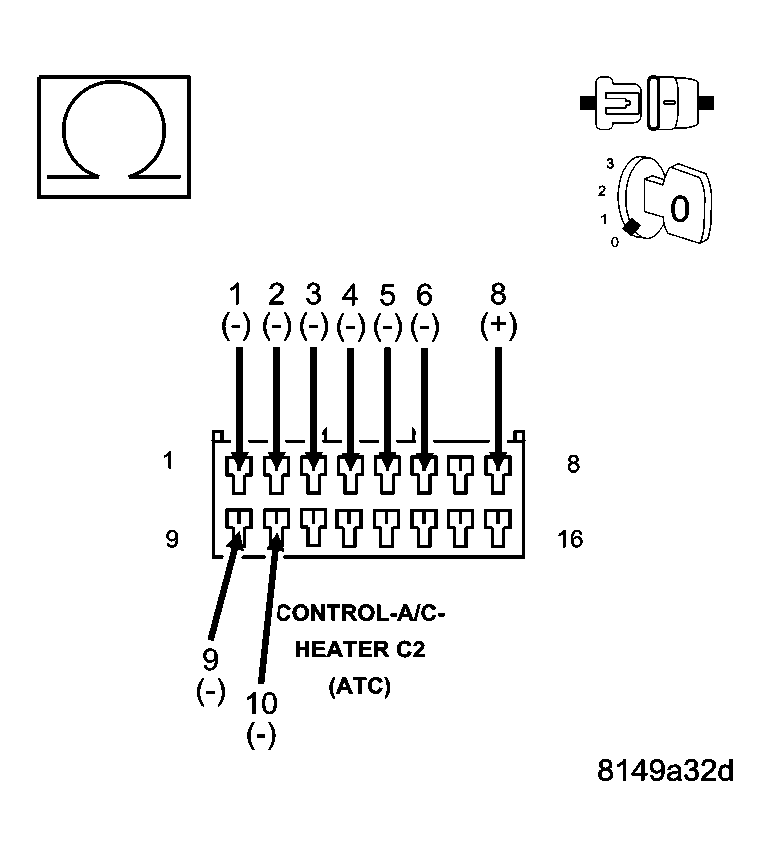

    Fig 5: Checking Right Blend Door Common Driver Circuit For Short To Other Door Driver Circuits
    GC0028232Courtesy of DAIMLERCHRYSLER CORP.

    Measure the resistance between the (C161) Right Blend Door Common Driver circuit and the (C266) Front Mode Door Driver circuit, (C66) Front Mode Door Common Driver circuit, (C268) Recirculation Door Driver circuit, (C68) Recirculation Door Common Driver circuit, (C255) Left Blend Door Driver circuit, (C55) Left Blend Door Common Driver circuit, (C139) Rear Mode Door Driver circuit, and the (C939) Rear Mode Door Common Driver circuit in the A/C Heater Control C2 harness connector.

    Is the resistance below 10k ohms between the (C161) Right Blend Door Common Driver circuit and any of the other door driver circuits?

    Yes

    1. Repair the circuit(s) with a resistance below 10k ohms for a short to the (C161) Right Blend Door Common Driver circuit.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Go To step  6).
  6. 6)  RUN THE ACTUATOR DTC DETECTION TEST

    Reconnect the A/C Heater Control C2 harness connector.

    Reconnect the Right Blend Door Actuator harness connector.

    Turn the ignition on.

    With the scan tool, erase HVAC DTCs.

    Turn the ignition off, wait 10 seconds, and then turn the ignition on.

    With the scan tool, select System Tests and then select Actuator DTC Detection. When the test is complete, select View DTCs.

    Does the scan tool only display: B10AA-RIGHT BLEND DOOR CONTROL CIRCUIT LOW?

    Yes

    1. Replace the A/C Heater Control in accordance with the Service Information.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No, Other DTC(s) Displayed

    1. Diagnose and repair the other DTC(s). If multiple DTCs are present, diagnose and repair all short high DTCs before diagnosing short low DTCs. Refer to the DIAGNOSTIC CODE INDEX for a complete list of all HVAC related symptoms.

    No, And No Other DTCs Displayed

    1. Using the wiring diagram as a guide, inspect the wiring and connectors for conditions causing an intermittent short. Repair as necessary.
    2. Perform BODY VERIFICATION TEST - VER 1 .
