Park/Turn Signal Lamp: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

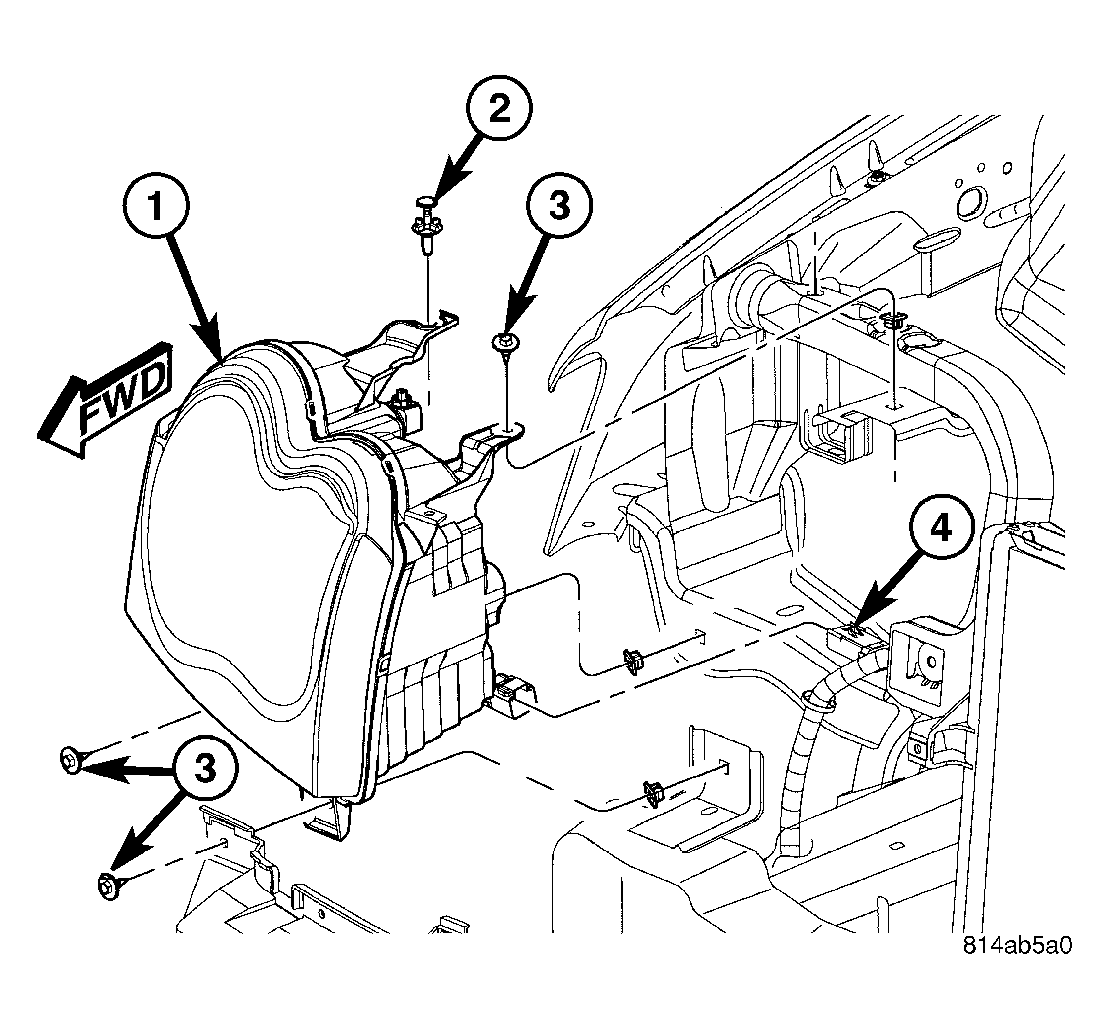

Fig 1: Removing/Installing Headlamp

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect and isolate the battery negative cable.
Remove the headlamp unit (Refer to ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/HEADLAMP UNIT - REMOVAL) .

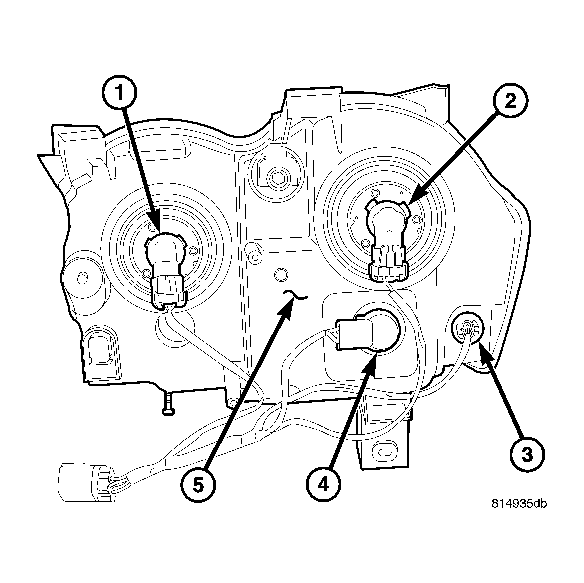

Fig 2: Identifying Headlamp Electrical Connectors
Courtesy of DAIMLERCHRYSLER CORP.
Rotate the turn signal bulb socket (4) 1/4 turn counter clockwise.
Remove the bulb socket (4) from the headlamps unit (5).
Remove the bulb from socket.
