Headlamp Unit: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

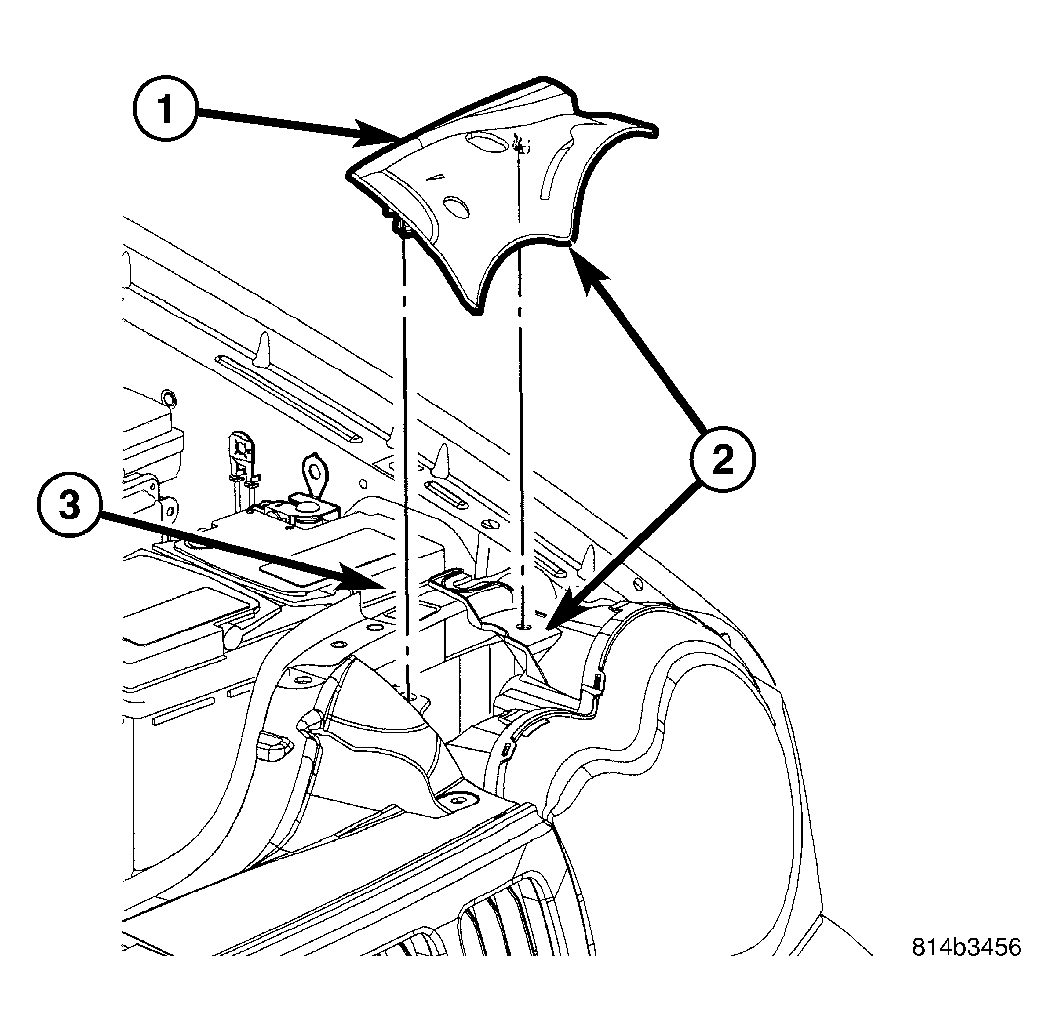

Fig 1: Removing/Installing Headlamp Cover

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect and isolate the battery negative cable.
Remove the headlamp cover (1).

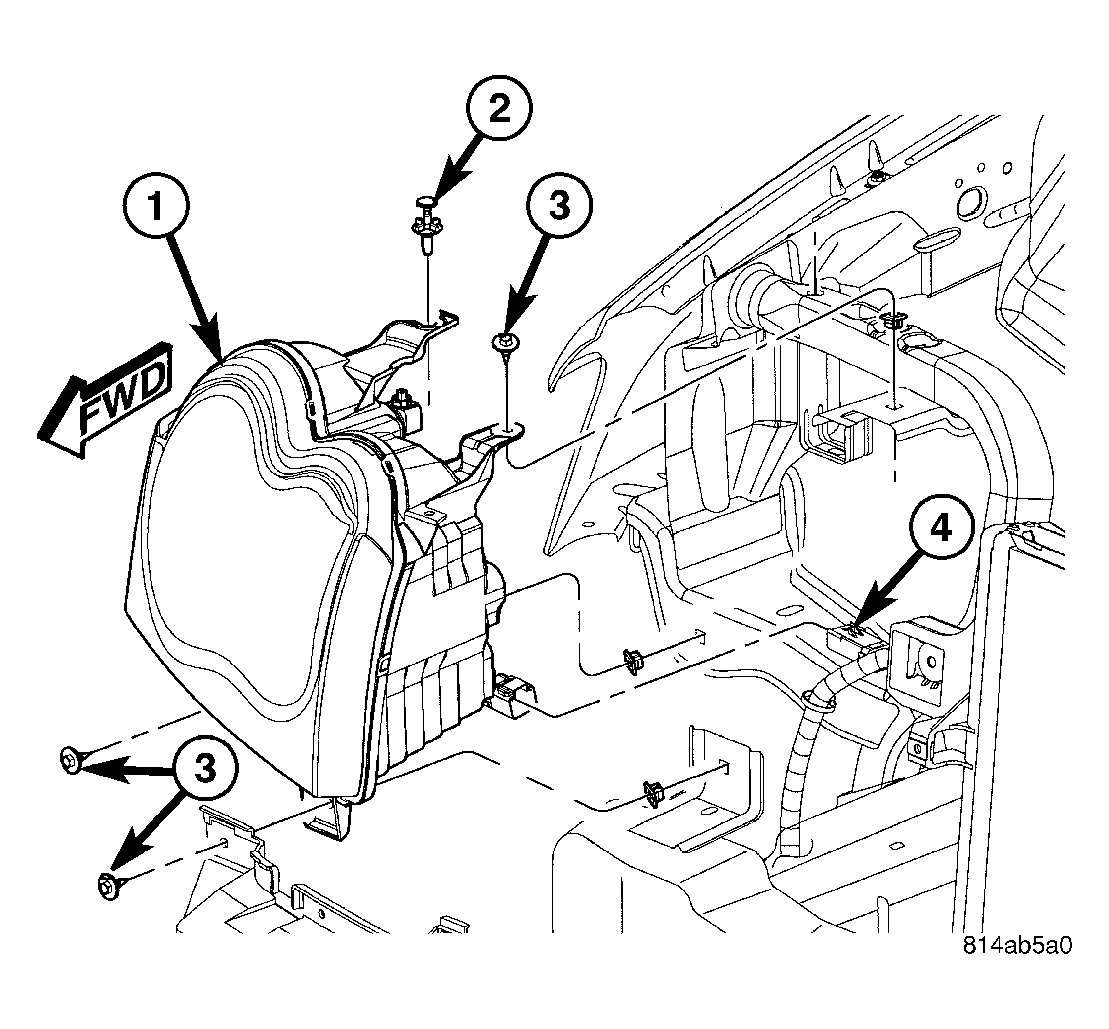

Fig 2: Removing/Installing Headlamp
Courtesy of DAIMLERCHRYSLER CORP.
Remove the mounting fasteners.
Disconnect the headlamp unit electrical connector (4).
Separate the headlamp from vehicle.
