Rear Tow Hook

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

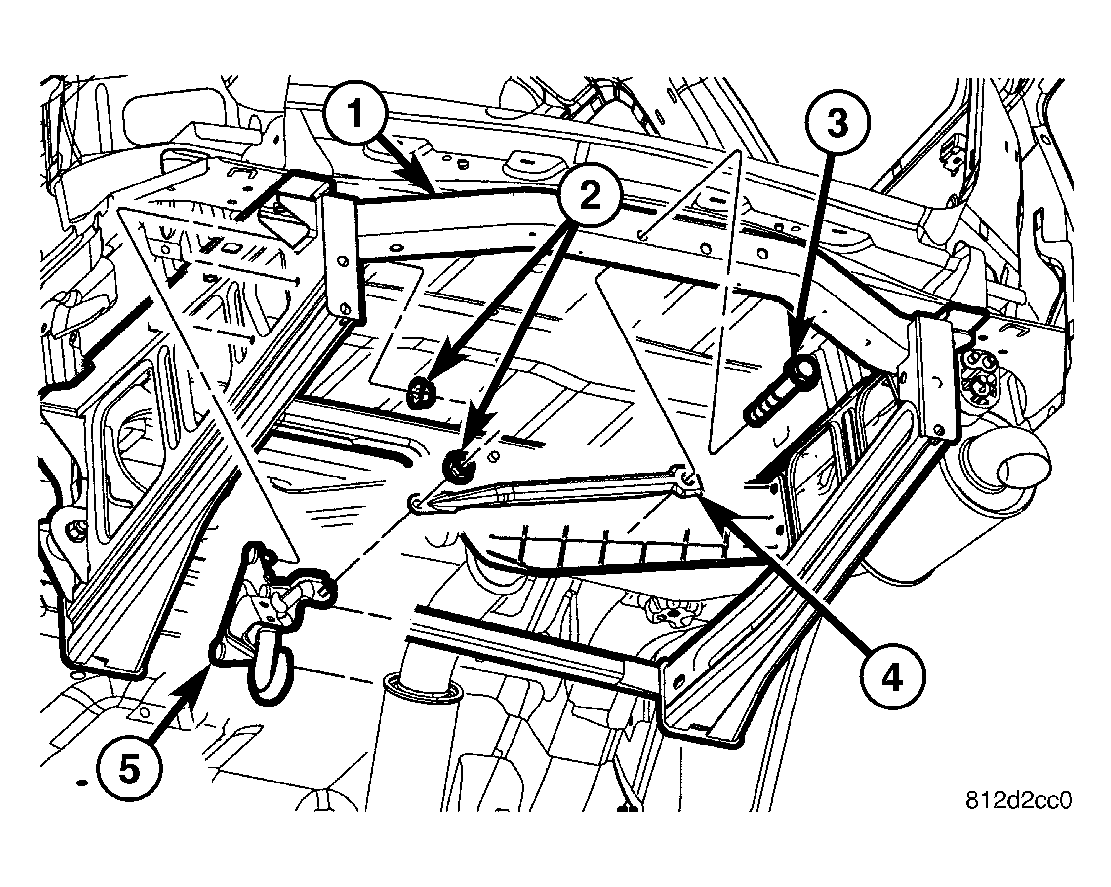

Fig 1: Rear Tow Hook
GC0027819Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the rear fascia. (Refer to FRAME & BUMPERS/BUMPERS/FASCIA-REAR - REMOVAL)
  2. Loosen the bolt (3).
  3. Remove the brace nut and separate the brace (4).
  4. Remove the mounting nuts (2) and remove the hook (5).
