Stud Plates

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

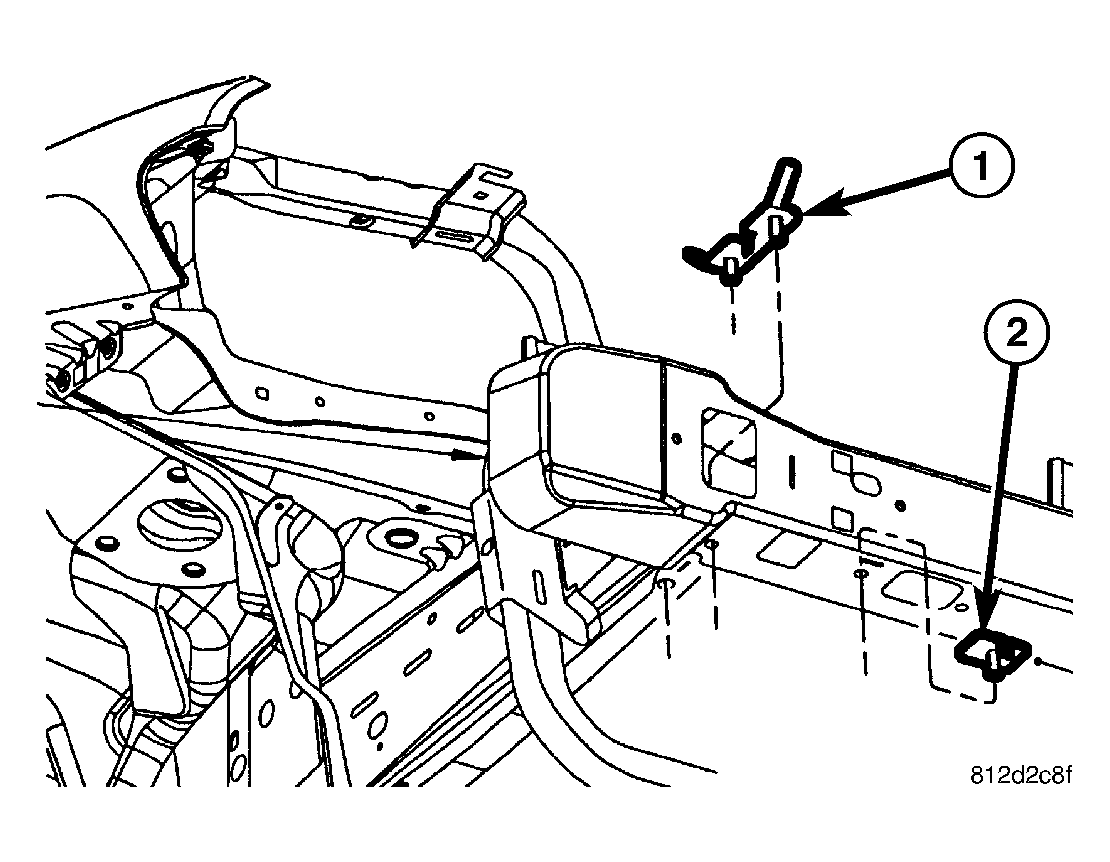

Fig 1: Stud Plates

Courtesy of DAIMLERCHRYSLER CORP.

Install the stud plates (1 & 2) through the holes in the front bumper beam.

Fig 2: Front Tow Hook
Courtesy of DAIMLERCHRYSLER CORP.
Install the tow hook (1) and install the nuts (2).
Tighten the nuts to 68 N.m (50 ft. lbs.).
Install the front fascia. (Refer to FRAME & BUMPERS/BUMPERS/FRONT FASCIA - INSTALLATION)
