Section 590 (Frame & Bumpers): Fascia-Front: Installation

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

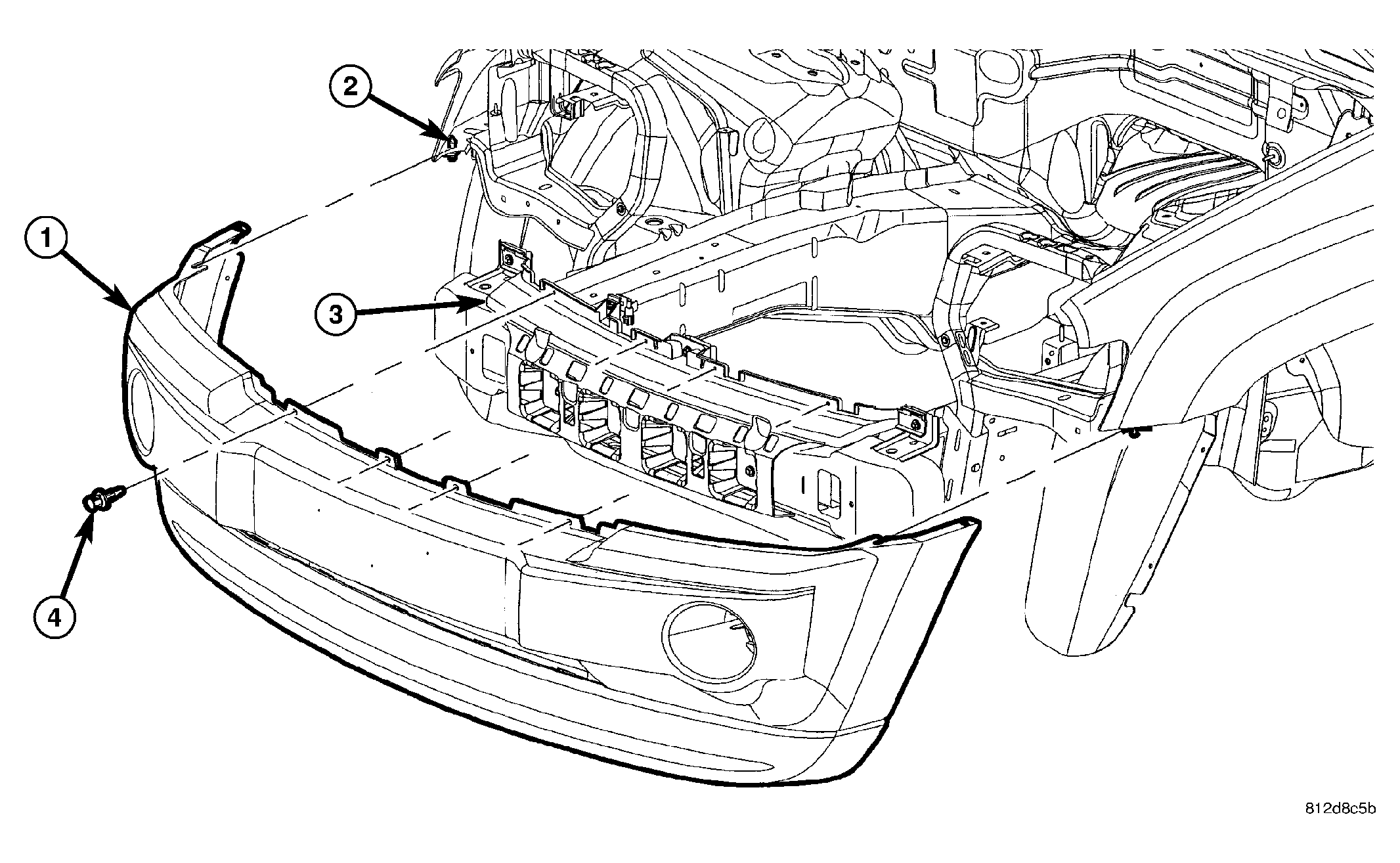

Fig 1: Fascia

Courtesy of DAIMLERCHRYSLER CORP.

Position the fascia (1) onto the vehicle and align the fascia flange slot onto the t-push pin (2).
Install the four upper push pin fasteners (4).

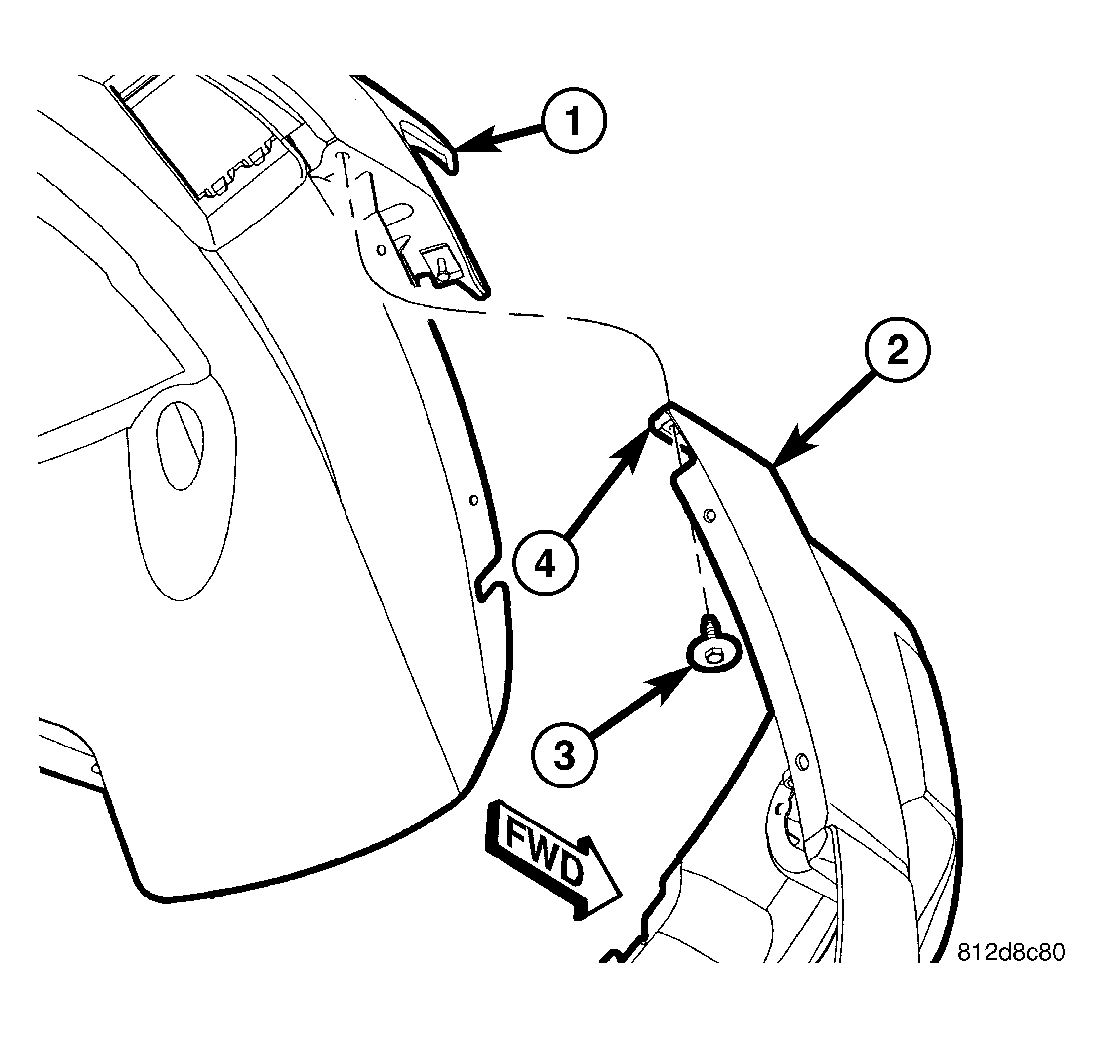

Fig 2: Fascia To Fender
Courtesy of DAIMLERCHRYSLER CORP.
Install the two upper screws (3) on the inside of the fascia (4) to the fender (1).

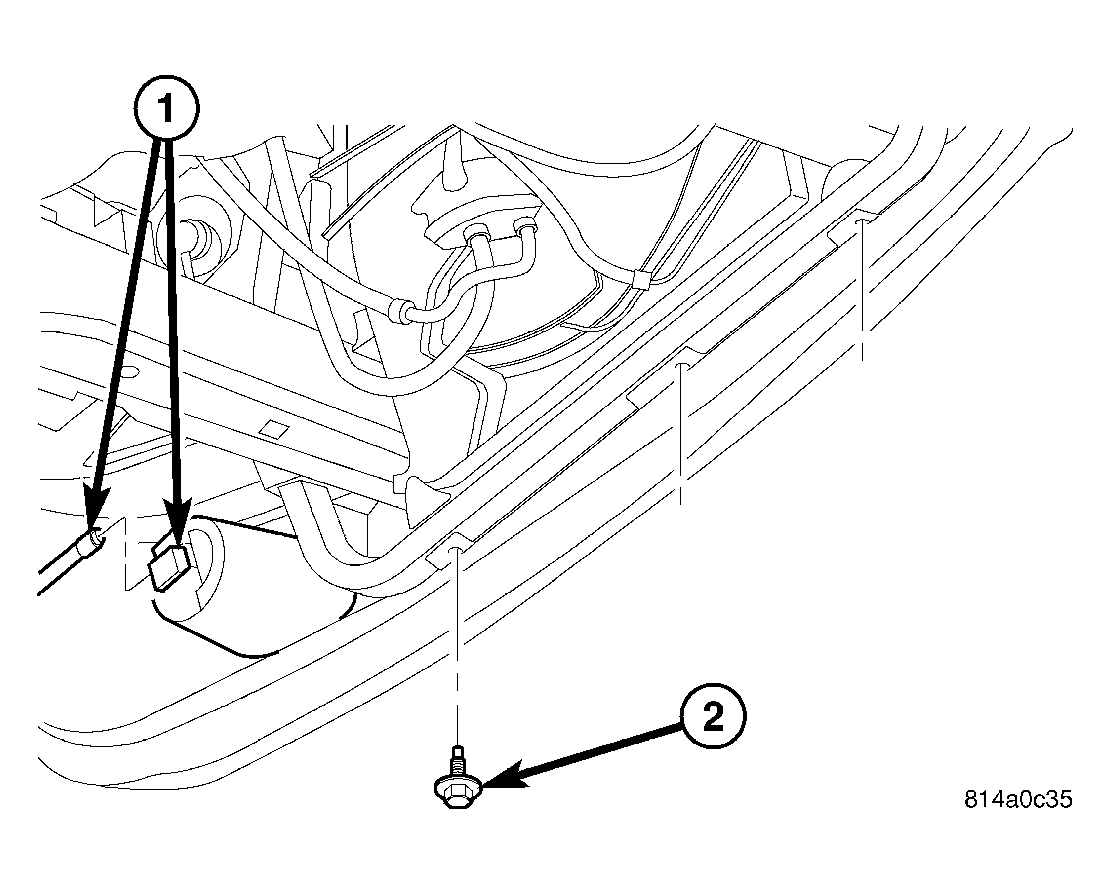

Fig 3: Lower Fascia
Courtesy of DAIMLERCHRYSLER CORP.
Install the three lower screws (2).
Connect the fog lamp electrical connectors (1), if equipped.

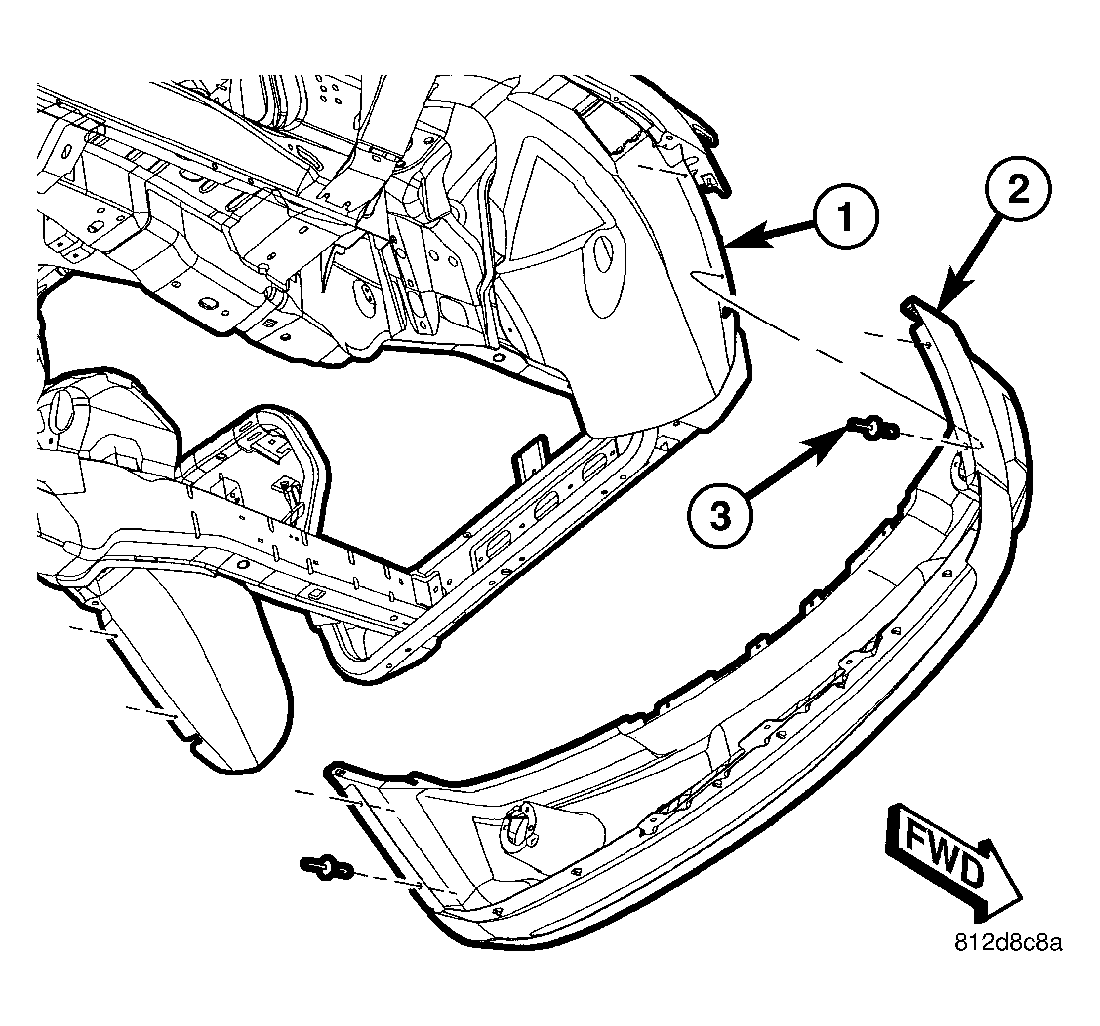

Fig 4: Fascia To Wheel Liner
Courtesy of DAIMLERCHRYSLER CORP.
Install new plastic rivets (3) at each wheelhouse splash shield (1).
