Section 590 (Frame & Bumpers): Hitch-Trailer: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Trailer Wiring

Courtesy of DAIMLERCHRYSLER CORP.

Remove the rear fascia. (Refer to FRAME & BUMPERS/BUMPERS/REAR FASCIA - REMOVAL)
Disconnect the trailer wiring connector (1) harness.
NOTE: 7-way connector shown, 4 way similar.

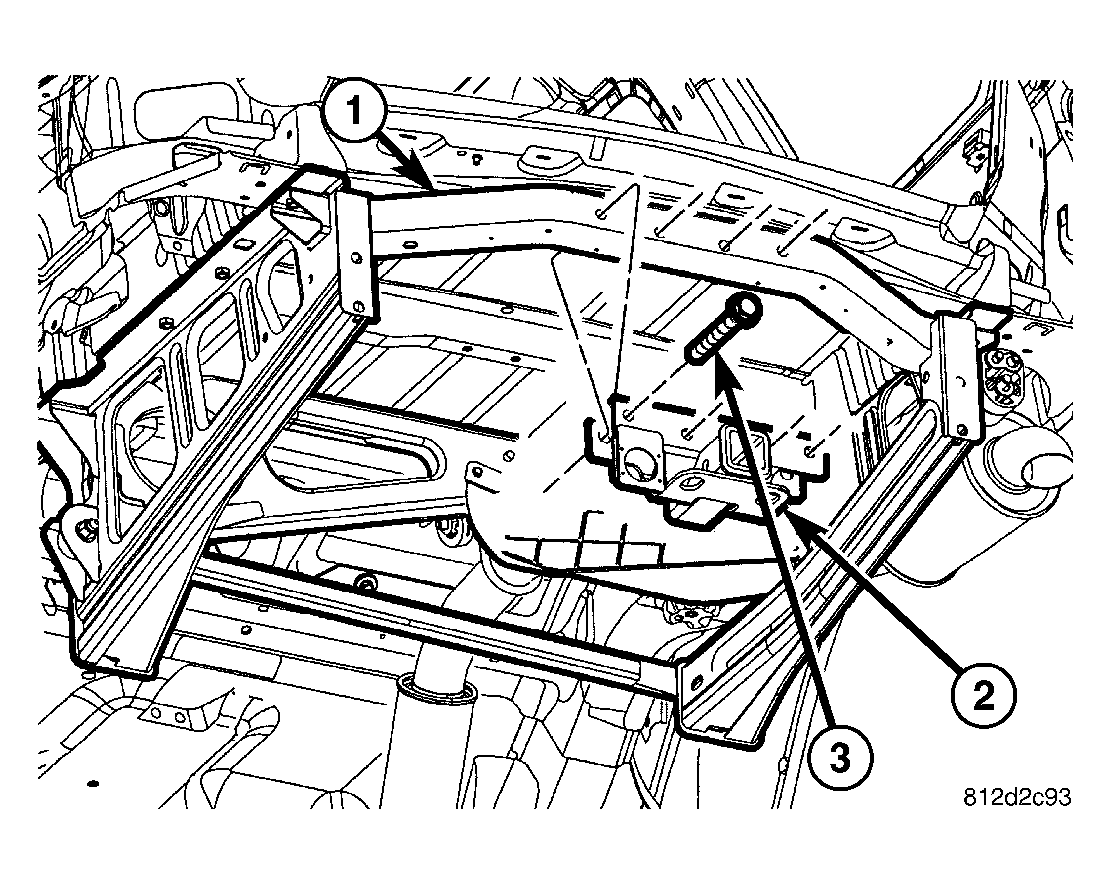

Fig 2: Hitch
Courtesy of DAIMLERCHRYSLER CORP.
Remove the bolts (3) and remove the hitch (2).
