Cradle-Rear Body: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear fascia. (Refer to FRAME & BUMPERS/BUMPERS/REAR FASCIA - REMOVAL)
  2. Remove the spare wheel.
  3. Remove the tail lamps.

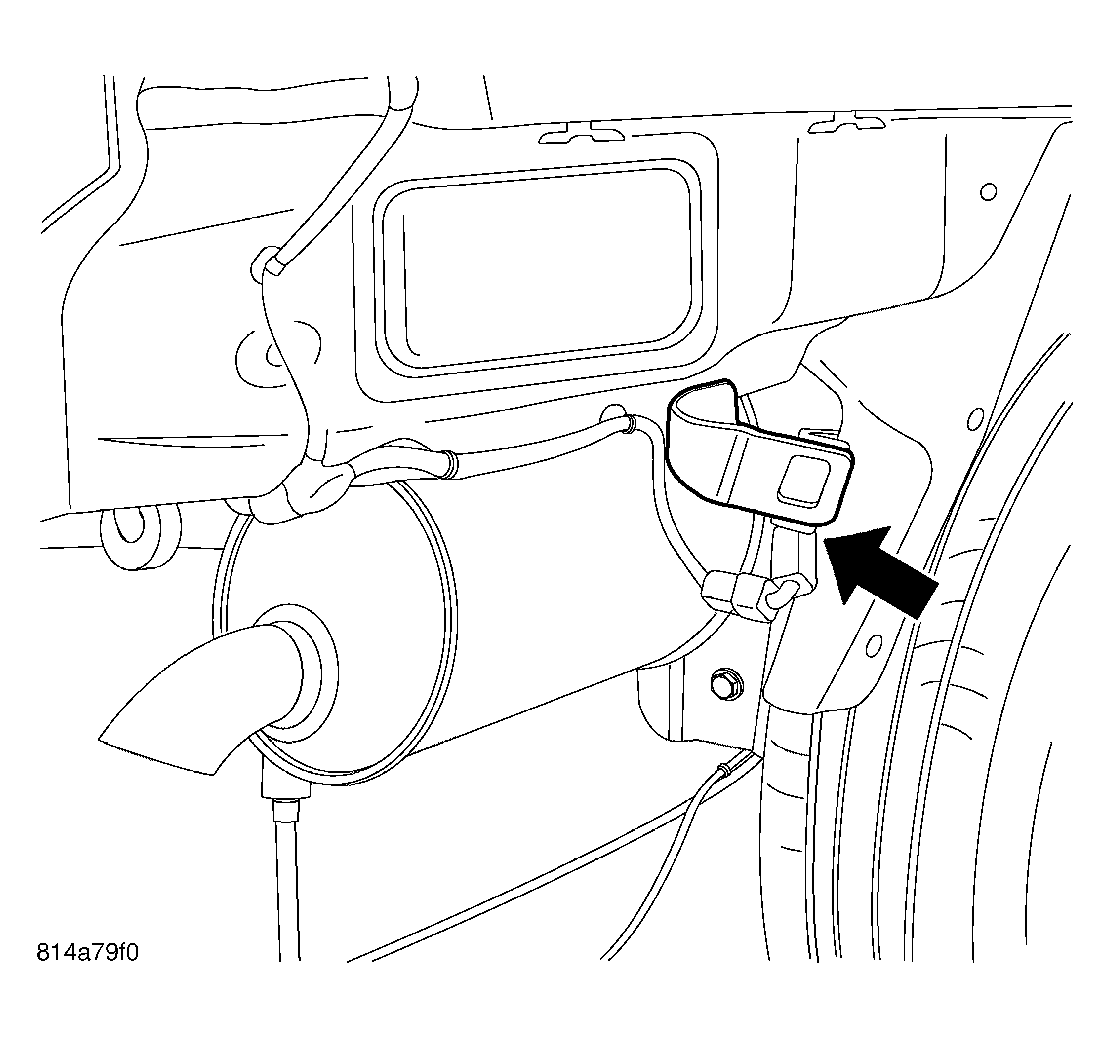

    Fig 1: TPM Sensor
    GC0027797Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect the tire pressure monitor sensor, if equipped.

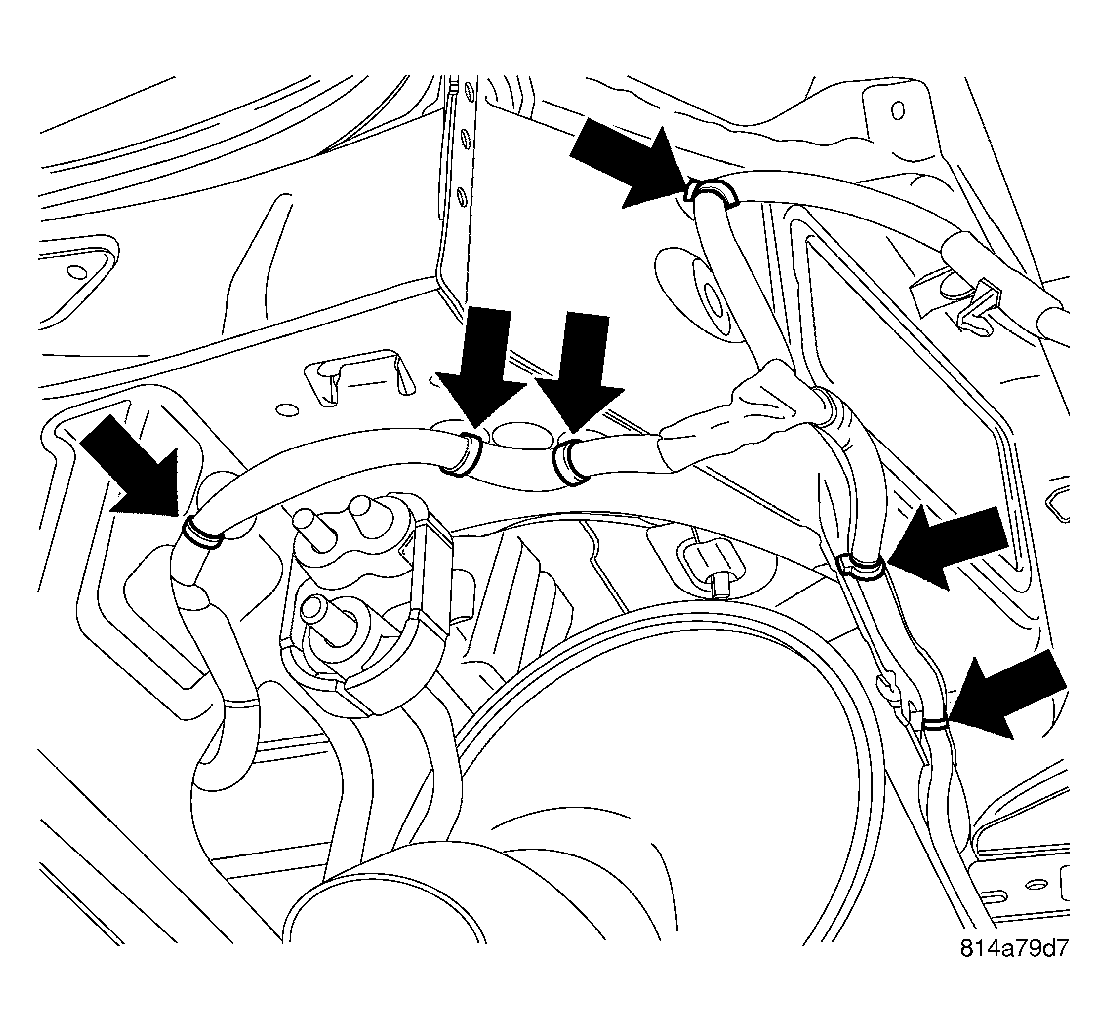

    Fig 2: Right Harness
    GC0027796Courtesy of DAIMLERCHRYSLER CORP.
  5. Separate the right harness hangers and position the harness through the cradle.

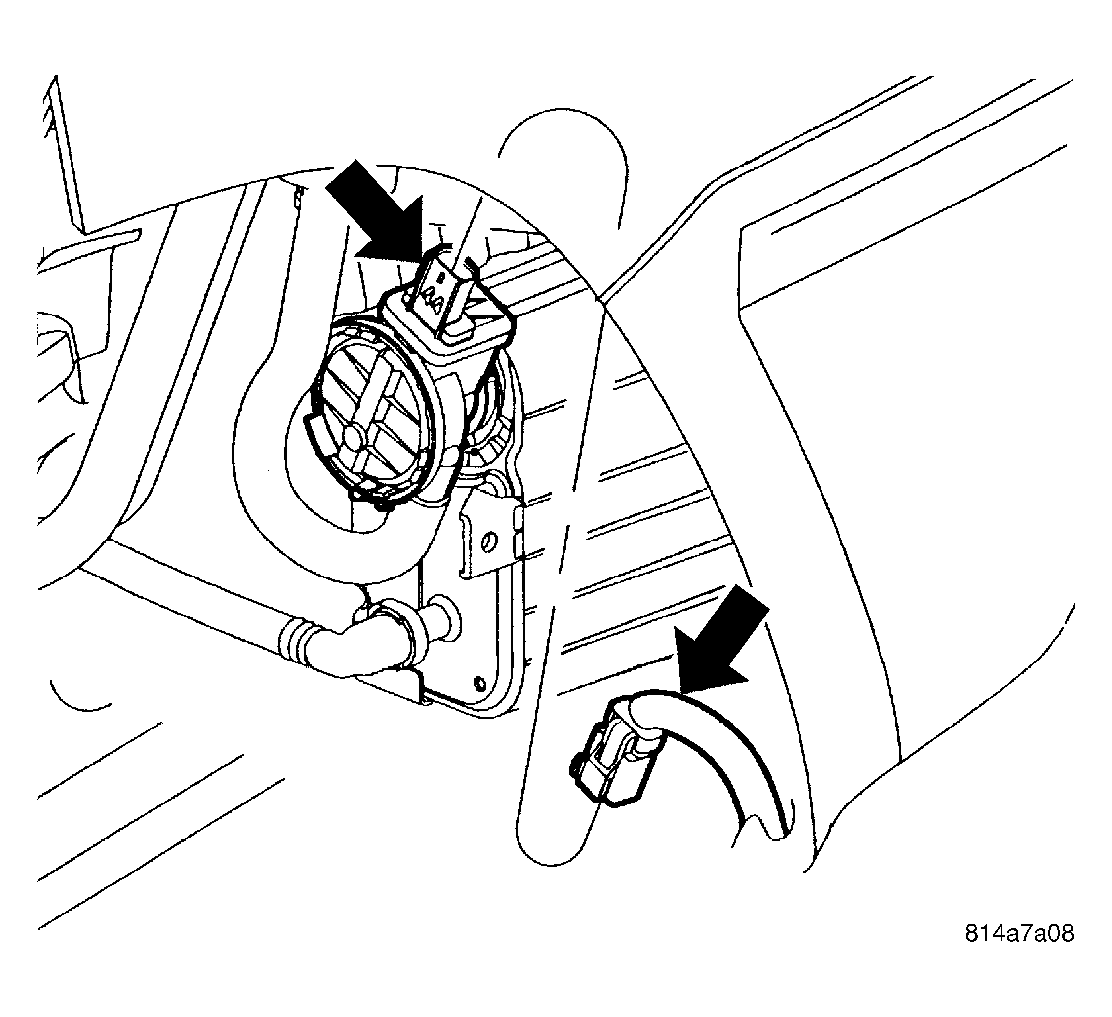

    Fig 3: Canister Electrical
    GC0027798Courtesy of DAIMLERCHRYSLER CORP.
  6. Disconnect the vapor canister electrical connector.

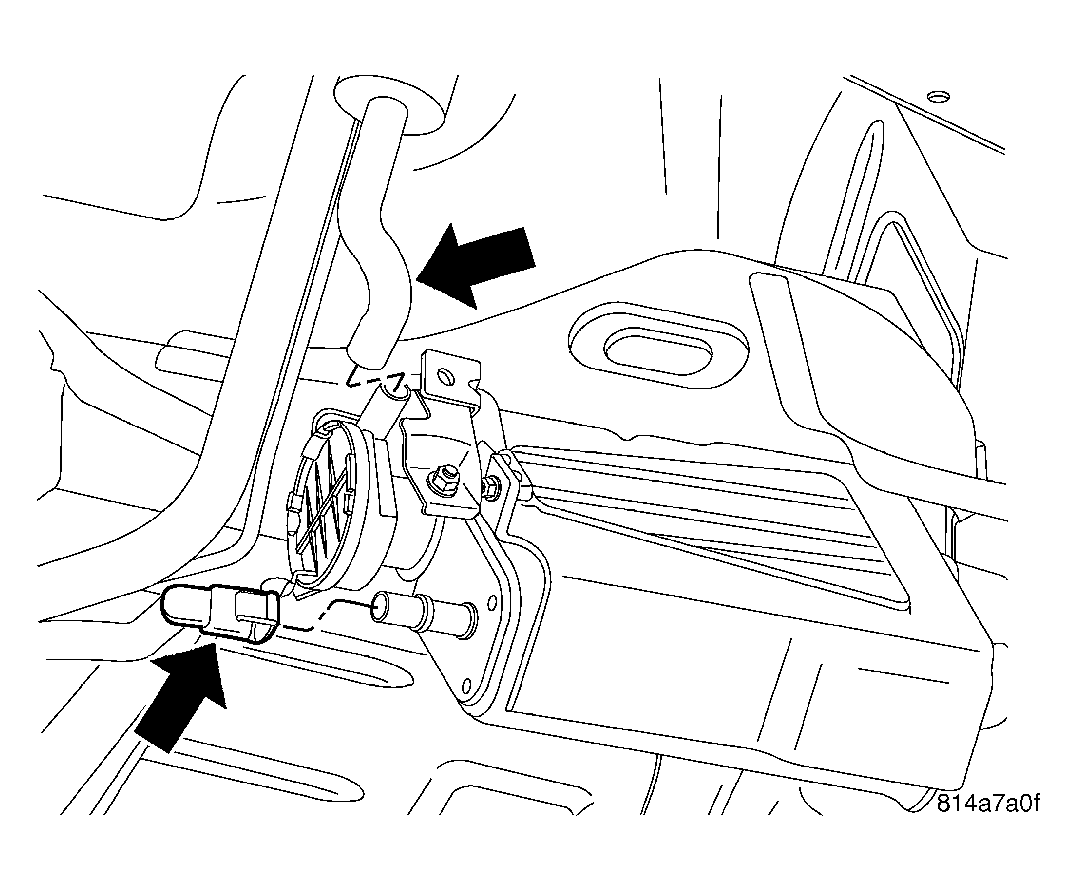

    Fig 4: Canister Hoses
    GC0027799Courtesy of DAIMLERCHRYSLER CORP.
  7. Disconnect the vapor canister hoses.

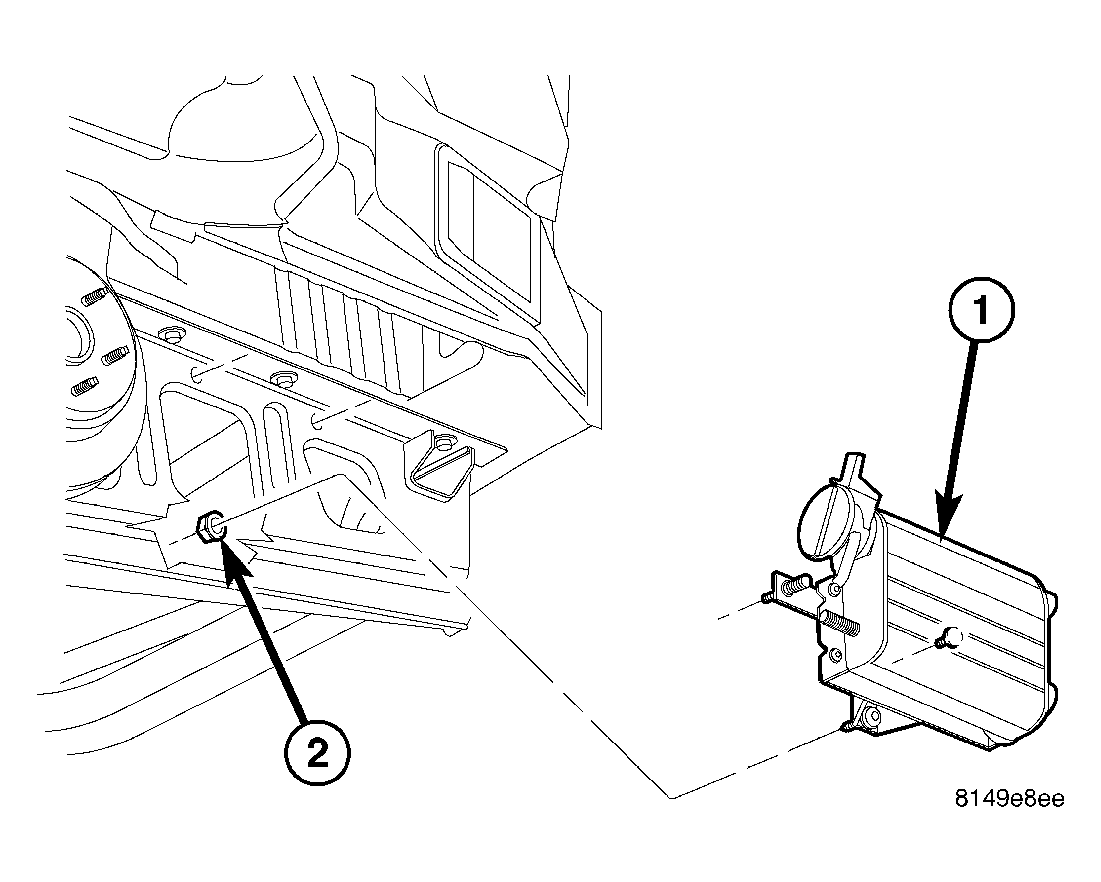

    Fig 5: Vapor Canister
    GC0027793Courtesy of DAIMLERCHRYSLER CORP.
  8. Loosen the upper two canister nuts.
  9. Remove the lower canister nut (2) and remove the vapor canister (1).

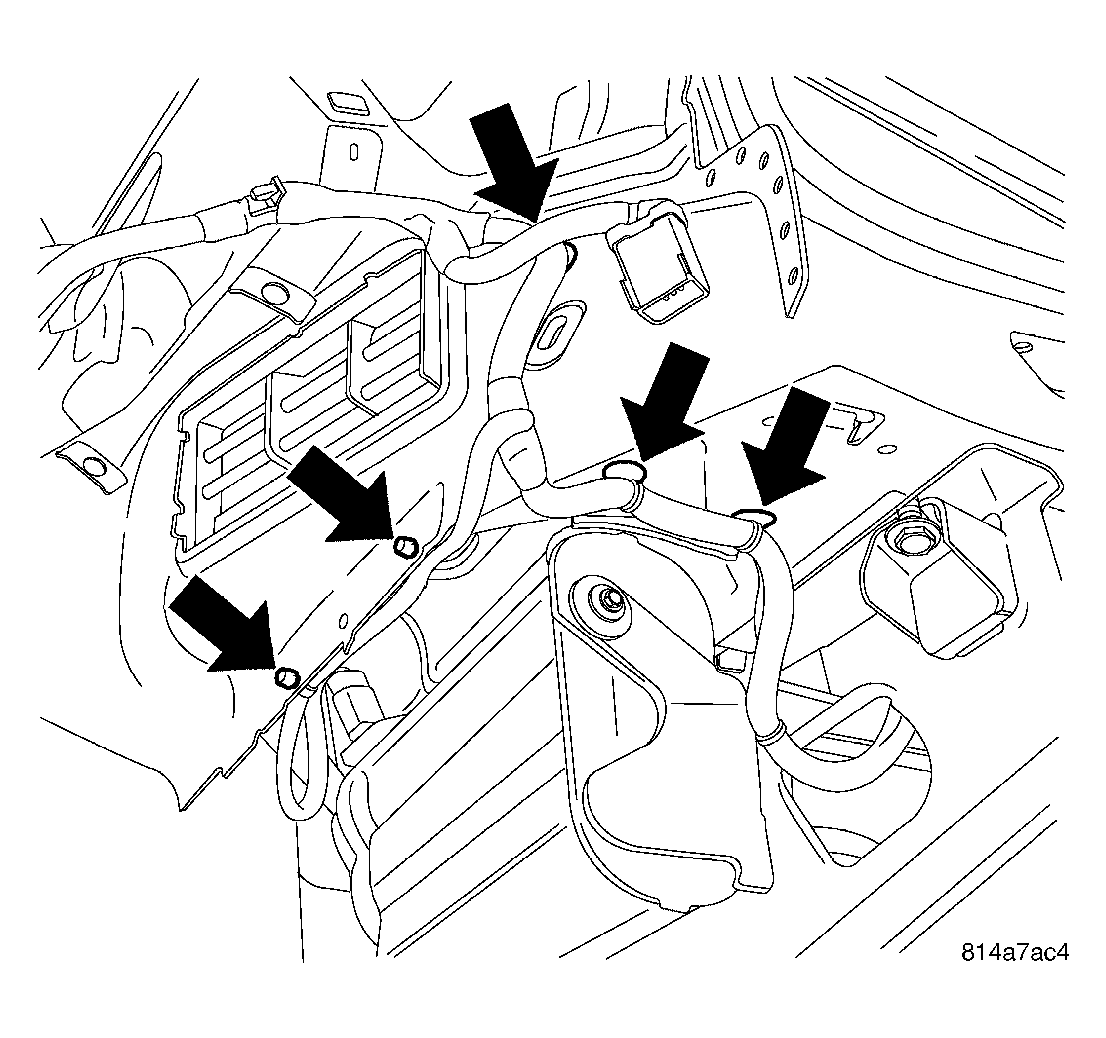

    Fig 6: Left Harness
    GC0027801Courtesy of DAIMLERCHRYSLER CORP.
  10. Separate the left harness hangers and position the harness through the cradle.

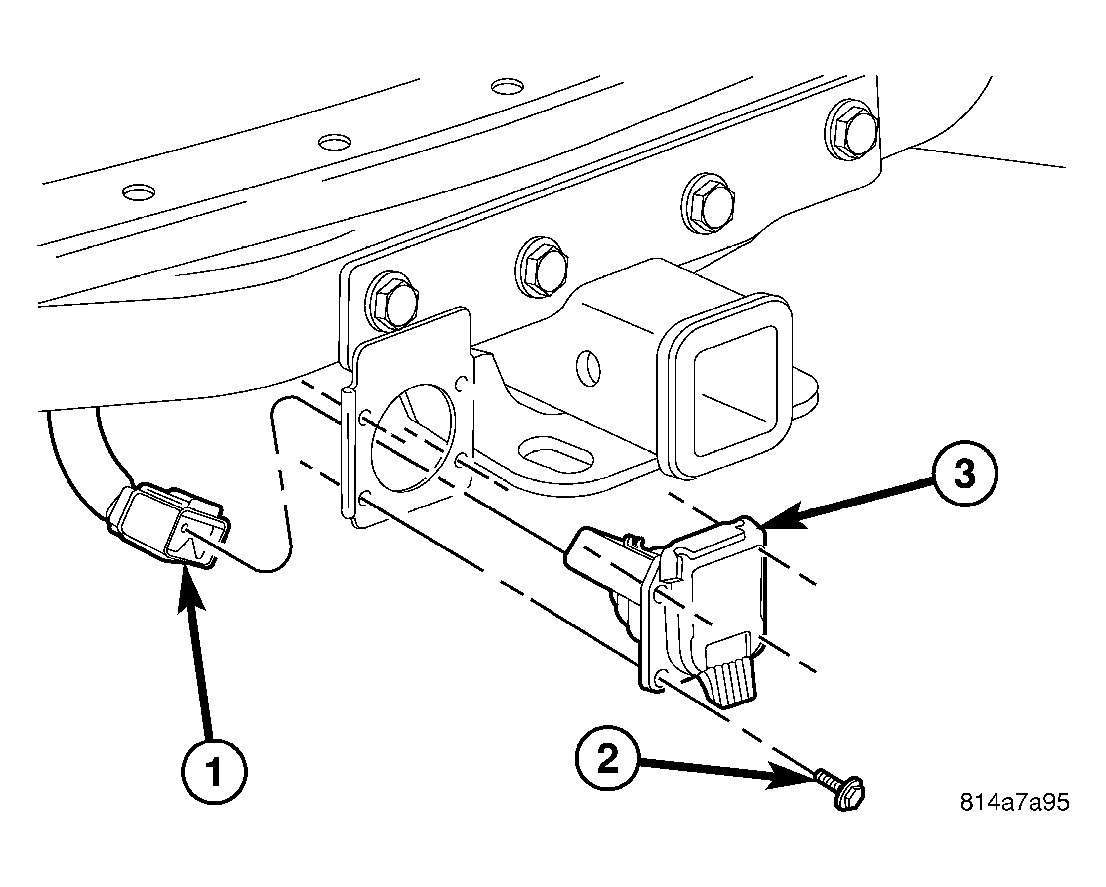

    Fig 7: Trailer Wiring
    GC0027800Courtesy of DAIMLERCHRYSLER CORP.
  11. Disconnect trailer wiring electrical connector (1).

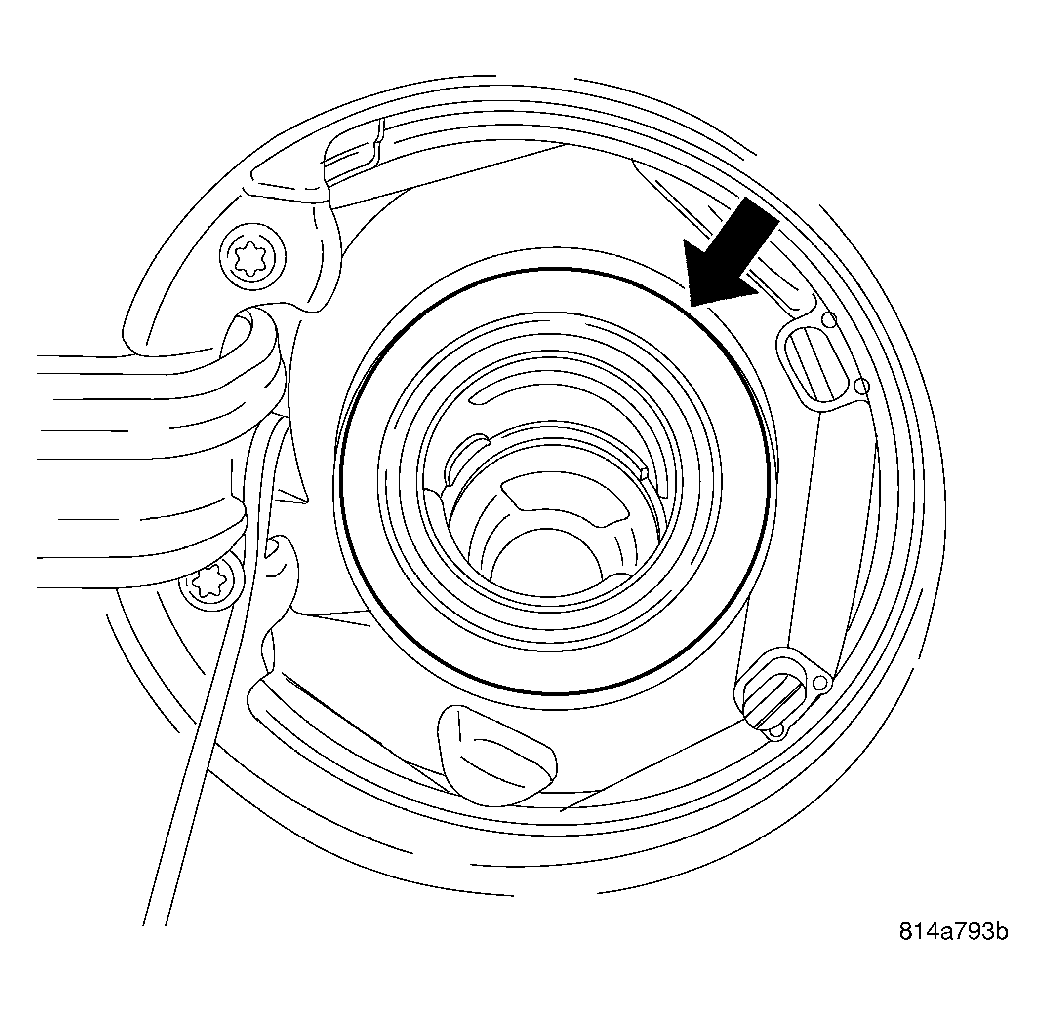

    Fig 8: Filler Neck Grommet 1
    GC0027794Courtesy of DAIMLERCHRYSLER CORP.
  12. Lube filler neck grommet to aid with removal of the filler neck.

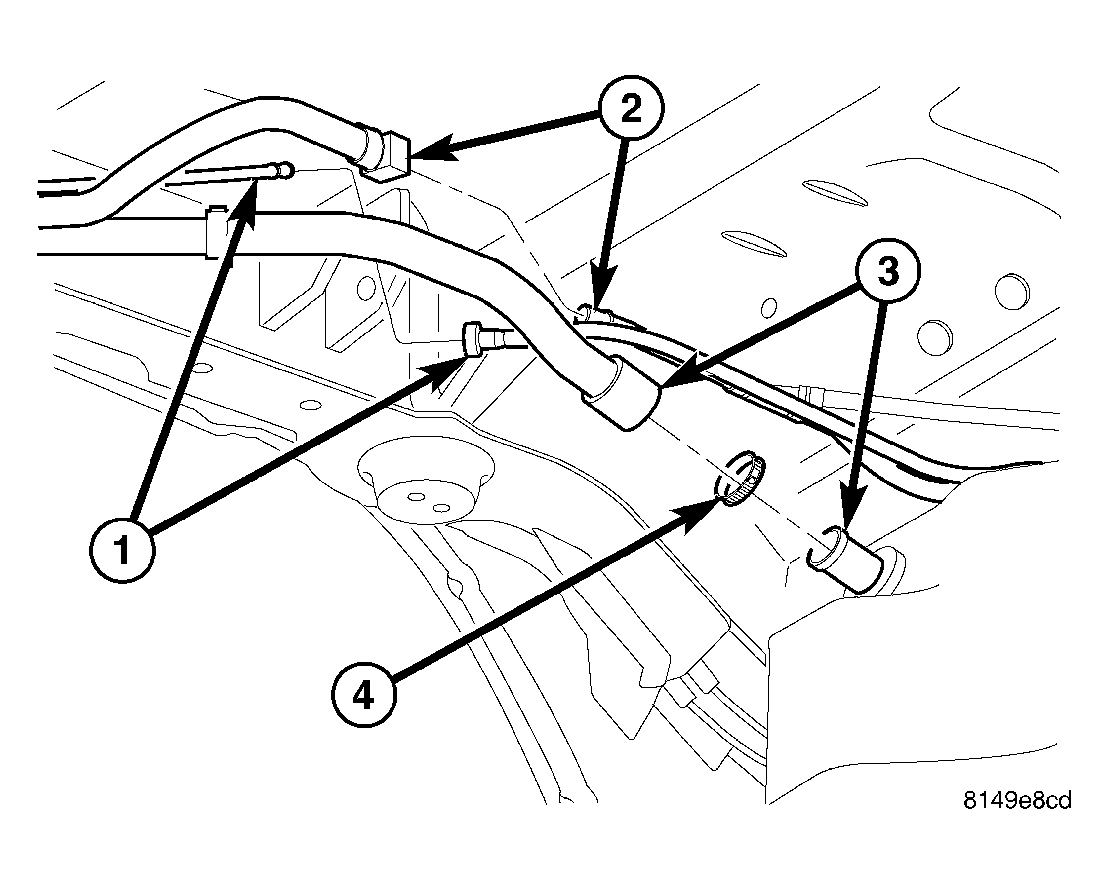

    Fig 9: Fuel Filler 3
    GC0027792Courtesy of DAIMLERCHRYSLER CORP.
  13. Disconnect vapor canister line (2).
  14. Disconnect the fuel line (1).
  15. Loosen the clamp (4) and disconnect the fuel filler hose (3).

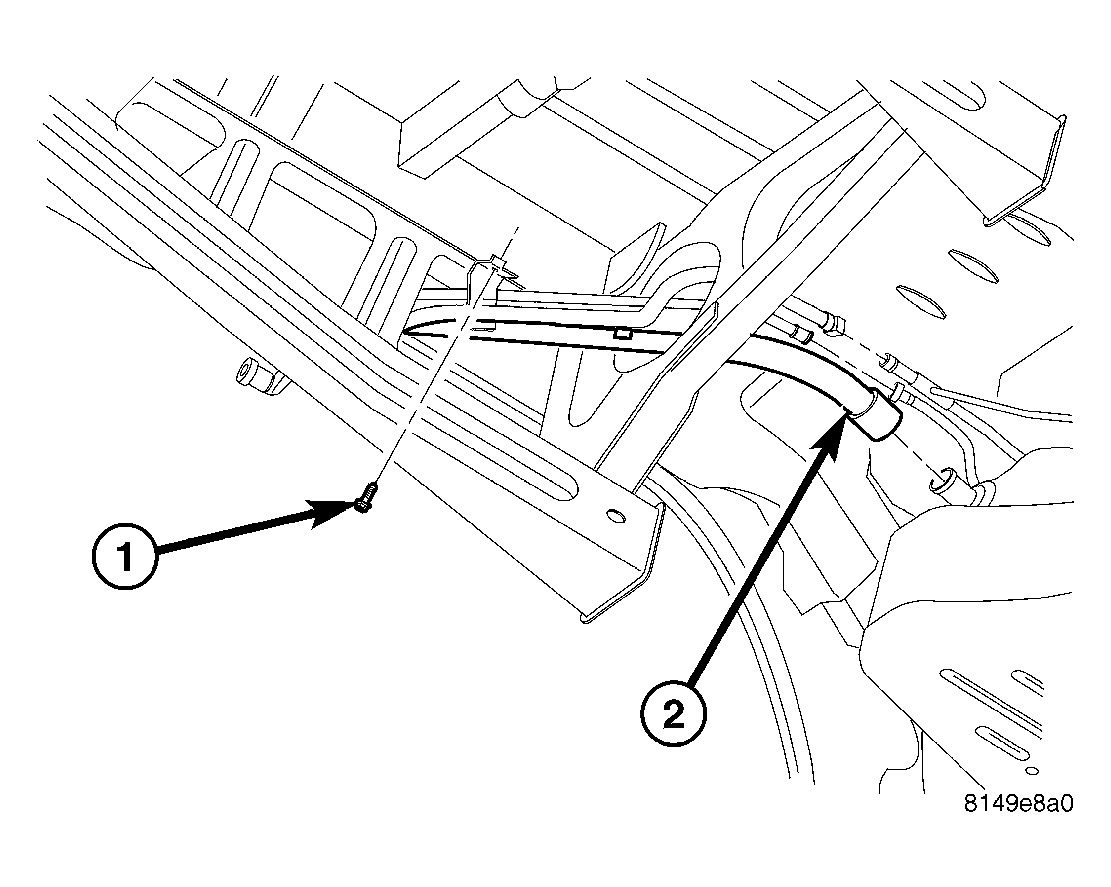

    Fig 10: Fuel Filler 1
    GC0027790Courtesy of DAIMLERCHRYSLER CORP.
  16. Remove the bolt (1) supporting the fuel filler tube (2).

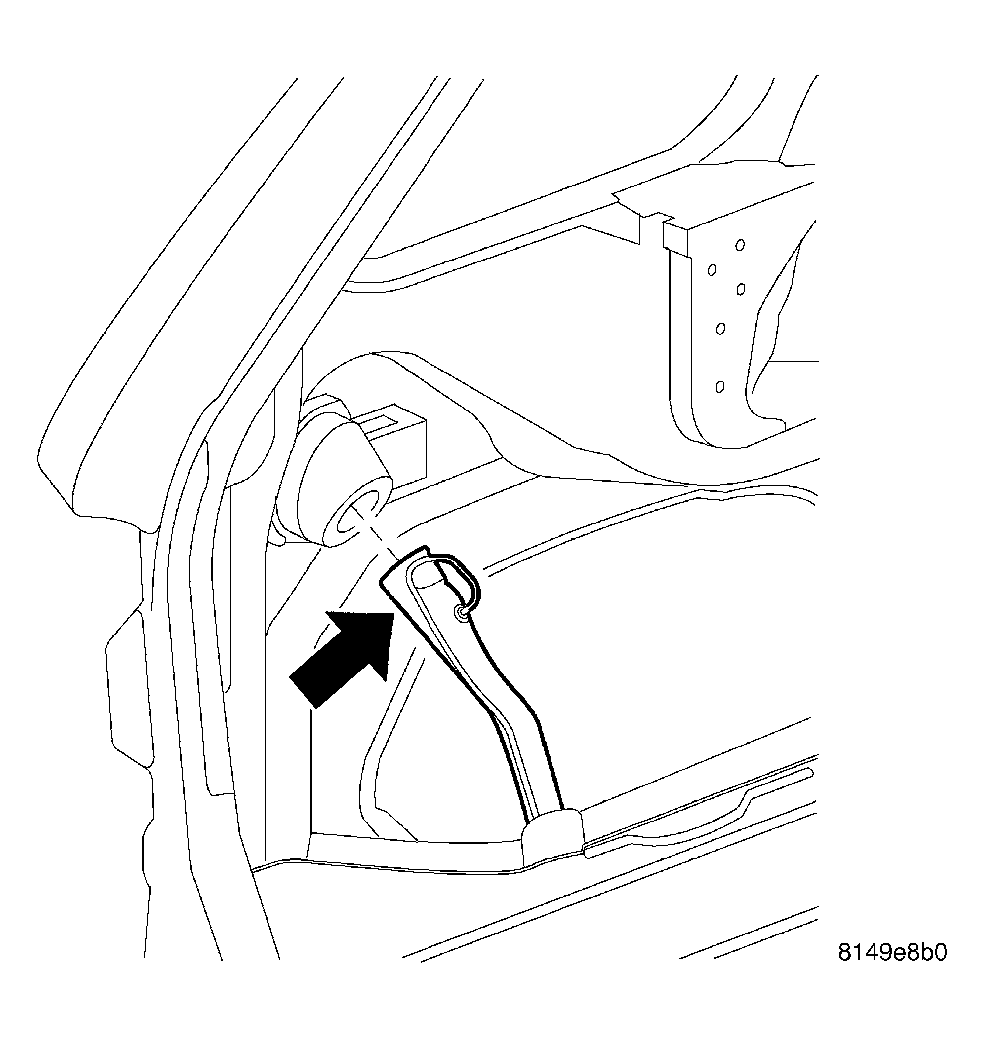

    Fig 11: Fuel Filler 2
    GC0027791Courtesy of DAIMLERCHRYSLER CORP.
  17. Separate and remove the fuel filler neck.

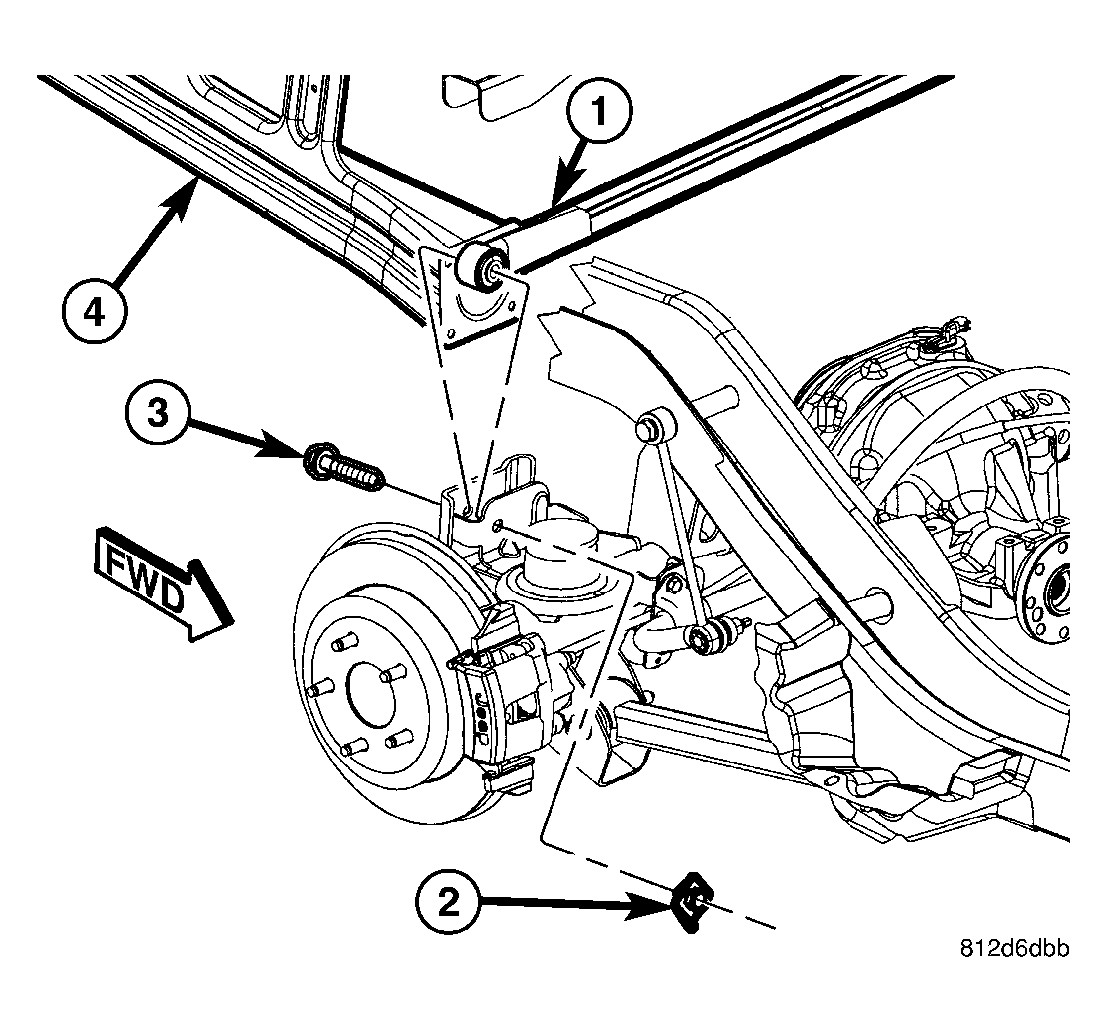

    Fig 12: Sway Bar Attach
    GC0027787Courtesy of DAIMLERCHRYSLER CORP.
  18. Remove the outer bolt (2 and 3) and disconnect the track bar (1).

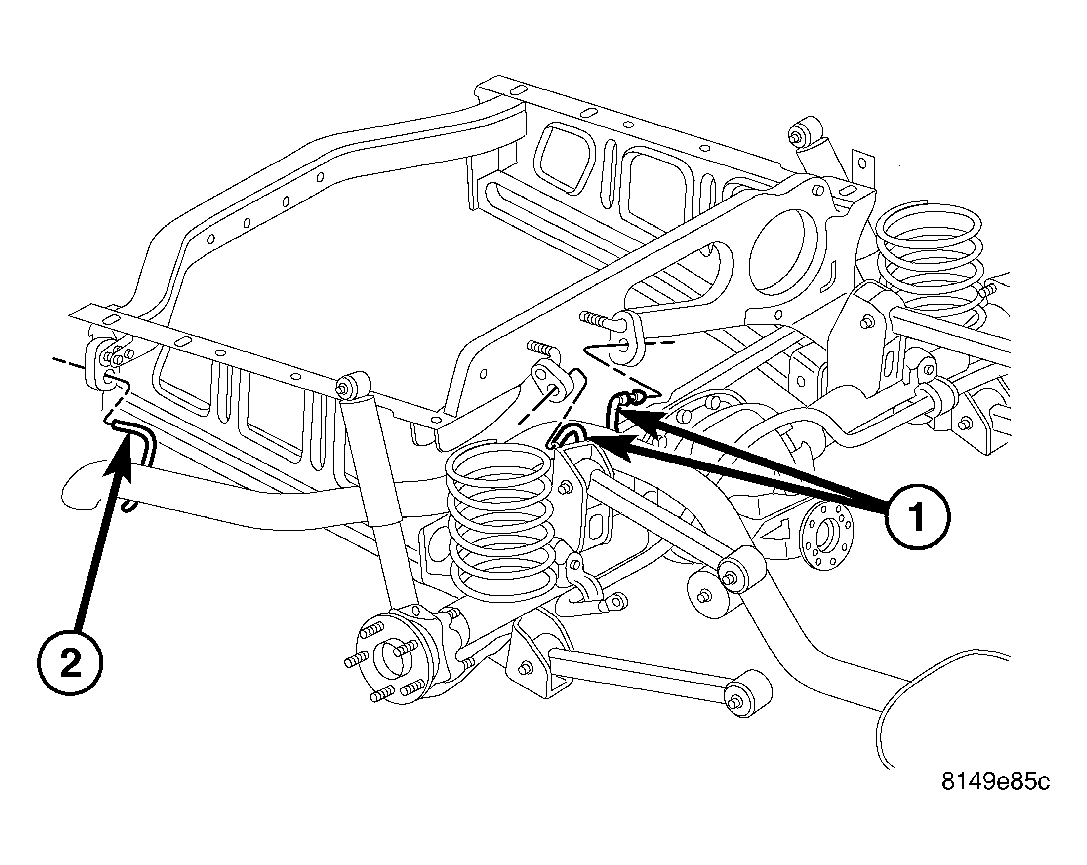

    Fig 13: Exhaust Hangers
    GC0027789Courtesy of DAIMLERCHRYSLER CORP.
  19. Separate the exhaust hangers (1 and 2) and support the exhaust.

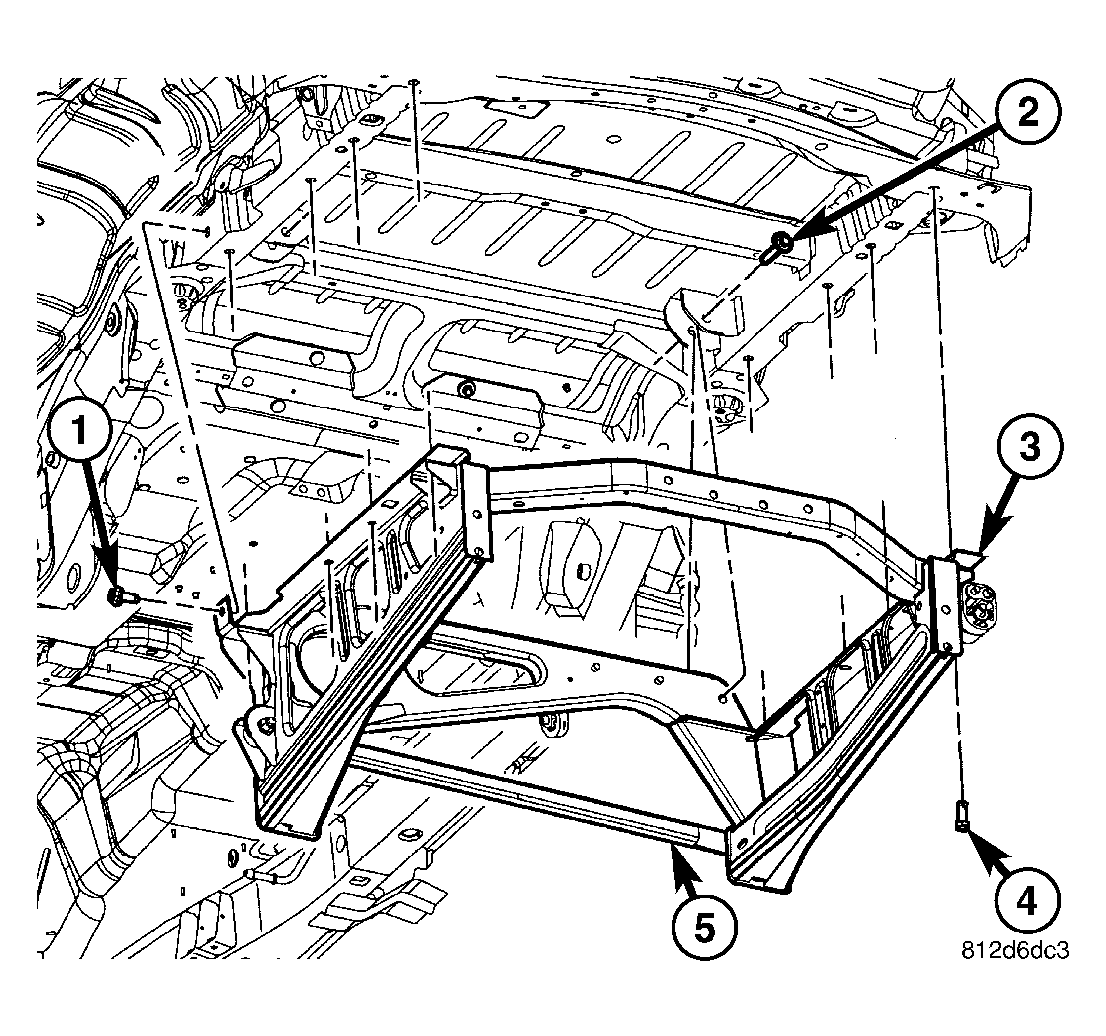

    Fig 14: Cradle
    GC0027788Courtesy of DAIMLERCHRYSLER CORP.
  20. Using a grease pencil or equivalent, mark the location of the body cradle (3) on the underbody to aid installation.
  21. Support the cradle (3) with a suitable lifting device.
  22. Remove the upper cradle bolts (2).
  23. Remove the side cradle bolt (1).
  24. Remove the rail bolts (4) and remove the cradle (3).
