Bracket-Front Fascia Mounting: Installation
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

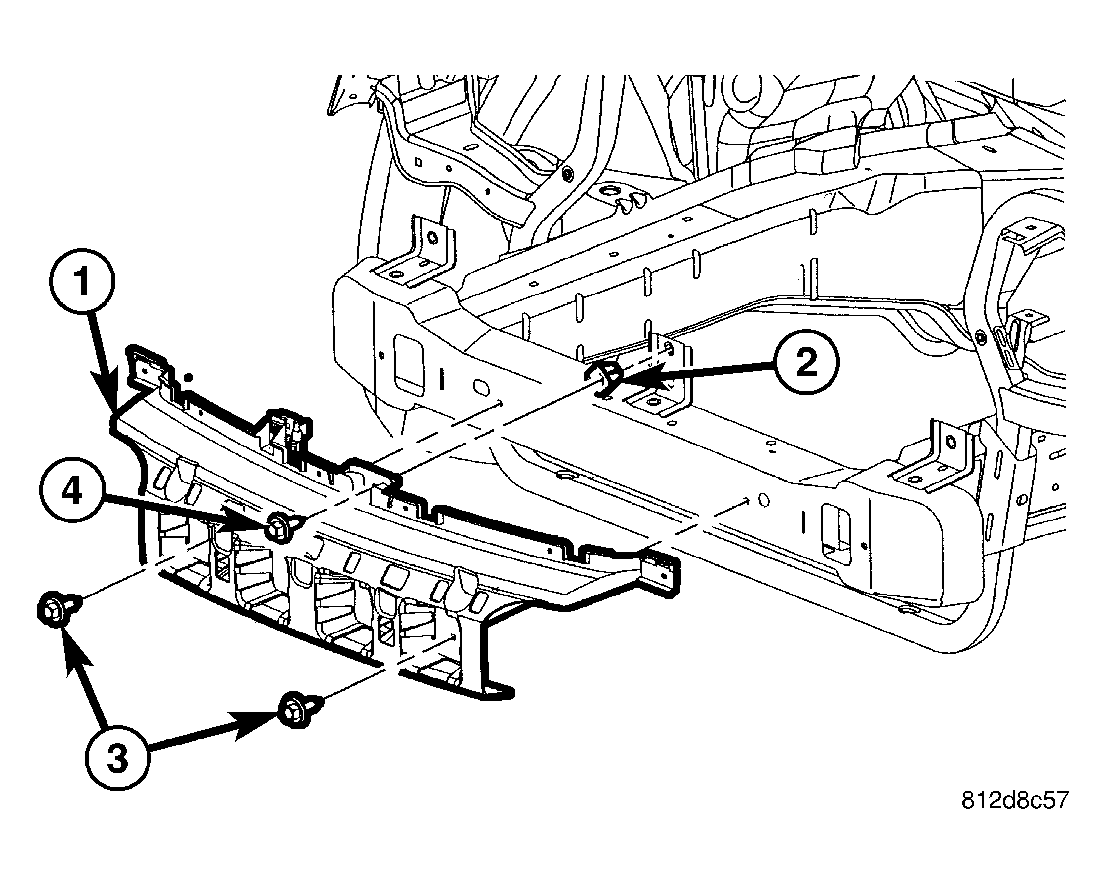

- Position the fascia mounting bracket (1) over the bumper beam,
- Install the push pin fasteners (4) and screws (3).
- Install the fascia. (Refer to FRAME & BUMPERS/BUMPERS/FRONT FASCIA - INSTALLATION)
