Section 585 (Instrument Cluster (Service Information)): Switch-Bank-Lower: Description

The Lower Instrument Panel Switch Pod on this model is available in six different configurations. They vary from a single switch configuration to a six switch configuration. The lower switch pod is located just below the HVAC control unit in the instrument panel center stack, Refer to each individual area of the service/diagnostic information for Description, Operation, Diagnosis, and Testing of the effected switch (I.E. Adjustable Pedals Switch - Brakes).

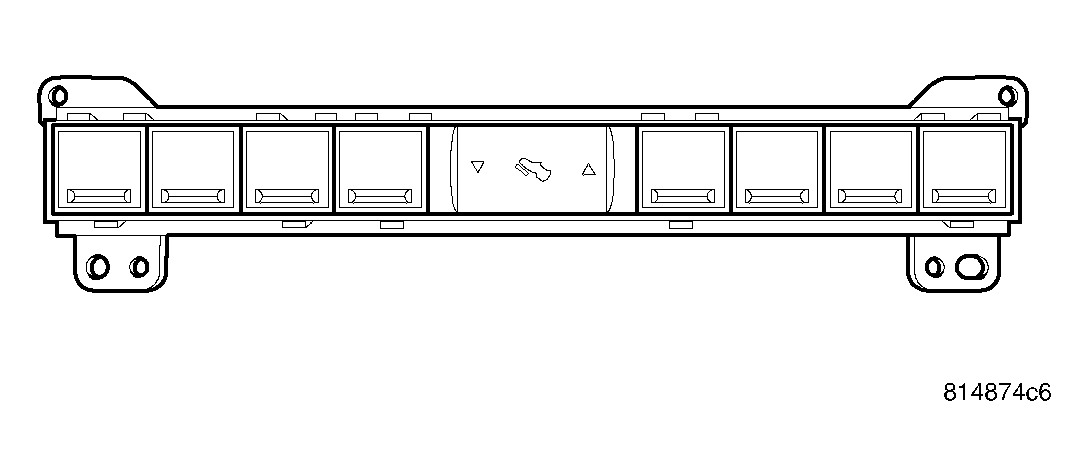

Fig 1: Lower Bank Switch

Courtesy of DAIMLERCHRYSLER CORP.

The one button switch configuration will include:

1. Adjustable Pedals Switch  - (Refer to BRAKES/ELECTRICAL/ADJUSTABLE PEDAL SWITCH - DESCRIPTION) .

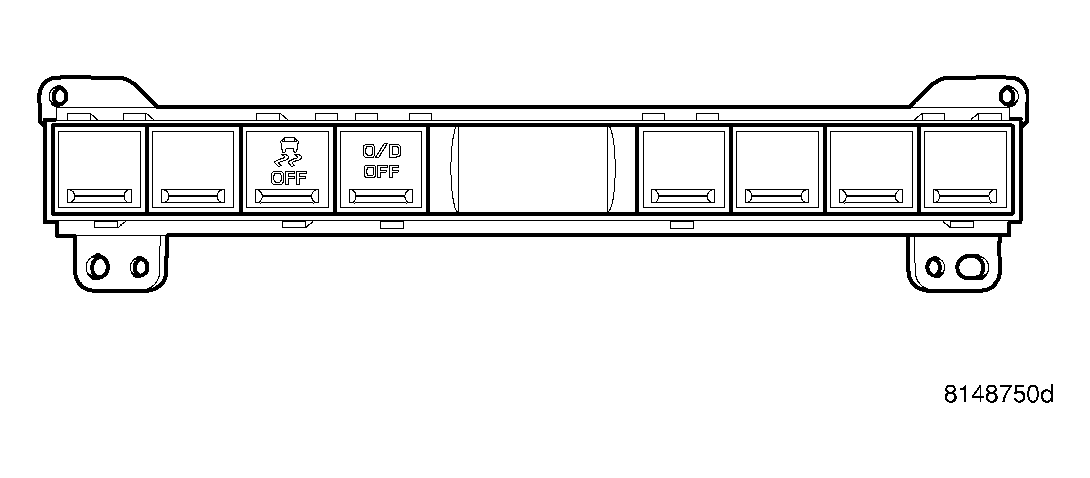

Fig 2: Lower Bank Switch - Two Button Switch Configuration

Courtesy of DAIMLERCHRYSLER CORP.

The two button switch configuration will include:

1. Adjustable Pedals Switch  - (Refer to BRAKES/ELECTRICAL/ADJUSTABLE PEDAL SWITCH - DESCRIPTION) .
2. Traction Control OFF Switch

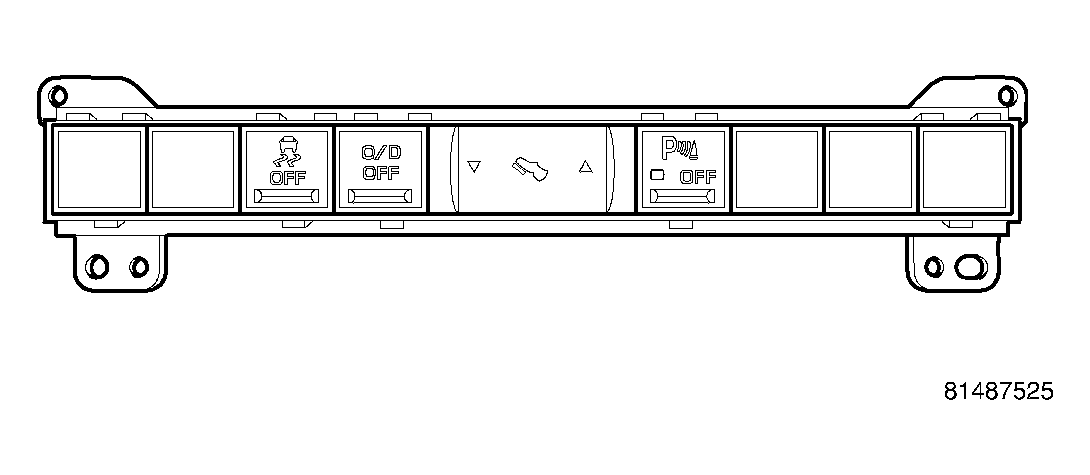

Fig 3: Lower Bank Switch - Two Button Switch Configuration

Courtesy of DAIMLERCHRYSLER CORP.

The three button switch configuration will include:

1. Adjustable Pedals Switch  - (Refer to BRAKES/ELECTRICAL/ADJUSTABLE PEDAL SWITCH - DESCRIPTION) .
2. Traction Control OFF Switch
3. Tow/Haul - Overdrive OFF Switch  - (Refer to SERVICE INFORMATION - 545RFE ).

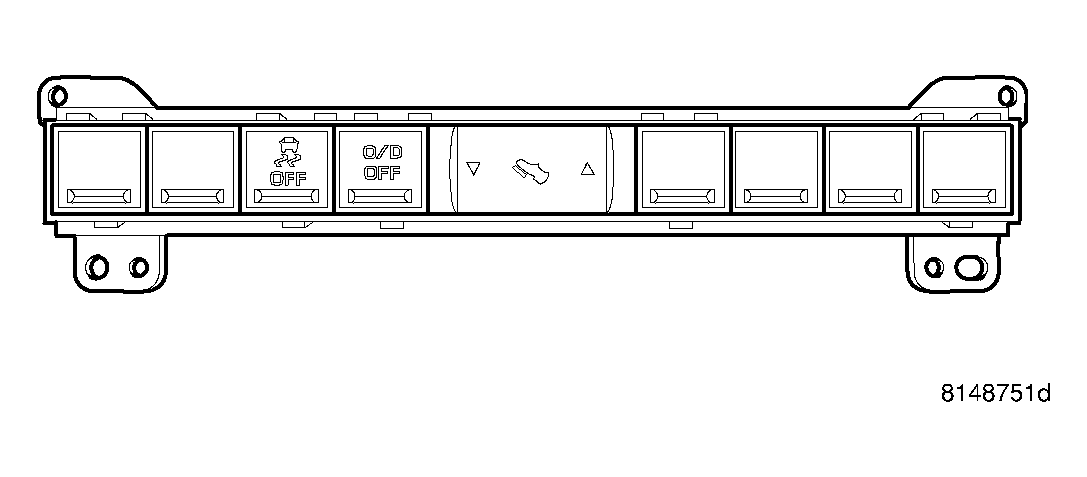

Fig 4: Lower Bank Switch - Three Button Switch Configuration

Courtesy of DAIMLERCHRYSLER CORP.

The four button switch configuration will include:

1. Adjustable Pedals Switch  - (Refer to BRAKES/ELECTRICAL/ADJUSTABLE PEDAL SWITCH - DESCRIPTION) .
2. Traction Control OFF Switch
3. Tow/Haul - Overdrive OFF Switch  - (Refer to SERVICE INFORMATION - 545RFE ).
4. Park Assist OFF Switch  - (Refer to ELECTRICAL/CHIME/BUZZER - DESCRIPTION) .

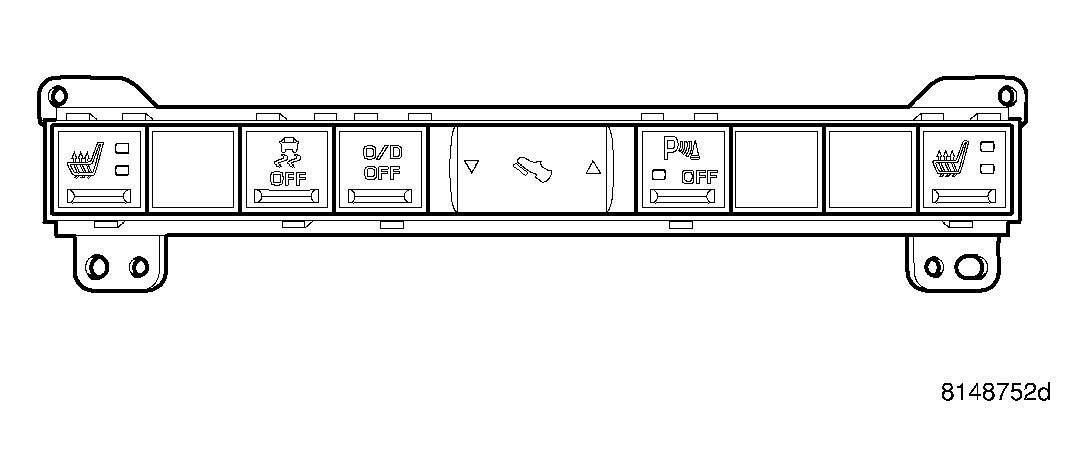

Fig 5: Lower Bank Switch - Four Button Switch Configuration

Courtesy of DAIMLERCHRYSLER CORP.

The four button switch configuration will include:

1. Adjustable Pedals Switch  - (Refer to BRAKES/ELECTRICAL/ADJUSTABLE PEDAL SWITCH - DESCRIPTION) .
2. Tow/Haul - Overdrive OFF Switch  - (Refer to SERVICE INFORMATION - 545RFE ).
3. Park Assist OFF Switch  - (Refer to ELECTRICAL/CHIME/BUZZER - DESCRIPTION) .
4. Heated Seat ON/OFF Switches  - (Refer to DESCRIPTION ).

Fig 6: Lower Bank Switch - Four Button Switch Configuration

Courtesy of DAIMLERCHRYSLER CORP.

The four button switch configuration will include:

1. Adjustable Pedals Switch  - (Refer to BRAKES/ELECTRICAL/ADJUSTABLE PEDAL SWITCH - DESCRIPTION) .
2. Traction Control OFF Switch
3. Tow/Haul - Overdrive OFF Switch  - (Refer to SERVICE INFORMATION - 545RFE ).
4. Park Assist OFF Switch  - (Refer to ELECTRICAL/CHIME/BUZZER - DESCRIPTION) .
5. Heated Seat ON/OFF Switches (2)  - (Refer to DESCRIPTION ).
