Adjustable Pedal Switch: Description

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

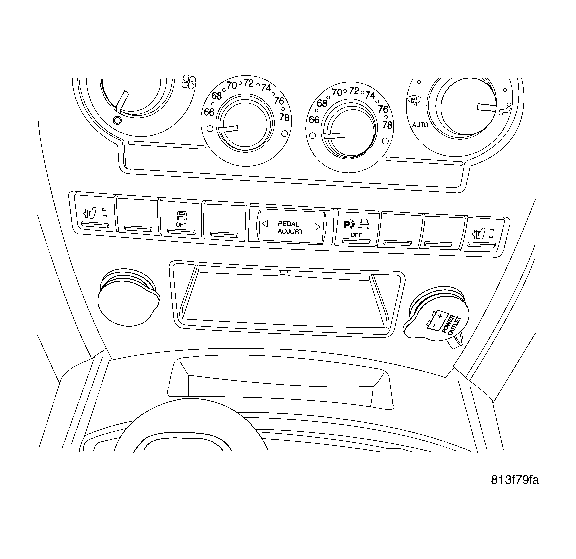

Fig 1: Adjustable Pedal Switch
GC0026801Courtesy of DAIMLERCHRYSLER CORP.

The adjustable pedals switch are mounted in the instrument panel. The switch is part of the lower instrument panel switch pod assembly. If the switch is damaged or inoperative the complete switch pod assembly must be replaced.

Pressing the switch will either move the pedals forward toward you or rearward away from you.
