Circuit Schematic

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

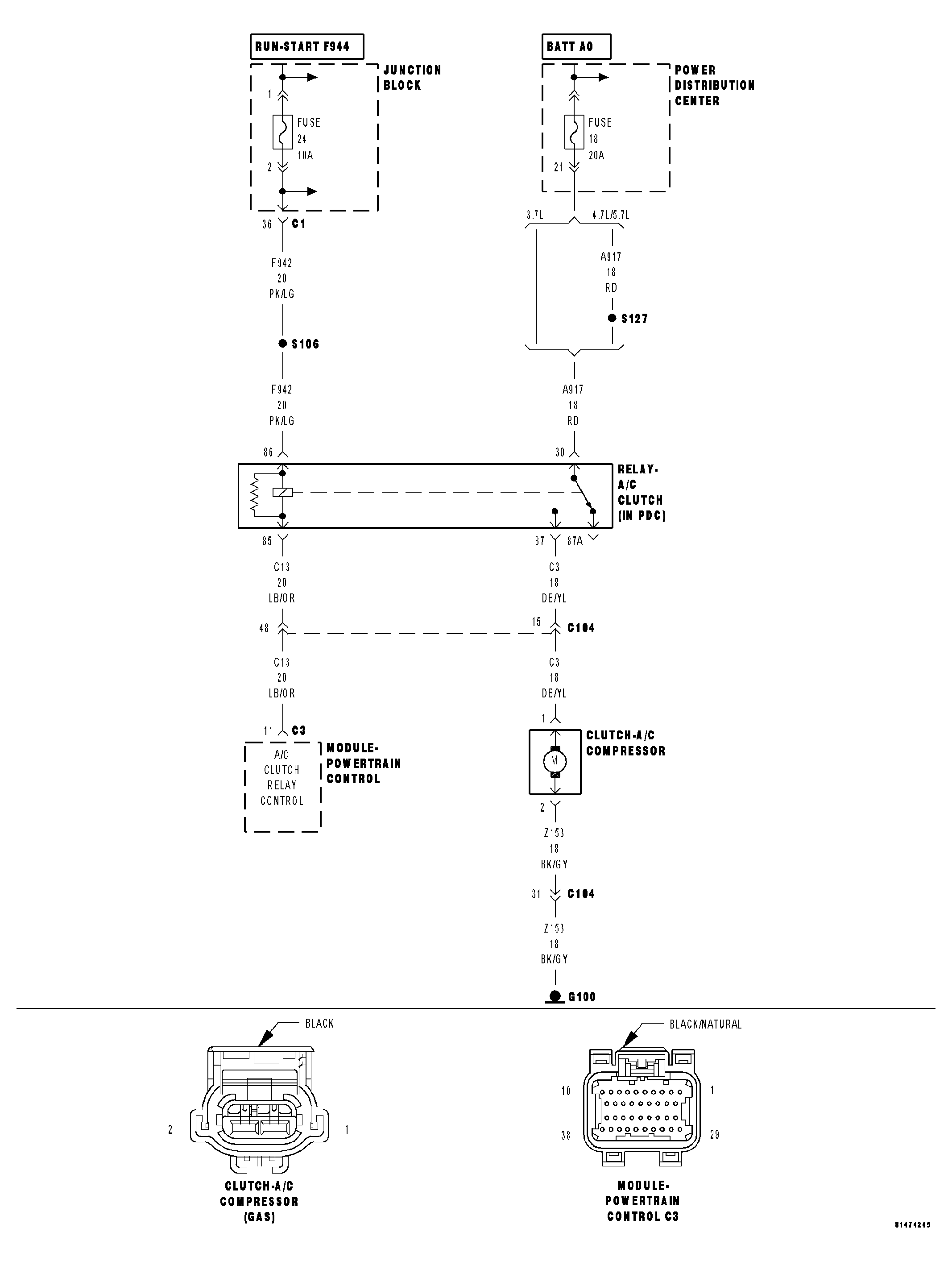

Fig 1: A/C Clutch Relay Circuit Schematic
GC0027181Courtesy of DAIMLERCHRYSLER CORP.

For the Engine circuit diagram (Refer to ENGINE - SCHEMATICS AND DIAGRAMS) .
