Schematics And Diagrams

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

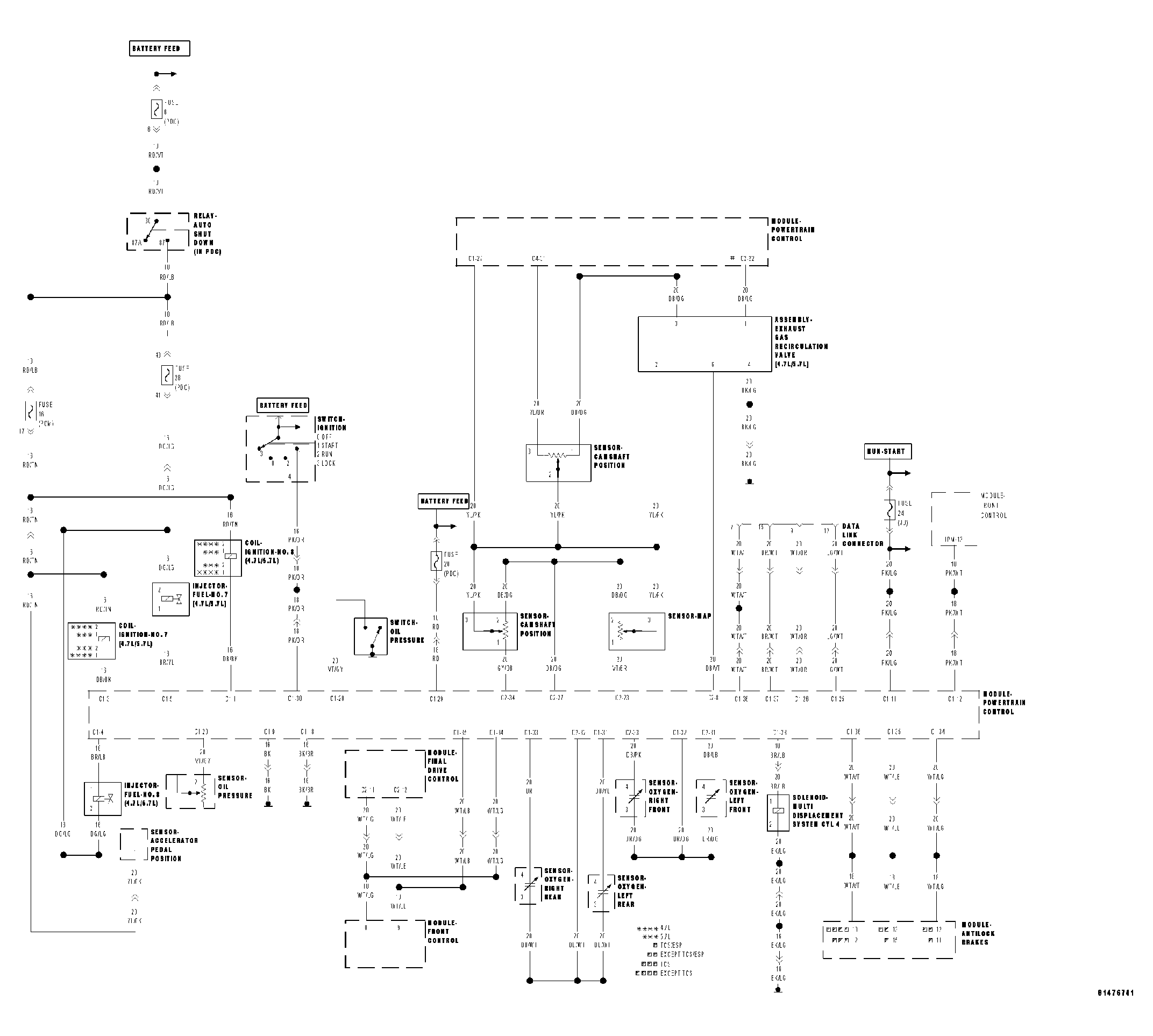

Fig 1: PCM C1 SYSTEM SCHEMATIC

Courtesy of DAIMLERCHRYSLER CORP.

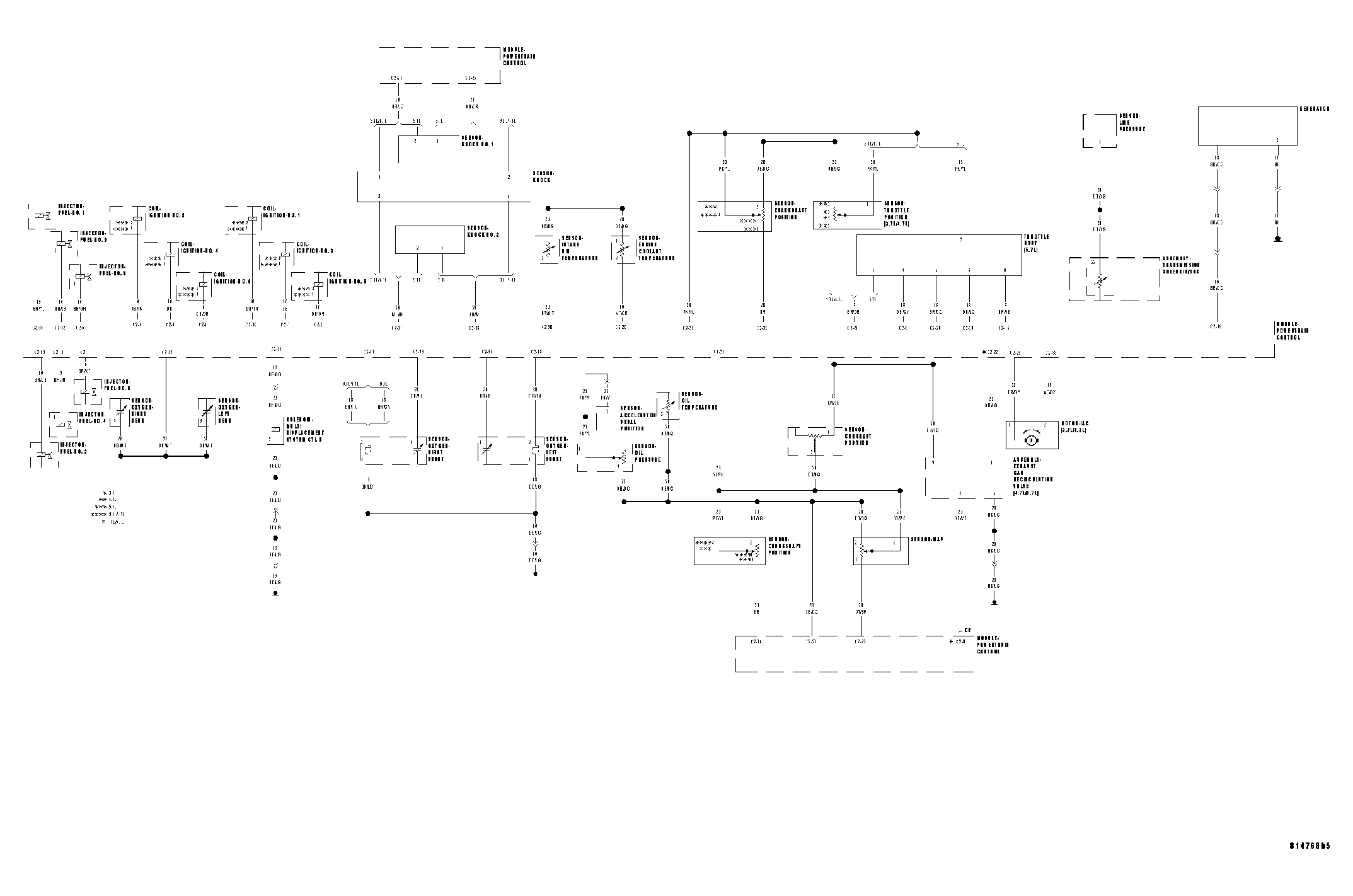

Fig 2: PCM C2 SYSTEM SCHEMATIC

Courtesy of DAIMLERCHRYSLER CORP.

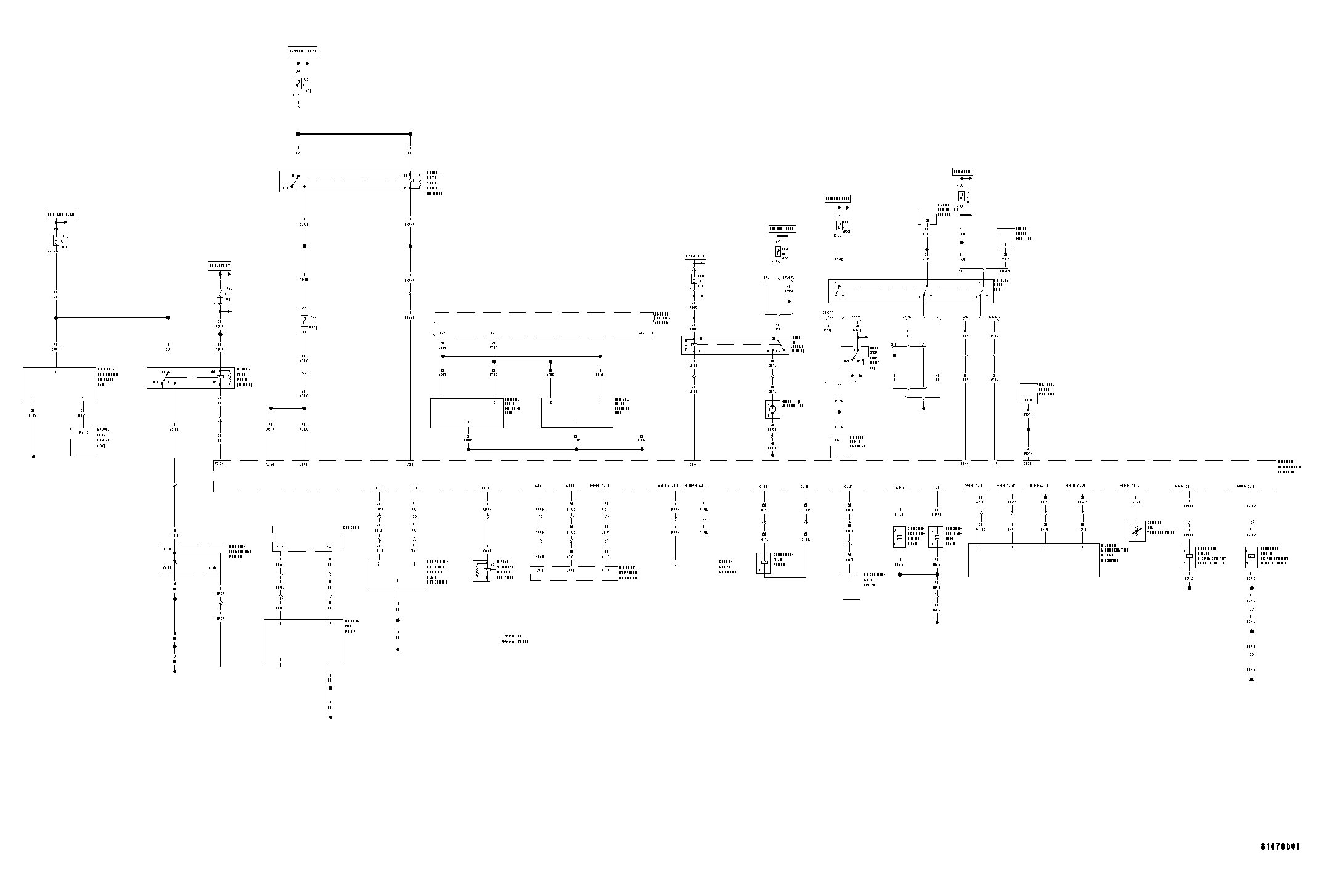

Fig 3: PCM C3 SYSTEM SCHEMATIC

Courtesy of DAIMLERCHRYSLER CORP.

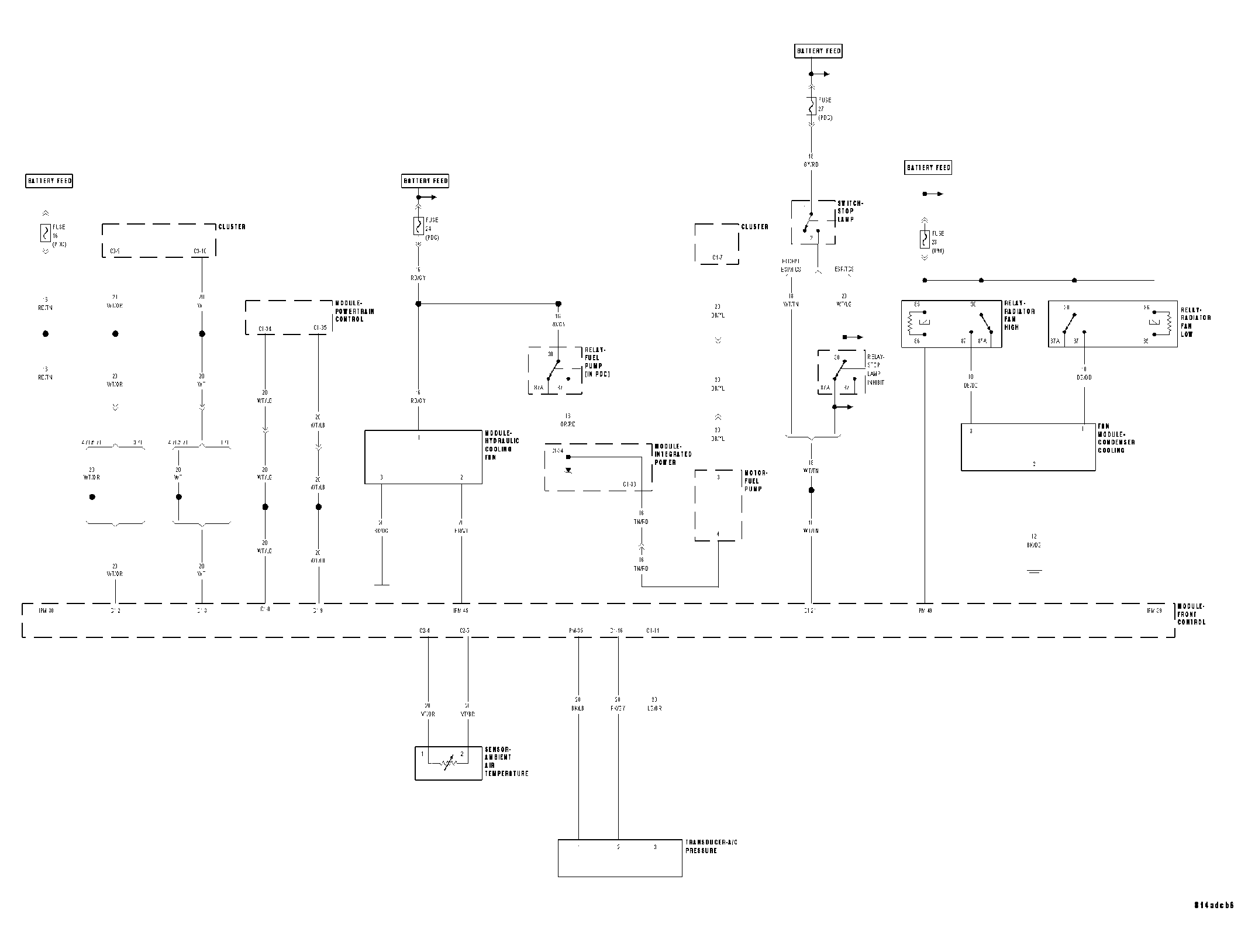

Fig 4: FCM SYSTEM SCHEMATIC

Courtesy of DAIMLERCHRYSLER CORP.
