Circuit Schematic

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

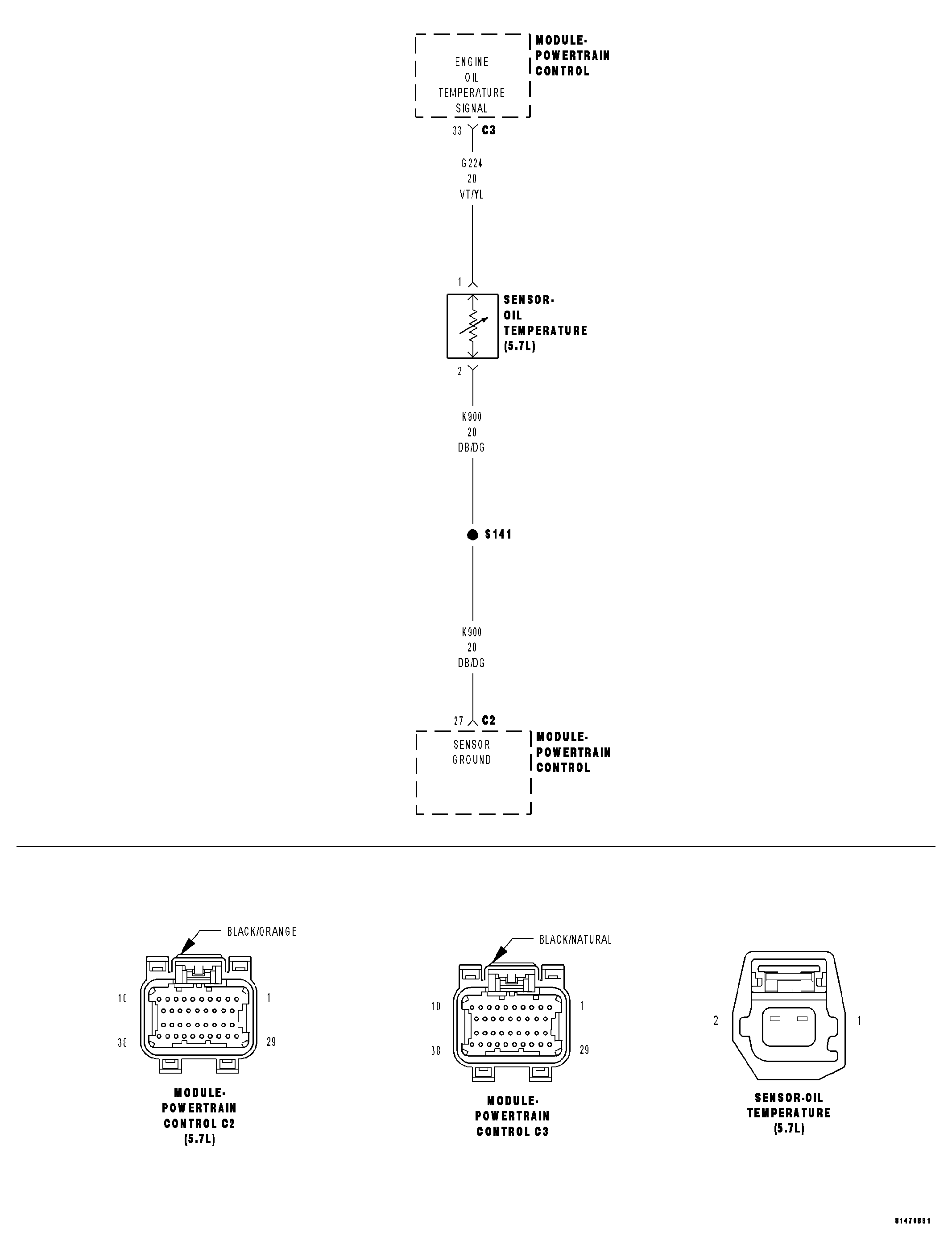

Fig 1: Engine Oil Temperature Sensor Circuit Schematic

Courtesy of DAIMLERCHRYSLER CORP.

For the Engine System Schematic circuit diagram.(Refer to ENGINE - SCHEMATICS AND DIAGRAMS) .
