Section 540 (Body - Interior & Exterior): Exterior: Fender: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Removing/Installing Liners
GC0027886Courtesy of DAIMLERCHRYSLER CORP.
  1. Mark fender location.
  2. Remove wheel if necessary.
  3. Remove wheel liner, (Refer to BODY/EXTERIOR/LF WHEELHOUSE SPLASH SHIELD - REMOVAL) .
  4. Remove front fascia as necessary, (Refer to FRAME & BUMPERS/BUMPERS/FRONT FASCIA - REMOVAL) .

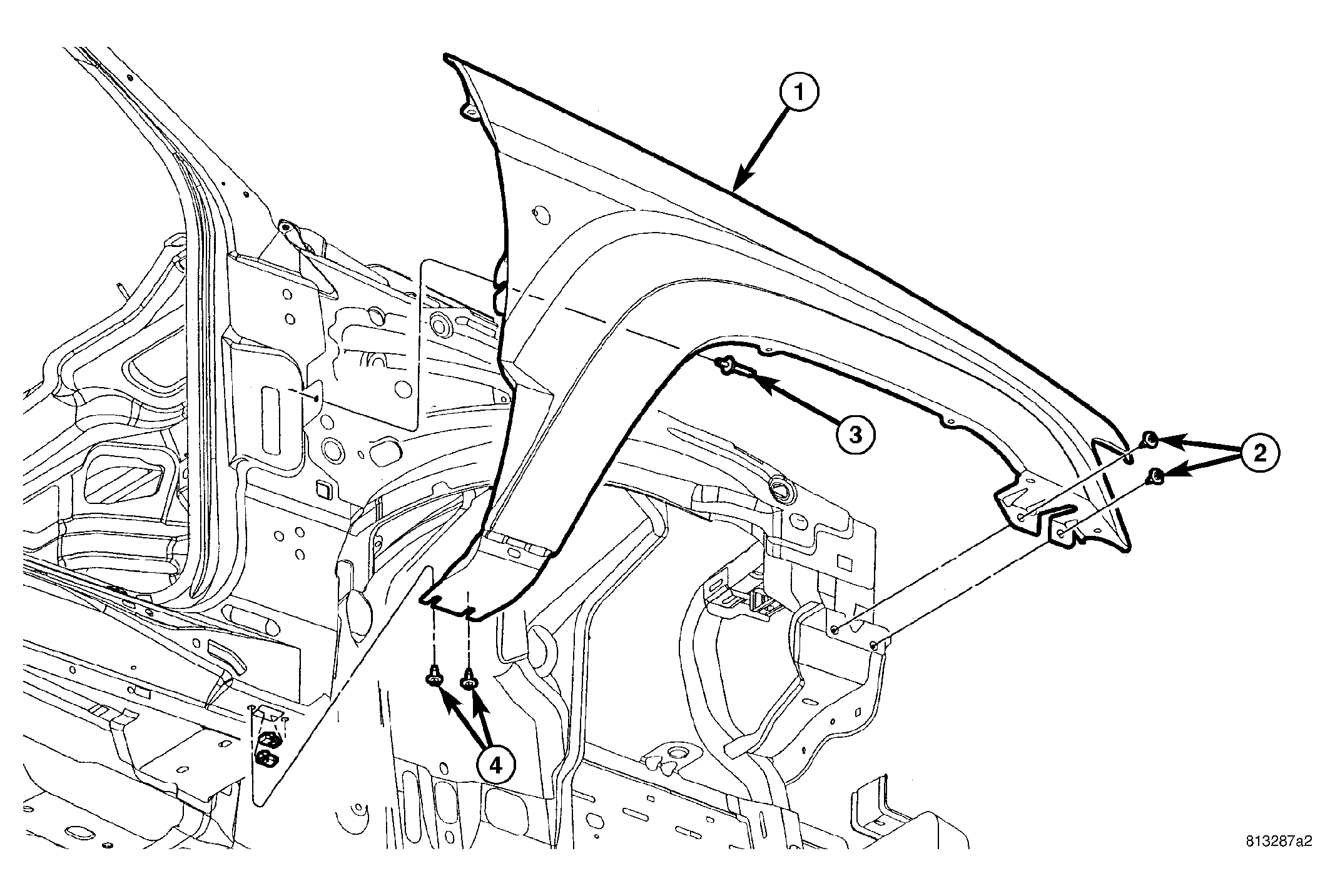

    Fig 2: Removing/Installing Lower Fender
    GC0027885Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove front lower mounting bolts.
  6. Loosen rocker panel cover as necessary.
  7. Remove rear lower mounting bolts.

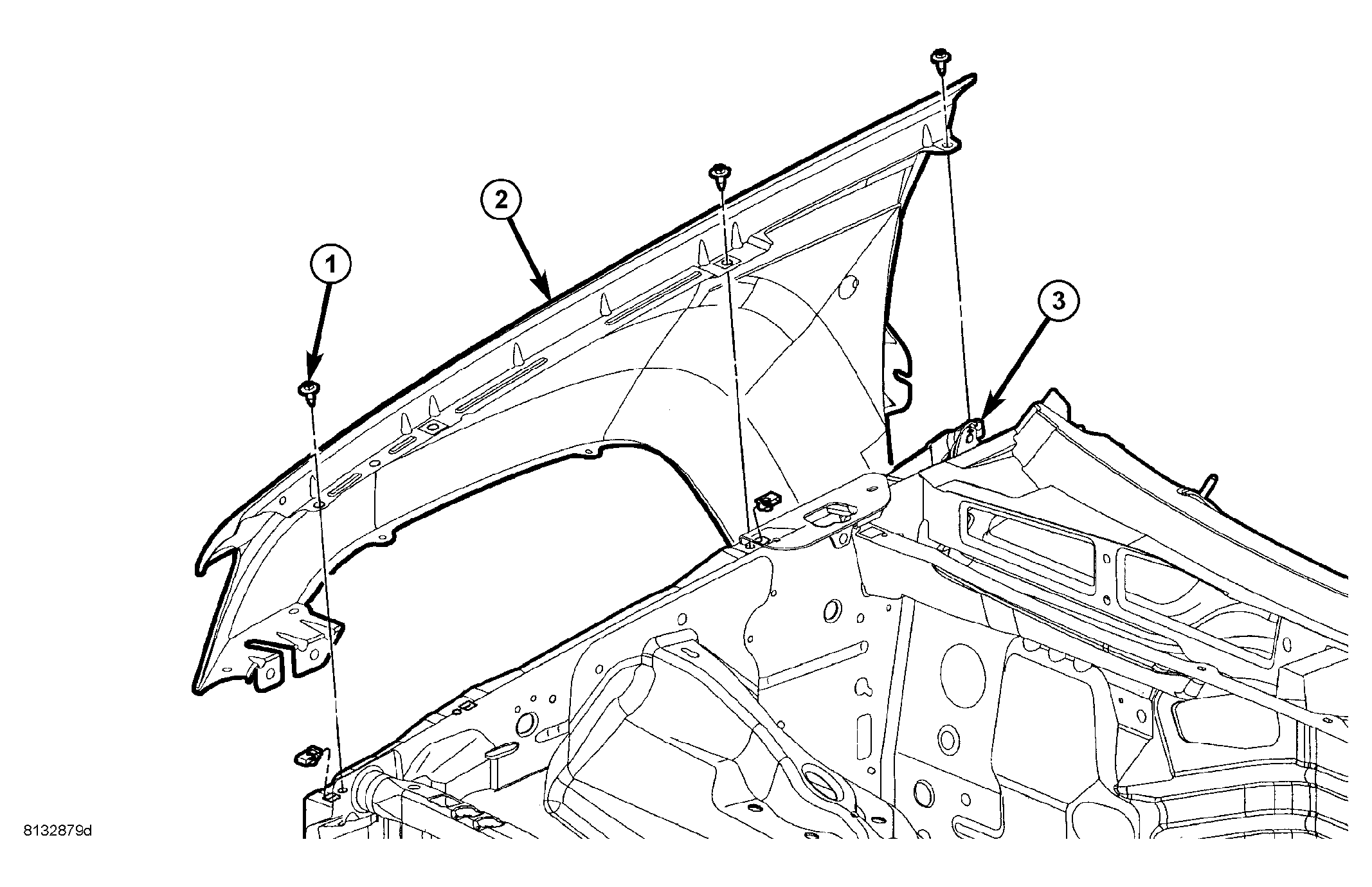

    Fig 3: Removing/Installing Upper Fender
    GC0027884Courtesy of DAIMLERCHRYSLER CORP.
  8. Remove upper fender mounting bolts.
  9. Remove fender from vehicle.
