Section 540 (Body - Interior & Exterior): Exterior: CROSSMEMBER-Radiator: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

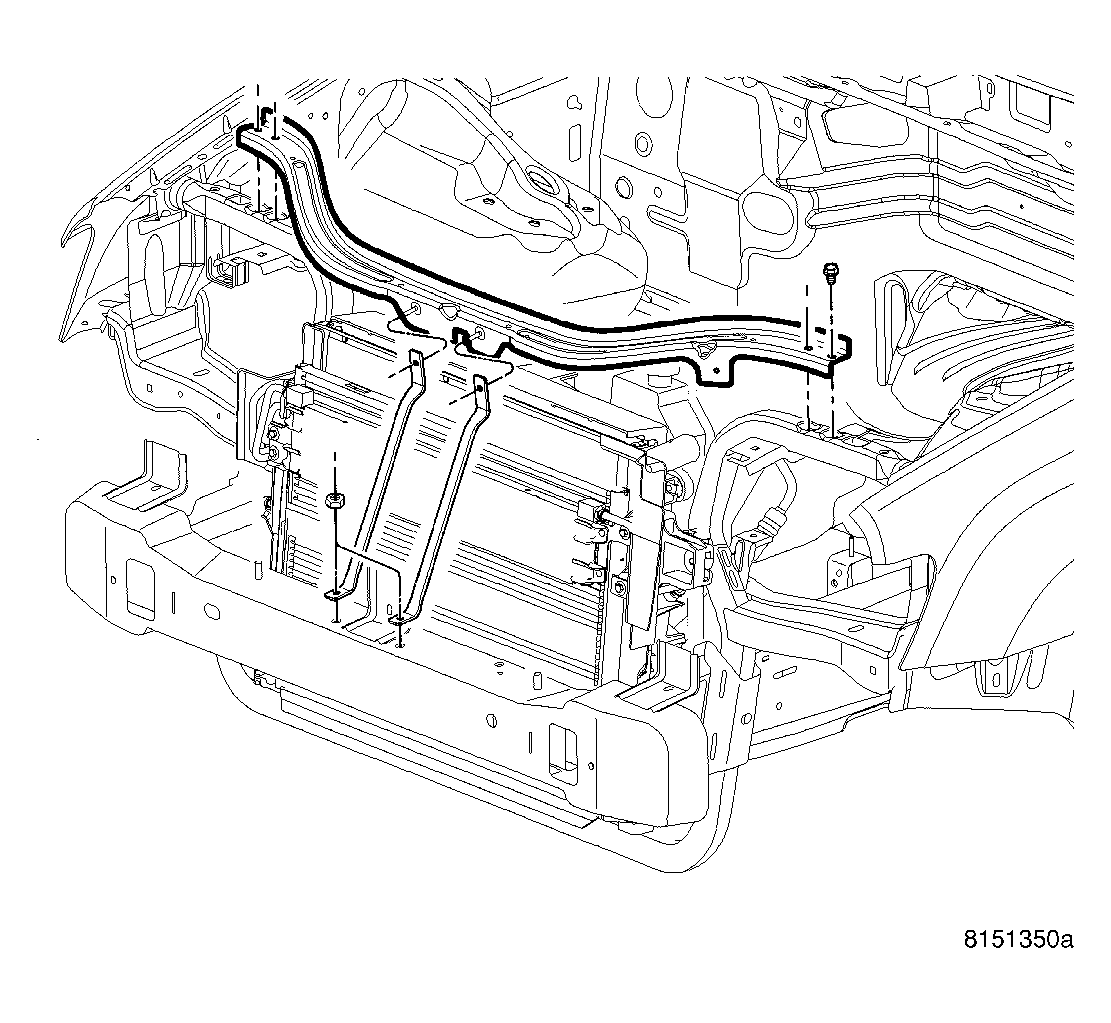

Fig 1: Identifying Radiator Crossmember
GC0027883Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the grill assembly, (Refer to BODY/EXTERIOR/GRILLE - REMOVAL) .
  2. Remove the front hood seal.
  3. Remove the center brace mounting nuts and remove hood latch.
  4. Remove the outer crossmember mounting bolts.
  5. Remove crossmember.
