Section 540 (Body - Interior & Exterior): Exterior: Grille: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

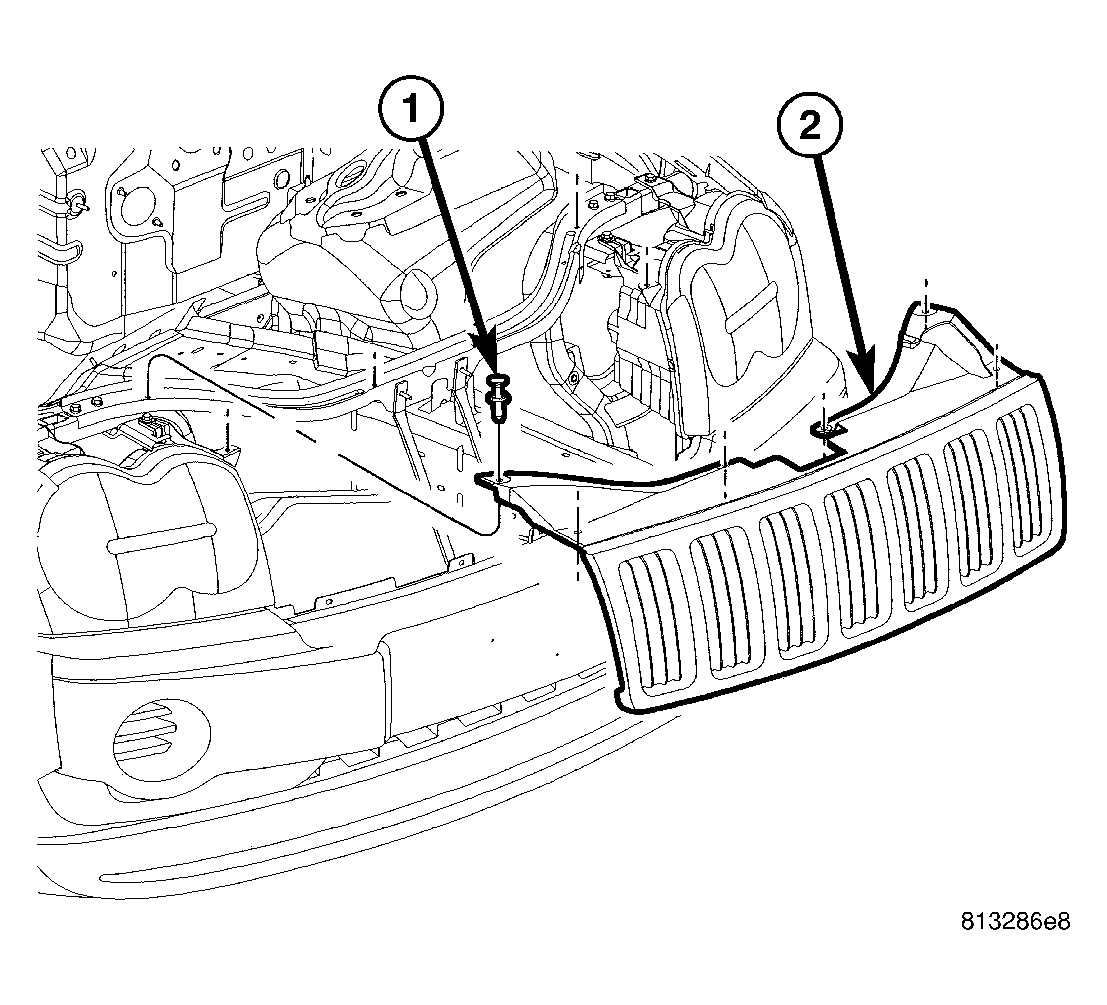

Fig 1: Removing/Installing Grille
GC0027887Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the 6 upper push pins (1).
  2. Tip grill forward and remove grill (2).
